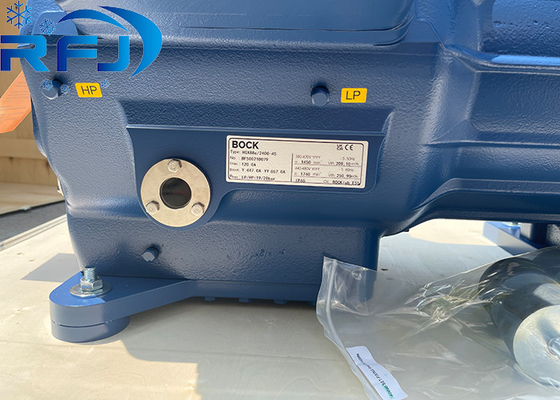

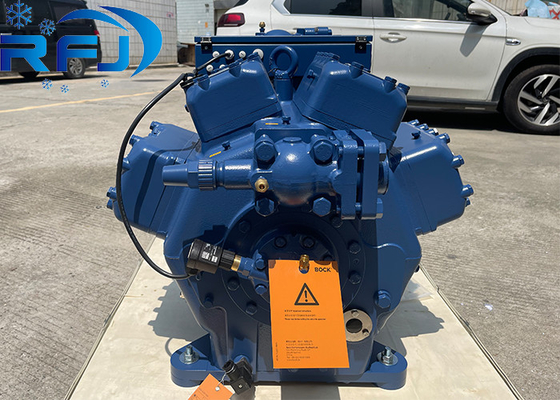

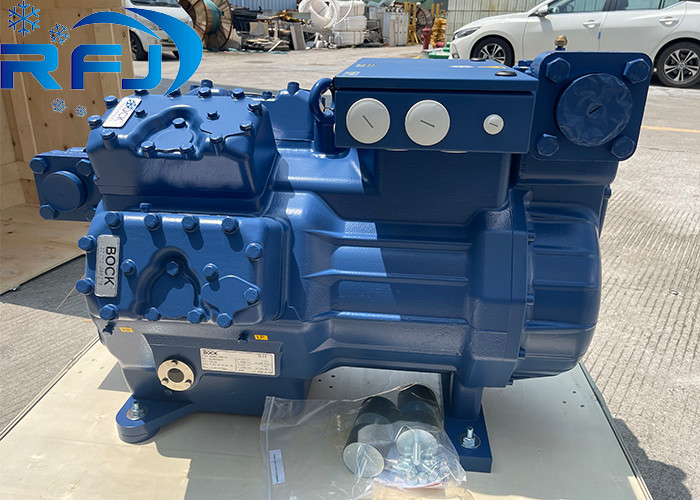

GEA Bock Semi Hermetic Compressor HGX88e/2400-4S For Cold Room

GEA Bock Semi Hermetic Compressor HGX88e/2400-4S For Cold Room
Place of Origin:Gremany
Brand Name:Bock
Certification:CE/RoHS/UR58953
Model Number:HGX88e/2400-4S
Minimum Order Quantity:1
Price:1-8000
Standard Packaging:WOODEN CASE
Delivery Time:1 MONTH
Payment Terms:T/T, Western Union
Supply Ability:100PC
Tags:

refrigerator compressor

semi hermetic reciprocating compressor

semi hermetic compressor
Product Details
Highlight:

Cold Room Semi Sealed Compressor

,

GEA Bock Semi Hermetic Compressor

,

Semi Hermetic Compressor HGX88e/2400-4S
Name: Bock Compressor
Type: Semi-Hermetic
Voltage: 400V/3PH/50Hz
Refrigerant: R22/R404A/R407C
Application: Refrigeration
Applicable In Dustries: Sea Vessel; Beverage Factory; Refrigerated Industry
Service: 100% Original Brand New
Warranty: 1 Year
After-Sales Service Provided: Online Support
Color: Blue
Product Description
Detailed Specifications & Features
GEA Bock Semi Hermetic Compressor HGX88e/2400-4S For Cold Room.

Specification Of Refrigeration Compressor



Type Semi Hermetic Compressor
Model HG88e/2400-4S
Horse Power 81.6
Voltage 380V-420V, 440V-480V
Refrigerant R410A/R134a/R404A/R407C/R22
Displacement(m3/h) 50Hz/60Hz 209.1/250.9
Oil Charge(L) 9
Cylinder 8
Color Blue
Net Weight 452 KG
Packing Wooden Case
MOQ 1 PCS





Feature:

1. Versatility
One compressor can use multiple standard refrigerants, such as: R134a, R404a, R507, R407C, R22 are
suitable for air conditioning, general refrigeration and cryogenic freezing applications. The maximum a
llowable operating pressure is 28Bar.

2. High energy efficiency
Optimized airflow channel;
Efficient inspection valve;
minimum clearance volume;
Powerful energy-saving motor.

3. Wide range of applications, no need to add cooling
The suction cooling compressor (HG type) uses R404a, and R507 can be used for cryogenic refrigeration.

4. Reliable valve plate design
World-recognized valve plate design, both suction and exhaust valves are tongue-shaped, fixed on one side
Valve plate material is high-quality impact-resistant spring steel.

5. Motor maintenance
Compressor with field replaceable motor

6. Economical and practical energy regulation
The reserved interface on the cylinder head is installed with the energy regulating device
Achievable energy adjustment range: 4 cylinders: 50%; 6 cylinders: 33%/66%; 8 cylinders: 25%/50%/75%.
Stepless speed regulation (25--70HZ) can be realized by using an external frequency converter EFC/EFCe.

7. Minimum installation space requirements
Particularly small installation height and width.

8. Quiet and low vibration
Large size crankshaft
best dynamic balance
Large-volume exhaust chamber, effective vibration and noise reduction
4 cylinders are available starting from 19m³/h displacement.



GEA Bock Semi Hermetic Compressor HGX88e/2400-4S For Cold Room
FAQ
 Q: What is your delivery time?
 A: The time of delivery is 3-10 working days after payment.

 Q: What is your main brands?
 A: , Danfoss, Bitzer, Bock, Bristol, Carel, Carrier, Daikin, Embraco, Emerson, Frascold, Fusheng, GMCC, LG, Hanbell, Misubishi,   Refcomp, Panasonic, Secop, Sporlan, Saginomiya

 Q: What is the price?
 A: Pls contact me get the best price.
