| Model Number: | ZR144KCE-TFD-52E |
| MOQ: | 1pcs |
| Price: | discussed |
| Delivery Time: | 7-10 working days after receiving payment |
| Payment Terms: | L/C,T/T,Western Union |

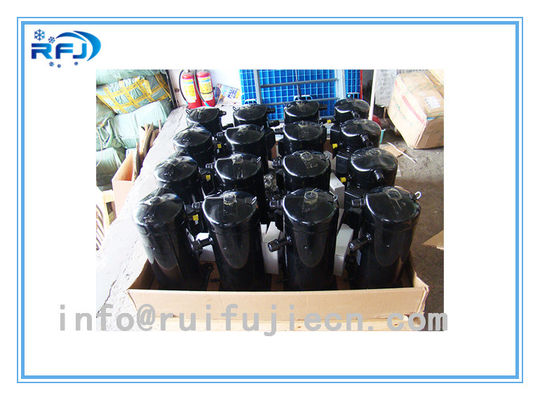

Refrigeration 12HP Scroll Compressor ZR144K3 for Air Conditioner
With reliable performance, superior efficiency, quiet operation, and diagnostic capability, Emerson Climate Technologies offers the most advanced scroll technology available to support your commercial air-conditioning needs. With the widest R-410A selection available, the Scroll™ compressor offering ranges from 2-40 HP in singles and up to 80 HP in tandems.
| Model NO. | Cooling Capacity (rating point 7.2) | Nominal HP | Displ. cc/rev | Nom Current FLa | Weight (Kg) |
|---|---|---|---|---|---|
| ZR22K3-PFJ-522 | 5240 | 1.83 | 30.7 | 9.6 | 26 |
| ZR28K3-PFJ-522 | 6970 | 2.33 | 39.2 | 12.9 | 27.3 |
| ZR28K3E-PFJ-522 | 6970 | 2.33 | 39.2 | 12.9 | 27.3 |
| ZR34K3-PFJ-522 | 8260 | 2.83 | 46.1 | 13.6 | 29.5 |
| ZR34K3E-PFJ-522 | 8260 | 2.83 | 46.1 | 13.6 | 29.5 |
| ZR36K3-PFJ-522 | 8850 | 3 | 49.5 | 16.4 | 29.5 |
| ZR40K3-PFJ-522 | 9620 | 3.33 | 54.19 | 17.1 | 32 |
| ZR42K3-PFJ-522 | 10140 | 3.5 | 56.8 | 17.1 | 30 |
| ZR47K3-PFJ-522 | 11500 | 3.9 | 64.1 | 19.3 | 32.6 |
| ZR68KC-PFJ-522 | 16800 | 5.75 | 93 | 28.2 | 43.5 |
| ZR28K3-TFD-522 | 6970 | 2.33 | 39.2 | 5 | 26 |
| ZR28K3E-TFD-522 | 6970 | 2.33 | 39.2 | 5 | 26 |
| ZR36K3-TFD-522 | 8850 | 3 | 49.5 | 5.7 | 29.5 |
| ZR40K3-TFD-522 | 9260 | 3.33 | 51.2 | 6.4 | 32 |
| ZR47KC-TFD-522 | 11400 | 3.9 | 63.2 | 7.2 | 32.6 |
| ZR47KCE-TFD-522 | 11400 | 3.9 | 63.2 | 7.2 | 32.6 |
| ZR48KC-TFD-522 | 11500 | 4.1 | 67.2 | 7.5 | 38 |
| ZR48KCE-TFD-522 | 11500 | 4.1 | 67.2 | 7.5 | 38 |
| ZR54KC-TFD-522 | 13000 | 4.5 | 73.2 | 8.2 | 35.5 |
| ZR57KC-TFD-522 | 13660 | 4.75 | 76.9 | 8.2 | 36 |
| ZR57KCE-TFD-522 | 13660 | 4.75 | 76 | 8.2 | 36 |
| ZR61KC-TFD-522 | 14700 | 5 | 82.4 | 10 | 35.9 |
| ZR61KCE-TFD-522 | 14700 | 5 | 82.4 | 10 | 35.9 |
| ZR68KC-TFD-522 | 16500 | 5.75 | 93 | 10 | 38.2 |
| ZR72KC-TFD-522 | 17800 | 6 | 98 | 10 | 38.2 |
| ZR72KCE-TFD-522 | 17800 | 6 | 98 | 10 | 38.2 |
| ZR81KC-TFD-522 | 19800 | 6.75 | 110.6 | 12 | 40 |
| ZR81KCE-TFD-522 | 19800 | 6.75 | 110.6 | 12 | 40 |
| ZR94KC-TFD-522 | 23000 | 8 | 127.2 | 16.2 | 59 |
| ZR94KC-TFD-523 | 23200 | 8 | 127.2 | 16.2 | 58.2 |
| ZR94KCE-TFD-523 | 23200 | 8 | 127.2 | 16.2 | 58.2 |
| ZR108KC-TFD-522 | 26670 | 9 | 147.5 | 17.3 | 64 |
| ZR108KCE-TFD-523 | 26670 | 9 | 147.5 | 17.3 | 64 |
| ZR108KC-TFD-523 | 26900 | 9 | 144.5 | 17.3 | 62.7 |
| ZR125KC-TFD-522 | 30660 | 10 | 171.4 | 19.2 | 64 |
| ZR125KCE-TFD-523 | 31000 | 10 | 165.6 | 19.2 | 62.7 |
| ZR125KC-TFD-523 | 31000 | 10 | 165.6 | 19.2 | 62.7 |
| ZR144KC-TFD-522 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR144KCE-TFD-523 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR144KC-TFD-523 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR16M3-TWD-551 | 37700 | 13 | 204.3 | 25 | 103.1 |
| ZR16M3E-TWD-551 | 37700 | 13 | 204.3 | 17.3 | 103 |
| ZR19M3-TWD-551 | 45900 | 15 | 241.9 | 23.8 | 112.1 |
| ZR19M3E-TWD-551 | 45900 | 15 | 241.9 | 23.8 | 119 |
|
|
| Model Number: | ZR144KCE-TFD-52E |
| MOQ: | 1pcs |
| Price: | discussed |
| Packaging Details: | Wooden case or 12 units in one pallet |
| Payment Terms: | L/C,T/T,Western Union |
Refrigeration 12HP Scroll Compressor ZR144K3 for Air Conditioner
With reliable performance, superior efficiency, quiet operation, and diagnostic capability, Emerson Climate Technologies offers the most advanced scroll technology available to support your commercial air-conditioning needs. With the widest R-410A selection available, the Scroll™ compressor offering ranges from 2-40 HP in singles and up to 80 HP in tandems.
| Model NO. | Cooling Capacity (rating point 7.2) | Nominal HP | Displ. cc/rev | Nom Current FLa | Weight (Kg) |
|---|---|---|---|---|---|
| ZR22K3-PFJ-522 | 5240 | 1.83 | 30.7 | 9.6 | 26 |
| ZR28K3-PFJ-522 | 6970 | 2.33 | 39.2 | 12.9 | 27.3 |
| ZR28K3E-PFJ-522 | 6970 | 2.33 | 39.2 | 12.9 | 27.3 |
| ZR34K3-PFJ-522 | 8260 | 2.83 | 46.1 | 13.6 | 29.5 |
| ZR34K3E-PFJ-522 | 8260 | 2.83 | 46.1 | 13.6 | 29.5 |
| ZR36K3-PFJ-522 | 8850 | 3 | 49.5 | 16.4 | 29.5 |
| ZR40K3-PFJ-522 | 9620 | 3.33 | 54.19 | 17.1 | 32 |
| ZR42K3-PFJ-522 | 10140 | 3.5 | 56.8 | 17.1 | 30 |
| ZR47K3-PFJ-522 | 11500 | 3.9 | 64.1 | 19.3 | 32.6 |
| ZR68KC-PFJ-522 | 16800 | 5.75 | 93 | 28.2 | 43.5 |
| ZR28K3-TFD-522 | 6970 | 2.33 | 39.2 | 5 | 26 |
| ZR28K3E-TFD-522 | 6970 | 2.33 | 39.2 | 5 | 26 |
| ZR36K3-TFD-522 | 8850 | 3 | 49.5 | 5.7 | 29.5 |
| ZR40K3-TFD-522 | 9260 | 3.33 | 51.2 | 6.4 | 32 |
| ZR47KC-TFD-522 | 11400 | 3.9 | 63.2 | 7.2 | 32.6 |
| ZR47KCE-TFD-522 | 11400 | 3.9 | 63.2 | 7.2 | 32.6 |
| ZR48KC-TFD-522 | 11500 | 4.1 | 67.2 | 7.5 | 38 |
| ZR48KCE-TFD-522 | 11500 | 4.1 | 67.2 | 7.5 | 38 |
| ZR54KC-TFD-522 | 13000 | 4.5 | 73.2 | 8.2 | 35.5 |
| ZR57KC-TFD-522 | 13660 | 4.75 | 76.9 | 8.2 | 36 |
| ZR57KCE-TFD-522 | 13660 | 4.75 | 76 | 8.2 | 36 |
| ZR61KC-TFD-522 | 14700 | 5 | 82.4 | 10 | 35.9 |
| ZR61KCE-TFD-522 | 14700 | 5 | 82.4 | 10 | 35.9 |
| ZR68KC-TFD-522 | 16500 | 5.75 | 93 | 10 | 38.2 |
| ZR72KC-TFD-522 | 17800 | 6 | 98 | 10 | 38.2 |
| ZR72KCE-TFD-522 | 17800 | 6 | 98 | 10 | 38.2 |
| ZR81KC-TFD-522 | 19800 | 6.75 | 110.6 | 12 | 40 |
| ZR81KCE-TFD-522 | 19800 | 6.75 | 110.6 | 12 | 40 |
| ZR94KC-TFD-522 | 23000 | 8 | 127.2 | 16.2 | 59 |
| ZR94KC-TFD-523 | 23200 | 8 | 127.2 | 16.2 | 58.2 |
| ZR94KCE-TFD-523 | 23200 | 8 | 127.2 | 16.2 | 58.2 |
| ZR108KC-TFD-522 | 26670 | 9 | 147.5 | 17.3 | 64 |
| ZR108KCE-TFD-523 | 26670 | 9 | 147.5 | 17.3 | 64 |
| ZR108KC-TFD-523 | 26900 | 9 | 144.5 | 17.3 | 62.7 |
| ZR125KC-TFD-522 | 30660 | 10 | 171.4 | 19.2 | 64 |
| ZR125KCE-TFD-523 | 31000 | 10 | 165.6 | 19.2 | 62.7 |
| ZR125KC-TFD-523 | 31000 | 10 | 165.6 | 19.2 | 62.7 |
| ZR144KC-TFD-522 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR144KCE-TFD-523 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR144KC-TFD-523 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR16M3-TWD-551 | 37700 | 13 | 204.3 | 25 | 103.1 |
| ZR16M3E-TWD-551 | 37700 | 13 | 204.3 | 17.3 | 103 |
| ZR19M3-TWD-551 | 45900 | 15 | 241.9 | 23.8 | 112.1 |
| ZR19M3E-TWD-551 | 45900 | 15 | 241.9 | 23.8 | 119 |
