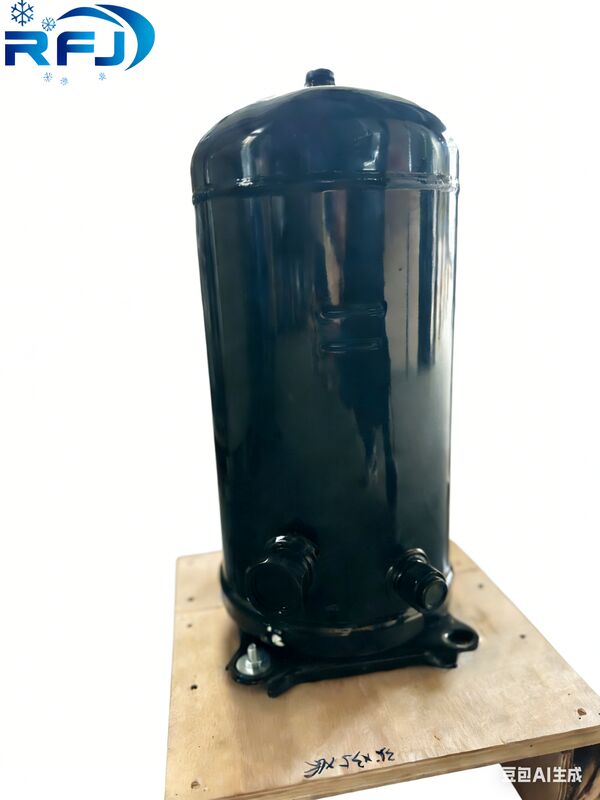

Air Conditioner 10HP Refrigeration Scroll Compressor Copeland ZR144KC-TFD-522

Air Conditioner 10HP Refrigeration Scroll Compressor Copeland ZR144KC-TFD-522
Air Conditioner 10HP Refrigeration Scroll Compressor Copeland ZR144KC-TFD-522 Air Conditioner 10HP Refrigeration Scroll Compressor Copeland ZR144KC-TFD-522 Air Conditioner 10HP Refrigeration Scroll Compressor Copeland ZR144KC-TFD-522

Large Image :  Air Conditioner 10HP Refrigeration Scroll Compressor Copeland ZR144KC-TFD-522

Product Details:
Place of Origin: Thailand
Brand Name: Copeland
Certification: CE/UL
Model Number: ZR144KC-TFD-522
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: discussed
Packaging Details: Wooden case or 12 units in one pallet
Delivery Time: 7-10 working days after receiving payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5,000pcs per month
Detailed Product Description
Piston Type: Scroll Power Source: AC Power
Drive Mode: Electric Horse Power: 10HP
Configuration: Stationary Temperature: Med/High Temperature
Lubrication Style: Oil-less Mute: Yes
Weight: 61.3Kg Dimension(L*W*H): 263.6*284.2*546.1(mm)
Highlight:

copeland a c compressor

,

commercial refrigeration compressor

Refrigeration 10HP Copeland scroll compressor ZR144KC-TFD-522 for Air Conditioner



Specifications



Copeland scroll compressor ZR144KC-TFD-522
1.higher efficiency
2.lower sound levels
3.superior durability
Power:10HP,380V,50HZ,R22





Specifications:



  • Power: 1.5-15 HP
  •
  • Med/High Temperature
  •
  • Superior efficiency
  •
  • Outstanding reliablity
  •
  • Fewer moving parts
  •
  • Very low noise/gas pulsation.





Description:



1.Models have : ZR16M3-TWD-522,ZR19M3-TWD-522,ZR47KC-TFD,ZR94KC-TFD,ZR125KC-TFD, ZR160KC-TFD,ZR61KC-TFD,ZR108KC-TFD,ZR144KC-TFD,ZR72KC-TFD ....



2.The are Copeland scroll compressors, can be used for air conditioning and refrigeration.



3.We have models made in China,Thailand and Belguim.



4. 12 units packing with one pallet.



With reliable performance, superior efficiency, quiet operation, and diagnostic capability, Emerson Climate Technologies offers the most advanced scroll technology available to support your commercial air-conditioning needs. With the widest R-410A selection available, the Copeland Scroll™ compressor offering ranges from 2–40 HP in singles and up to 80 HP in tandems.

Air Conditioner 10HP Refrigeration Scroll Compressor Copeland ZR144KC-TFD-522 0Air Conditioner 10HP Refrigeration Scroll Compressor Copeland ZR144KC-TFD-522 1





Copeland Scroll Compressor 2–7 HP



  • Designed to power high-efficiency air conditioners with its improved scroll set and motor for higher reliability, lower noise, and compact frame;
  • Comes with Enhanced Vapor Injection (EVI) technology for increased heating capacity;
  • Allows for the best overall applied cost for high-efficiency systems.



Copeland Scroll Compressor 7–15 HP



  • Designed for superior R-410A efficiency and performance
  • Features Advanced Scroll Temperature Protection (ASTP) to guard the compressor from the scroll overheating
  • Light, compact design with smaller suction fittings for applied cost saving
  • R-410A and R-22/R-407C models in 7–15 HP (tandems up to 30 HP)



Copeland Scroll Compressor 20–40 HP



  • R-410A and R-22/R-407C models in 20–40 HP (tandems up to 80 HP)
  • Optimized for large rooftop and chiller applications
  • Designed to provide highest R-410A efficiency in this capacity range
  • Qualified for use in trio applications





We can supply more ZR models as follow:



copeland compressors - air conDitioning (cont' D)
hBp compressor – three phase
Model NO. Cooling Capacity (rating point 7.2) nominal hp Displ. cc/rev nom current Weight
FLa (Kg)
ZR22K3PFJ522 5240 1.83 30.7 9.6 26
ZR28K3PFJ522 6970 2.33 39.2 12.9 27.3
ZR28K3EPFJ522 6970 2.33 39.2 12.9 27.3
ZR34K3PFJ522 8260 2.83 46.1 13.6 29.5
ZR34K3EPFJ522 8260 2.83 46.1 13.6 29.5
ZR36K3PFJ522 8850 3 49.5 16.4 29.5
ZR40K3PFJ522 9620 3.33 54.19 17.1 32
ZR42K3PFJ522 10140 3.5 56.8 17.1 30
ZR47K3PFJ522 11500 3.9 64.1 19.3 32.6
ZR68KCPFJ522 16800 5.75 93 28.2 43.5
ZR28K3TFD522 6970 2.33 39.2 5 26
ZR28K3ETFD522 6970 2.33 39.2 5 26
ZR36K3TFD522 8850 3 49.5 5.7 29.5
ZR40K3TFD522 9260 3.33 51.2 6.4 32
ZR47KCTFD522 11400 3.9 63.2 7.2 32.6
ZR47KCETFD522 11400 3.9 63.2 7.2 32.6
ZR48KCTFD522 11500 4.1 67.2 7.5 38
ZR48KCETFD522 11500 4.1 67.2 7.5 38
ZR54KCTFD522 13000 4.5 73.2 8.2 35.5
ZR57KCTFD522 13660 4.75 76.9 8.2 36
ZR57KCETFD522 13660 4.75 76 8.2 36
ZR61KCTFD522 14700 5 82.4 10 35.9
ZR61KCETFD522 14700 5 82.4 10 35.9
ZR68KCTFD522 16500 5.75 93 10 38.2
ZR72KCTFD522 17800 6 98 10 38.2
ZR72KCETFD522 17800 6 98 10 38.2
ZR81KCTFD522 19800 6.75 110.6 12 40
ZR81KCETFD522 19800 6.75 110.6 12 40
ZR94KCTFD522 23000 8 127.2 16.2 59
ZR94KCTFD523 23200 8 127.2 16.2 58.2
ZR94KCETFD523 23200 8 127.2 16.2 58.2
ZR108KCTFD522 26670 9 147.5 17.3 64
ZR108KCETFD523 26670 9 147.5 17.3 64
ZR108KCTFD523 26900 9 144.5 17.3 62.7
ZR125KCTFD522 30660 10 171.4 19.2 64
ZR125KCETFD523 31000 10 165.6 19.2 62.7
ZR125KCTFD523 31000 10 165.6 19.2 62.7
ZR144KCTFD522 34700 12 191.7 19.6 62.7
ZR144KCETFD523 34700 12 191.7 19.6 62.7
ZR144KCTFD523 34700 12 191.7 19.6 62.7
ZR16M3TWD551 37700 13 204.3 25 103.1
ZR16M3ETWD551 37700 13 204.3 17.3 103
ZR19M3TWD551 45900 15 241.9 23.8 112.1
ZR19M3ETWD551 45900 15 241.9 23.8 119
Phase   Model Horse Power/HP Displacement (m3/h) ARI  7.2/54.4°C Weight/Kg Height /mm
Cooling (W) Input (W)
1 Phase ZR16K3-PFJ 1.33 3.97 4010 1320 25.9 370.4
ZR18K3-PFJ 1.5 4.37 4400 1440 25.9 370.4
ZR20K3-PFJ 1.69 4.76 4890 1600 25.9 370.4
ZR22K3-PFJ 1.83 5.34 5330 1730 25.9 382.8
ZR24K3-PFJ 2 5.92 5920 1870 26.3 382.8
ZR26K3-PFJ 2.17 6.27 6330 2000 25.9 382.8
ZR28K3-PFJ 2.33 6.83 6910 2150 27.2 382.8
ZR30K3-PFJ 2.5 7.3 7380 2290 28.6 405.5
ZR32K3-PFJ 2.67 7.55 7760 2410 28.1 405.5
ZR34K3-PFJ 2.83 8.02 8200 2520 29.5 405.5
ZR36K3-PFJ 3 8.61 8790 2700 29.5 405.5
ZR40K3-PFJ 3.33 9.43 9670 2970 29.9 419.3
ZR42K3-PFJ 3.5 9.94 10100 3120 29.9 419.3
ZR47K3-PFJ 3.92 11.16 11500 3530 30.4 436.6
3 Phase ZR22K3-TFD 1.83 5.34 5330 1650 25.9 382.8
ZR24K3-TFD 2 5.92 5920 1840 25.9 382.8
ZR26K3-TFD 2.17 6.27 6330 1960 25.9 382.8
ZR28K3-TFD 2.33 6.83 6910 2150 26.3 405.5
ZR30K3-TFD 2.5 7.3 7380 2290 26.3 405.5
ZR32K3-TFD 2.67 7.55 7760 2410 26.3 405.5
ZR34K3-TFD 2.83 8.02 8200 2500 28.6 405.5
ZR36K3-TFD 3 8.61 8790 2680 27.2 405.5
ZR40K3-TFD 3.33 9.43 9670 2950 28.6 419.3
2ZR42K3-TFD 3.5 9.94 10100 3090 28.6 419.3
ZR45KC-TFD 3.75 10.73 11000 3380 28.6 436.3
ZR46KC-TFD 3.83 10.95 11100 3390 34.9 456.9
ZR47KC-TFD 3.92 11.16 11500 3500 28.6 436.3
ZR49KC-TFD 4.08 11.45 11700 3600 35.4 456.9
ZR54KC-TFD 4.5 12.73 12900 4030 35.4 456.9
ZR57KC-TFD 4.75 13.42 13700 4160 35.4 456.9
ZR61KC-TFD 5.08 14.34 14600 4430 35.8 456.9
ZR68KC-TFD 5.75 16.18 16400 4970 38.1 456.9
ZR72KC-TFD 6 17.05 17400 5250 38.1 456.9
ZR81KC-TFD 6.75 19.2 19690 5830 40.9 462.4
ZR84KC-TFD 7 19.75 20330 6140 56.7 495.3
ZR94KC-TFD 8 22.14 22940 7000 58 495.3
ZR108KC-TFD 9 25.15 26250 7830 72.6 533.4
ZR125KC-TFD 10 28.77 30470 9060 78 533.4
ZR90K3-TWD 7.5 20.9 21540 6620 91 542
ZR11M3-TWD 9 24.9 25840 7805 91 542
ZR12M3-TWD 10 28.8 29890 8955 92 542
ZR16M3-TWD 13 35.6 37330 11175 98 557
ZR19M3-TWD 15 42.1 45170 13400 112 596
