ZR190KCE-TFD-522 Refrigeration Scroll Compressor for heat pump

Name: ZR190KCE-TFD-522 Refrigeration Scroll Compressor for heat pump
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: ZR190KCE-TFD-522
Price: 4,000.00 USD
Availability: InStock

Model Number:	ZR190KCE-TFD-522
MOQ:	1pcs
Price:	discussed
Delivery Time:	7-10 working days after receiving payment
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Certification:

CE/UL

Piston Type:

Scroll Compressor

Power Source:

AC Power

Drive Mode:

Electric

Horse Power:

15HP

Configuration:

Stationary

Temperature:

Med/High Temperature

Lubrication Style:

Oil-less

Mute:

Yes

Weight:

66Kgs

Packaging Details:

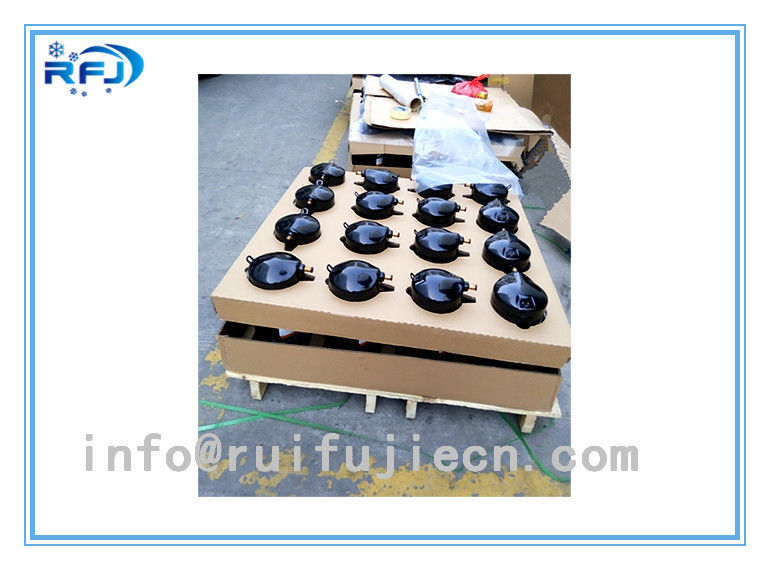

Wooden case or 12 units in one pallet

Supply Ability:

5,000pcs per month

Highlight:

ac compressor

commercial refrigeration compressor

Product Description

ZR190KCE-TFD-522 Refrigeration Scroll Compressor for Heat Pump

ZR190KCE-TFD-522 Heat Pumps Scroll Compressor

Specifications

ZR series compressor can be used for air conditioning and heat pumps

Scroll compressor; 15HP
Capacity: 46300 W
Voltage: 380-420V

ZR Compressor Features

Power: 1.5-15 HP
Med/High Temperature
Superior efficiency
Outstanding reliability
Fewer moving parts
Very low noise/gas pulsation

Available ZR Compressor Models

Model NO.	Cooling Capacity (rating point 7.2)	Nominal HP	Displ. cc/rev	Nom Current FLa	Weight (Kg)
ZR22K3PFJ522	5240	1.83	30.7	9.6	26
ZR28K3PFJ522	6970	2.33	39.2	12.9	27.3
ZR28K3EPFJ522	6970	2.33	39.2	12.9	27.3
ZR34K3PFJ522	8260	2.83	46.1	13.6	29.5
ZR34K3EPFJ522	8260	2.83	46.1	13.6	29.5
ZR36K3PFJ522	8850	3	49.5	16.4	29.5
ZR40K3PFJ522	9620	3.33	54.19	17.1	32
ZR42K3PFJ522	10140	3.5	56.8	17.1	30
ZR47K3PFJ522	11500	3.9	64.1	19.3	32.6
ZR68KCPFJ522	16800	5.75	93	28.2	43.5
ZR28K3TFD522	6970	2.33	39.2	5	26
ZR28K3ETFD522	6970	2.33	39.2	5	26
ZR36K3TFD522	8850	3	49.5	5.7	29.5
ZR40K3TFD522	9260	3.33	51.2	6.4	32
ZR47KCTFD522	11400	3.9	63.2	7.2	32.6
ZR47KCETFD522	11400	3.9	63.2	7.2	32.6
ZR48KCTFD522	11500	4.1	67.2	7.5	38
ZR48KCETFD522	11500	4.1	67.2	7.5	38
ZR54KCTFD522	13000	4.5	73.2	8.2	35.5
ZR57KCTFD522	13660	4.75	76.9	8.2	36
ZR57KCETFD522	13660	4.75	76	8.2	36
ZR61KCTFD522	14700	5	82.4	10	35.9
ZR61KCETFD522	14700	5	82.4	10	35.9
ZR68KCTFD522	16500	5.75	93	10	38.2
ZR72KCTFD522	17800	6	98	10	38.2
ZR72KCETFD522	17800	6	98	10	38.2
ZR81KCTFD522	19800	6.75	110.6	12	40
ZR81KCETFD522	19800	6.75	110.6	12	40
ZR94KCTFD522	23000	8	127.2	16.2	59
ZR94KCTFD523	23200	8	127.2	16.2	58.2
ZR94KCETFD523	23200	8	127.2	16.2	58.2
ZR108KCTFD522	26670	9	147.5	17.3	64
ZR108KCETFD523	26670	9	147.5	17.3	64
ZR108KCTFD523	26900	9	144.5	17.3	62.7
ZR125KCTFD522	30660	10	171.4	19.2	64
ZR125KCETFD523	31000	10	165.6	19.2	62.7
ZR125KCTFD523	31000	10	165.6	19.2	62.7
ZR144KCTFD522	34700	12	191.7	19.6	62.7
ZR144KCETFD523	34700	12	191.7	19.6	62.7
ZR144KCTFD523	34700	12	191.7	19.6	62.7
ZR16M3TWD551	37700	13	204.3	25	103.1
ZR16M3ETWD551	37700	13	204.3	17.3	103
ZR19M3TWD551	45900	15	241.9	23.8	112.1
ZR19M3ETWD551	45900	15	241.9	23.8	119

Phase	Model	Horse Power/HP	Displacement (m3/h)	Cooling (W)	Input (W)	Weight/Kg	Height /mm
1 Phase	ZR16K3-PFJ	1.33	3.97	4010	1320	25.9	370.4
1 Phase	ZR18K3-PFJ	1.5	4.37	4400	1440	25.9	370.4
1 Phase	ZR20K3-PFJ	1.69	4.76	4890	1600	25.9	370.4
1 Phase	ZR22K3-PFJ	1.83	5.34	5330	1730	25.9	382.8
1 Phase	ZR24K3-PFJ	2	5.92	5920	1870	26.3	382.8
1 Phase	ZR26K3-PFJ	2.17	6.27	6330	2000	25.9	382.8
1 Phase	ZR28K3-PFJ	2.33	6.83	6910	2150	27.2	382.8
1 Phase	ZR30K3-PFJ	2.5	7.3	7380	2290	28.6	405.5
1 Phase	ZR32K3-PFJ	2.67	7.55	7760	2410	28.1	405.5
1 Phase	ZR34K3-PFJ	2.83	8.02	8200	2520	29.5	405.5
1 Phase	ZR36K3-PFJ	3	8.61	8790	2700	29.5	405.5
1 Phase	ZR40K3-PFJ	3.33	9.43	9670	2970	29.9	419.3
1 Phase	ZR42K3-PFJ	3.5	9.94	10100	3120	29.9	419.3
1 Phase	ZR47K3-PFJ	3.92	11.16	11500	3530	30.4	436.6
3 Phase	ZR22K3-TFD	1.83	5.34	5330	1650	25.9	382.8
3 Phase	ZR24K3-TFD	2	5.92	5920	1840	25.9	382.8
3 Phase	ZR26K3-TFD	2.17	6.27	6330	1960	25.9	382.8
3 Phase	ZR28K3-TFD	2.33	6.83	6910	2150	26.3	405.5
3 Phase	ZR30K3-TFD	2.5	7.3	7380	2290	26.3	405.5
3 Phase	ZR32K3-TFD	2.67	7.55	7760	2410	26.3	405.5
3 Phase	ZR34K3-TFD	2.83	8.02	8200	2500	28.6	405.5
3 Phase	ZR36K3-TFD	3	8.61	8790	2680	27.2	405.5
3 Phase	ZR40K3-TFD	3.33	9.43	9670	2950	28.6	419.3
3 Phase	2ZR42K3-TFD	3.5	9.94	10100	3090	28.6	419.3
3 Phase	ZR45KC-TFD	3.75	10.73	11000	3380	28.6	436.3
3 Phase	ZR46KC-TFD	3.83	10.95	11100	3390	34.9	456.9
3 Phase	ZR47KC-TFD	3.92	11.16	11500	3500	28.6	436.3
3 Phase	ZR49KC-TFD	4.08	11.45	11700	3600	35.4	456.9
3 Phase	ZR54KC-TFD	4.5	12.73	12900	4030	35.4	456.9
3 Phase	ZR57KC-TFD	4.75	13.42	13700	4160	35.4	456.9
3 Phase	ZR61KC-TFD	5.08	14.34	14600	4430	35.8	456.9
3 Phase	ZR68KC-TFD	5.75	16.18	16400	4970	38.1	456.9
3 Phase	ZR72KC-TFD	6	17.05	17400	5250	38.1	456.9
3 Phase	ZR81KC-TFD	6.75	19.2	19690	5830	40.9	462.4
3 Phase	ZR84KC-TFD	7	19.75	20330	6140	56.7	495.3
3 Phase	ZR94KC-TFD	8	22.14	22940	7000	58	495.3
3 Phase	ZR108KC-TFD	9	25.15	26250	7830	72.6	533.4
3 Phase	ZR125KC-TFD	10	28.77	30470	9060	78	533.4
3 Phase	ZR90K3-TWD	7.5	20.9	21540	6620	91	542
3 Phase	ZR11M3-TWD	9	24.9	25840	7805	91	542
3 Phase	ZR12M3-TWD	10	28.8	29890	8955	92	542
3 Phase	ZR16M3-TWD	13	35.6	37330	11175	98	557
3 Phase	ZR19M3-TWD	15	42.1	45170	13400	112	596
