| Model Number: | 6G-40.2-40P,6GE-40-40P |
| MOQ: | 1pcs |
| Price: | discussed |
| Delivery Time: | 7-10 working days after received your payment |
| Payment Terms: | T/T or western Union |

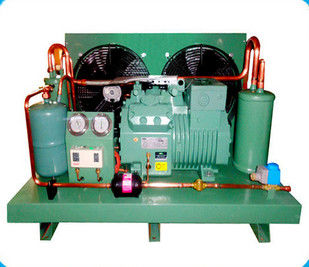

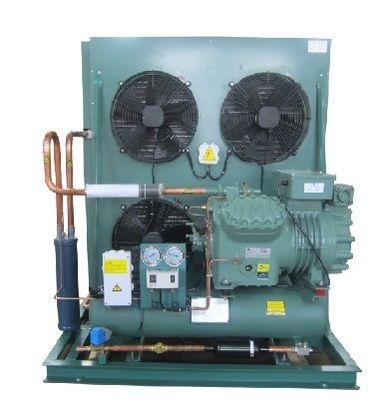

40HP refrigeration condensing unit 6G-40.2-40P 6GE-40-40P for cool room applications
Horse Power: 40HP
Voltage: 380V/50HZ/3Phase, 440-480V/60HZ/3PH
Compressor condensing unit is widely used for different temperature ranges, applicable in cold storage, chiller rooms, freezer rooms, and similar industrial applications.
| New Model Number | Old Model Number | Horse Power |
|---|---|---|
| 2HES-1 | 2HC-1.2 | 1HP |
| 2HES-2 | 2HC-2.2 | 2HP |
| 2GES-2 | 2GC-2.2 | 2HP |
| 2FES-2 | 2FC-2.2 | 2HP |
| 2FES-3 | 2FC-3.2 | 3HP |
| 2EES-2 | 2EC-2.2 | 2HP |
| 2EES-3 | 2EC-3.2 | 3HP |
| 2DES-2 | 2DC-2.2 | 2HP |
| 2DES-3 | 2DC-3.2 | 3HP |
| 2CES-3 | 2CC-3.2 | 3HP |
| 2CES-4 | 2CC-4.2 | 4HP |
| 4FES-3 | 4FC-3.2 | 3HP |
| 4FES-5 | 4FC-5.2 | 5HP |
| 4EES-4 | 4EC-4.2 | 4HP |
| 4EES-6 | 4EC-6.2 | 6HP |
| 4DES-5 | 4DC-5.2 | 5HP |
| 4DES-7 | 4DC-7.2 | 7HP |
| 4CES-6 | 4CC-6.2 | 6HP |
| 4CES-9 | 4CC-9.2 | 9HP |
| 4VES-7 | 4VCS-6.2 | 6HP |
| 4VES-10 | 4VCS-10.2 | 10HP |
| 4TES-9 | 4TCS-8.2 | 8HP |
| 4TES-12 | 4TCS-12.2 | 12HP |
| 4PES-12 | 4PCS-10.2 | 10HP |
| 4PES-15 | 4PCS-15.2 | 15HP |
| 4NES-14 | 4NCS-12.2 | 12HP |
| 4NES-20 | 4NCS-20.2 | 20HP |
| 4JE-15 | 4J-13.2* | 13HP |
| 4JE-22 | 4J-22.2* | 22HP |
| 4HE-18 | 4H-15.2* | 15HP |
| 4HE-25 | 4H-25.2* | 25HP |
| 4GE-23 | 4G-20.2* | 20HP |
| 4GE-30 | 4G-30.2* | 30HP |
| 6JE-25 | 6J-22.2* | 20HP |
| 6JE-33 | 6J-33.2* | 33HP |
| 6HE-28 | 6H-25.2* | 25HP |
| 6HE-35 | 6H-35.2* | 35HP |
| 6GE-34 | 6G-30.2* | 30HP |
| 6GE-40 | 6G-40.2* | 40HP |
| 6FE-44 | 6F-40.2* | 40HP |
| 6FE-50 | 6F-50.2* | 50HP |
| Model | Horse Power | Displacement (50Hz) m³/h | Quantity of Cylinder × Diameter × Stroke (mm) |
|---|---|---|---|
| 2DC-2.2 | 2 | 13.5 | 2×50×39.3 |
| 2DC-3.2 | 3 | 13.5 | 2×50×39.3 |
| 2CC-3.2 | 3 | 16.2 | 2×55×39.3 |
| 2CC-4.2 | 4 | 16.2 | 2×55×39.3 |
| 4DC-5.2 | 5 | 26.84 | 4×50×39.3 |
| 4DC-7.2 | 7 | 26.84 | 4×50×39.3 |
| 4CC-6.2 | 6 | 32.48 | 4×55×39.3 |
| 4CC-9.2 | 9 | 32.48 | 4×55×39.3 |
| 4TCS-8.2 | 8 | 41.33 | 4×60×42 |
| 4TCS-12.2 | 12 | 41.33 | 4×60×42 |
| 4PCS-10.2 | 10 | 48.5 | 4×65×42 |
| 4PCS-15.2 | 15 | 48.5 | 4×65×42 |
| 4NCS-12.2 | 12 | 56.25 | 4×70×42 |
| 4NCS-20.2 | 20 | 56.25 | 4×70×42 |
| 4H-15.2 | 15 | 73.6 | 4×70×55 |
| 4H-25.2 | 25 | 73.6 | 4×70×55 |
| 4G-20.2 | 20 | 84.5 | 4×75×55 |
| 4G-30.2 | 30 | 84.5 | 4×75×55 |
| 6H-25.2 | 25 | 110.5 | 6×70×55 |
| 6H-35.2 | 35 | 110.5 | 6×70×55 |
| 6G-30.2 | 30 | 126.8 | 6×75×55 |
| 6G-40.2 | 40 | 126.8 | 6×75×55 |
| 6F-40.2 | 40 | 151.6 | 6×82×55 |
| 6F-50.2 | 50 | 151.6 | 6×82×55 |
| S6H-20.2 | 20 | 36.8 | 6×70×55 |
| S6G-25.2 | 25 | 42.3 | 6×75×55 |
| S6F-30.2 | 30 | 50.5 | 6×82×55 |
|
|
