| Brand Name: | AUKS |
| Model Number: | AD452R4F/AD454C6 series |
| MOQ: | 1pcs |
| Price: | discussed |
| Delivery Time: | 7-10 working days after received your payment |
| Payment Terms: | L/C, T/T, Western Union |

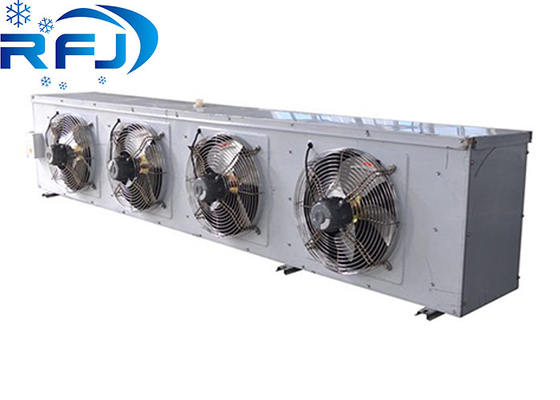

Ceiling Mount white Mid and Mini BOHN cooler of outstanding performance
Specifications:
Wide range of cold quantity;Most of the installation have needle valve;Wiring board positive installation;Cabinet design
1. easy to open the crust
2. wide range of cold quantity;
3. Most of the installation have needle valve;
4. Wiring board positive installation;
5. Cabinet design
6. with a strong rope, be used for maintenance wet pan when fixing.
note: AT- mesotherm cooler
AK-low temp. cooler
AD series for medium temperature:
| AE UItra Iow ProfiIe cooIers | ||||||
| 450mm | Fin Spacing 4.5mm | |||||
| Models | AD452R4F | AD452R6F | AD453R4F | AD453R6F | AD454R6F | |
| SC1 KW | Ta 10℃ R22 | 17.2 | 21 | 26.2 | 31.8 | 43.8 |
| Te -0℃ R404A | 17.2 | 22.2 | 26.2 | 31 | 43 | |
| Tube Length m | 127 | 190 | 190 | 285 | 380 | |
| Surface ㎡ | 48.8 | 73.2 | 73.2 | 109.9 | 146.5 | |
| Circuit Vol. dm³ | 10 | 15 | 15 | 22.5 | 30 | |
| Fan Mot.No. | 2 | 2 | 3 | 3 | 4 | |
| Air Flow m³/h | 7200 | 6900 | 10800 | 10350 | 13800 | |
| Air Throw m | 12 | 12 | 12 | 12 | 12 | |
| Fan Mot.Amper A | 1.2 | 1.2 | 1.8 | 1.8 | 2.4 | |
| Fan Mot.Power W | 500 | 500 | 750 | 750 | 1000 | |
| in Tube Inch. | 1/2 | 5/8 | 5/8 | 7/8 | 7/8 | |
| Out Tube Inch | 7/8 | 11/8 | 11/8 | 13/8 | 13/8 | |
| Net Weight kg | 109 | 120 | 159 | 176 | 216 | |
| Drawing No. | ㉞ | ㉞ | ㉟ | ㉟ | ㊱ | |
| 450mm | Fin Spacing 7mm | |||||
| Models | AD452C4 | AD452C6 | AD453C4 | AD453C6 | AD454C6 | |
| SC2 KW | Ta 0℃ R22 | 10 | 11.8 | 14.8 | 19.4 | 24.8 |
| Te -8℃ R404A | 10 | 11.4 | 14.6 | 19.2 | 26.6 | |
| SC1 KW | Ta -10℃ R22 | 14.4 | 17.2 | 21.2 | 28 | 38.2 |
| Te -0℃ R404A | 14.2 | 16.6 | 20.8 | 27.4 | 37.6 | |
| Tube Length m | 127 | 190 | 190 | 285 | 380 | |
| Surface ㎡ | 32.7 | 49.1 | 49.1 | 73.6 | 98.1 | |
| Circuit Vol. dm³ | 10 | 15 | 15 | 22.5 | 30 | |
| Fan Mot.No. | 2 | 2 | 3 | 3 | 4 | |
| Air Flow m³/h | 7600 | 7200 | 11400 | 10800 | 14400 | |
| Air Throw m | 12 | 12 | 12 | 12 | 12 | |
| Fan Mot.Amper A | 1.2 | 1.2 | 1.8 | 1.8 | 2.4 | |
| Fan Mot.Power W | 500 | 500 | 750 | 750 | 1000 | |
| Electric Defrost A | 10.9 Y | 10.9 Y | 16.4 Y | 16.4 Y | 21.8 Y | |
| Electric Defrost W | 7200 | 7200 | 10800 | 10800 | 14400 | |
| In Tube Inch. | 1/2 | 1/2 | 5/8 | 7/8 | 7/8 | |
| Out Tube Inch | 7/8 | 7/8 | 11/8 | 13/8 | 13/8 | |
| Net Weight kg | 108 | 119 | 158 | 175 | 215 | |
| Drawing No. | ㉞ | ㉞ | ㉟ | ㉟ | ㊱ |
