| Model Number: | ZR61KH-TFD-522 |
| MOQ: | 1pcs |
| Price: | discussed |
| Delivery Time: | 7-10 working days after receiving payment |
| Payment Terms: | L/C,T/T,Western Union |

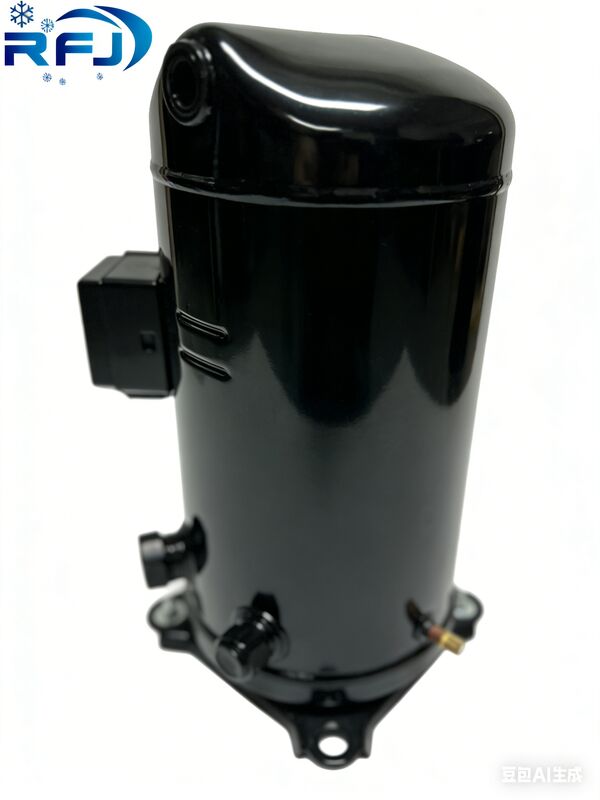

Refrigeration AC Scroll Compressor ZR61KH-TFD-522 380V 5HP R22
Available models include: ZR16M3-TWD-522, ZR19M3-TWD-522, ZR47KC-TFD, ZR94KC-TFD, ZR125KC-TFD, ZR160KC-TFD, ZR61KC-TFD, ZR108KC-TFD, ZR144KC-TFD, ZR72KC-TFD and more.
These scroll compressors are designed for both air conditioning and refrigeration applications.
Manufacturing Locations: Models available from production facilities in China, Thailand, and Belgium.
Packaging: 12 units per pallet
With reliable performance, superior efficiency, quiet operation, and diagnostic capability, these compressors offer the most advanced scroll technology available to support your commercial air-conditioning needs. The Scroll™ compressor offering ranges from 2-40 HP in singles and up to 80 HP in tandems.
| Model No. | Horse Power (HP) | Displacement (M³/h) | Cooling Capacity (W) | Input Power (W) | Net Weight (kg) | Height (mm) | Exhaust Pipe (Inch) | Suction Pipe (Inch) | Oil Injection (L) |
|---|---|---|---|---|---|---|---|---|---|
| ZR34KH-PFJ | 2.83 | 8.03 | 8204 | 2520 | 29 | 406 | 1/2 | 3/4 | 1.24 |
| ZR36KH-PFJ | 3 | 8.61 | 8878 | 2730 | 29 | 406 | 1/2 | 3/4 | 1.24 |
| ZR47K3-PFJ | 3.92 | 11.02 | 11427 | 3510 | 32 | 436 | 1/2 | 3/4 | 1.24 |
| ZR34KH-TFD | 2.83 | 8.03 | 8204 | 2480 | 28 | 406 | 1/2 | 3/4 | 1.24 |
| ZR36KH-TFD | 3 | 8.61 | 8878 | 2680 | 29 | 406 | 1/2 | 3/4 | 1.24 |
| ZR47KC-TFD | 3.92 | 11.16 | 11427 | 3480 | 30 | 436 | 1/2 | 3/4 | 1.36 |
| ZR57KC-TFD | 4.75 | 13.42 | 13654 | 4160 | 39 | 436 | 1/2 | 7/8 | 1.95 |
| ZR61KC-TFD | 5.08 | 14.37 | 14562 | 4430 | 36 | 457 | 1/2 | 7/8 | 1.95 |
| ZR72KC-TFD | 6 | 17.06 | 17609 | 5270 | 40 | 457 | 1/2 | 7/8 | 1.77 |
| ZR81KC-TFD | 6.75 | 19.17 | 19924 | 5810 | 40 | 462 | 3/4 | 7/8 | 1.77 |
| Model No. | Cooling Capacity (W) | Nominal HP | Displacement (cc/rev) | Nominal Current (FLA) | Weight (kg) |
|---|---|---|---|---|---|
| ZR22K3PFJ522 | 5240 | 1.83 | 30.7 | 9.6 | 26 |
| ZR28K3PFJ522 | 6970 | 2.33 | 39.2 | 12.9 | 27.3 |
| ZR34K3PFJ522 | 8260 | 2.83 | 46.1 | 13.6 | 29.5 |
| ZR36K3PFJ522 | 8850 | 3 | 49.5 | 16.4 | 29.5 |
| ZR47K3PFJ522 | 11500 | 3.9 | 64.1 | 19.3 | 32.6 |
| ZR28K3TFD522 | 6970 | 2.33 | 39.2 | 5 | 26 |
| ZR36K3TFD522 | 8850 | 3 | 49.5 | 5.7 | 29.5 |
| ZR47KCTFD522 | 11400 | 3.9 | 63.2 | 7.2 | 32.6 |
| ZR61KCTFD522 | 14700 | 5 | 82.4 | 10 | 35.9 |
| ZR72KCTFD522 | 17800 | 6 | 98 | 10 | 38.2 |
| Phase | Model | Horse Power (HP) | Displacement (m³/h) | Cooling (W) | Input (W) | Weight (kg) | Height (mm) |
|---|---|---|---|---|---|---|---|
| 1 Phase | ZR16K3-PFJ | 1.33 | 3.97 | 4010 | 1320 | 25.9 | 370.4 |
| 1 Phase | ZR24K3-PFJ | 2 | 5.92 | 5920 | 1870 | 26.3 | 382.8 |
| 1 Phase | ZR34K3-PFJ | 2.83 | 8.02 | 8200 | 2520 | 29.5 | 405.5 |
| 1 Phase | ZR47K3-PFJ | 3.92 | 11.16 | 11500 | 3530 | 30.4 | 436.6 |
| 3 Phase | ZR22K3-TFD | 1.83 | 5.34 | 5330 | 1650 | 25.9 | 382.8 |
| 3 Phase | ZR36K3-TFD | 3 | 8.61 | 8790 | 2680 | 27.2 | 405.5 |
| 3 Phase | ZR61KC-TFD | 5.08 | 14.34 | 14600 | 4430 | 35.8 | 456.9 |
| 3 Phase | ZR108KC-TFD | 9 | 25.15 | 26250 | 7830 | 72.6 | 533.4 |
| 3 Phase | ZR19M3-TWD | 15 | 42.1 | 45170 | 13400 | 112 | 596 |
|
|
