| Brand Name: | Copeland |
| Model Number: | ZR34KF-TFP-582 |
| MOQ: | 1 |
| Price: | 1-250 usd/pc |
| Delivery Time: | 3-7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

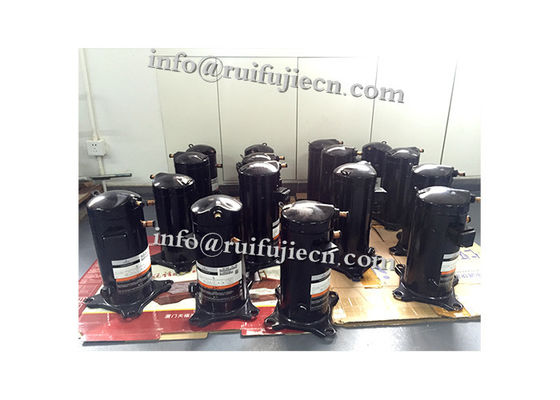

Copeland Scroll compressor
1,. 380v-420V/50Hz 460V/60HZ
2.3HP
3.27962 BTU
4,N.W:29Kgs
1, Copeland Compressor : ZR34KF-TFP-522
Copeland Scroll Compressor:
With reliable performance, superior efficiency, quiet operation, and diagnostic capability, Emerson Climate
Technologies offers the most advanced scroll technology available to support your commercial
air-conditioning needs. With the widest R410A selection available, the Copeland Scroll™
compressor offering
ranges from 2–40 HP in singles and up to 80 HP in tandems.
| copeland compressors - air conDitioning (cont' D) | |||||
| hBp compressor – three phase | |||||
| Model NO. | Cooling Capacity (rating point 7.2) | nominal hp | Displ. cc/rev | nom current | Weight |
| FLa | (Kg) | ||||
| ZR22K3PFJ522 | 5240 | 1.83 | 30.7 | 9.6 | 26 |
| ZR28K3PFJ522 | 6970 | 2.33 | 39.2 | 12.9 | 27.3 |
| ZR28K3EPFJ522 | 6970 | 2.33 | 39.2 | 12.9 | 27.3 |
| ZR34KFTFP582 | 8260 | 2.83 | 46.1 | 13.6 | 29.5 |
| ZR34K3EPFJ522 | 8260 | 2.83 | 46.1 | 13.6 | 29.5 |
| ZR36K3PFJ522 | 8850 | 3 | 49.5 | 16.4 | 29.5 |
| ZR40K3PFJ522 | 9620 | 3.33 | 54.19 | 17.1 | 32 |
| ZR42K3PFJ522 | 10140 | 3.5 | 56.8 | 17.1 | 30 |
| ZR47K3PFJ522 | 11500 | 3.9 | 64.1 | 19.3 | 32.6 |
| ZR68KCPFJ522 | 16800 | 5.75 | 93 | 28.2 | 43.5 |
| ZR28K3TFD522 | 6970 | 2.33 | 39.2 | 5 | 26 |
| ZR28K3ETFD522 | 6970 | 2.33 | 39.2 | 5 | 26 |
| ZR36K3TFD522 | 8850 | 3 | 49.5 | 5.7 | 29.5 |
| ZR40K3TFD522 | 9260 | 3.33 | 51.2 | 6.4 | 32 |
| ZR47KCTFD522 | 11400 | 3.9 | 63.2 | 7.2 | 32.6 |
| ZR47KCETFD522 | 11400 | 3.9 | 63.2 | 7.2 | 32.6 |
| ZR48KCTFD522 | 11500 | 4.1 | 67.2 | 7.5 | 38 |
| ZR48KCETFD522 | 11500 | 4.1 | 67.2 | 7.5 | 38 |
| ZR54KCTFD522 | 13000 | 4.5 | 73.2 | 8.2 | 35.5 |
| ZR57KCTFD522 | 13660 | 4.75 | 76.9 | 8.2 | 36 |
| ZR57KCETFD522 | 13660 | 4.75 | 76 | 8.2 | 36 |
| ZR61KCTFD522 | 14700 | 5 | 82.4 | 10 | 35.9 |
| ZR61KCETFD522 | 14700 | 5 | 82.4 | 10 | 35.9 |
| ZR68KCTFD522 | 16500 | 5.75 | 93 | 10 | 38.2 |
| ZR72KCTFD522 | 17800 | 6 | 98 | 10 | 38.2 |
| ZR72KCETFD522 | 17800 | 6 | 98 | 10 | 38.2 |
| ZR81KCTFD522 | 19800 | 6.75 | 110.6 | 12 | 40 |
| ZR81KCETFD522 | 19800 | 6.75 | 110.6 | 12 | 40 |
| ZR94KCTFD522 | 23000 | 8 | 127.2 | 16.2 | 59 |
| ZR94KCTFD523 | 23200 | 8 | 127.2 | 16.2 | 58.2 |
| ZR94KCETFD523 | 23200 | 8 | 127.2 | 16.2 | 58.2 |
| ZR108KCTFD522 | 26670 | 9 | 147.5 | 17.3 | 64 |
| ZR108KCETFD523 | 26670 | 9 | 147.5 | 17.3 | 64 |
| ZR108KCTFD523 | 26900 | 9 | 144.5 | 17.3 | 62.7 |
| ZR125KCTFD522 | 30660 | 10 | 171.4 | 19.2 | 64 |
| ZR125KCETFD523 | 31000 | 10 | 165.6 | 19.2 | 62.7 |
| ZR125KCTFD523 | 31000 | 10 | 165.6 | 19.2 | 62.7 |
| ZR144KCTFD522 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR144KCETFD523 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR144KCTFD523 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR16M3TWD551 | 37700 | 13 | 204.3 | 25 | 103.1 |
| ZR16M3ETWD551 | 37700 | 13 | 204.3 | 17.3 | 103 |
| ZR19M3TWD551 | 45900 | 15 | 241.9 | 23.8 | 112.1 |
| ZR19M3ETWD551 | 45900 | 15 | 241.9 | 23.8 | 119 |
