| Brand: | Copeland | Refrigerant: | R404A/R507 |
|---|---|---|---|
| Gross Weight: | 37KG | Horse Power: | 4HP |
| Certification: | CE | Frequency: | 50HZ/60HZ |
| Oil Charge: | 1.36L | Color: | Black |
| Voltage: | Ph3 380-420V/380-460V | Input Power(w): | 3640 |
| High Light: | copeland ac compressor,copeland a c compressor |
||

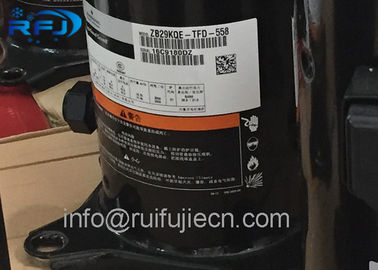

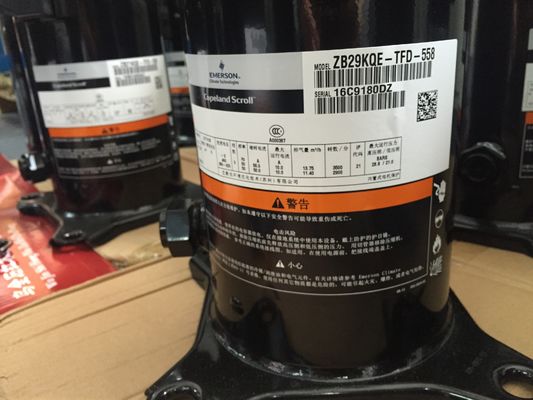

4HP Copeland Compressor Refrigeration PH3 50hz 380-420v / 60hz ZB29KQE-TFD-558
Refrigerant: R404A Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 29300/24400 EER (Btu/Wh): 6.9/6.7
Copeland compressor ZB29KQE-TFD-558 features
1. Copeland compressor ZB29KQE-TFD-558 have Double flexible design
It ensure seal between scroll plate. Allow scroll separate radial and axial directions, debris or liquid by vortex Plate without impairing compressor. This makes the machine longer life and higher reliability, better tolerance liquid .
2. High energy efficiency
Running scrolls instead wear, it will be better with the increase of the running time, which makes high volumetric efficiency.
3. Copeland compressor ZB29KQE-TFD-558 have lower noise and vibration levels .
It has a smooth sound spectrum and the soft sound quality.
4. Start unloading technology
Compression member separated from each other after the shutdown of the compressor overall pressure balance, without additional activation means.
| Specificaiton | Copeland compressor ZB29KQE-TFD-558 |
| Capacity(Btu/hr) | 24400 |
| Power(W) | 3640 |
| Current(A) | 7.70 |
| EER(Btu/wh) | 6.70 |
| Mass Flow(lbs/hr) | 514 |
| Horse Power | 4 |
| Weight(lbs) | 72 |
| Refrigerant | R404A |
