3HP To 60hp Grey DWM Copeland Semi-Hermetic Refrigeration Compressor D3/D4/D6/D8/D9 Series for Cold Room

China Shenzhen Ruifujie Technology Co., Ltd. certification
China Shenzhen Ruifujie Technology Co., Ltd. certification
After visiting your office and factory on August 1 this year, we are more confident to cooperate with your company. We plan to build two or three seafood cold storage warehouses in our city at the later stage. This order will be negotiated well with your business manager.

—— Benet’s Refrigeration Ltd

We have received the Danfoss compressor purchased in July. The package is beautiful and the quality is excellent. We will cooperate with rifter in the next order.

—— Mr.Rosalind

Your company's service is warm, especially Miss Liana. We are happy to cooperate with her this time, and the quotation is fast, the products are received soon, and the quality is good. Looking forward to cooperating with your company.

—— Mr.Mike Smith

In may this year, we ordered a bizer water cooling unit in your company. After two months of installation, the customer reported that it was running well. We plan to continue to order five units in October.

—— Gunawan

In July, we purchased 5 Bitzer Compressor from your company and used it well. This time, we also want to buy a grain compressor.

—— Mrs Jane Smith

Since 2013, I have ordered 10 refrigeration parts from your company, and then ordered the whole batch of ZB series compressor.

—— Miss April

I am very happy to cooperate with your company. In particular, it is very comfortable to communicate with your Miss Liana Wu and follow-up services, I hope to continue to cooperate.

—— CHESS GLOBAL LTD

I'm Online Chat Now

3HP To 60hp Grey DWM Copeland Semi-Hermetic Refrigeration Compressor D3/D4/D6/D8/D9 Series for Cold Room

3HP To 60hp Grey  DWM Copeland Semi-Hermetic Refrigeration Compressor D3/D4/D6/D8/D9 Series for Cold Room
3HP To 60hp Grey  DWM Copeland Semi-Hermetic Refrigeration Compressor D3/D4/D6/D8/D9 Series for Cold Room 3HP To 60hp Grey  DWM Copeland Semi-Hermetic Refrigeration Compressor D3/D4/D6/D8/D9 Series for Cold Room 3HP To 60hp Grey  DWM Copeland Semi-Hermetic Refrigeration Compressor D3/D4/D6/D8/D9 Series for Cold Room

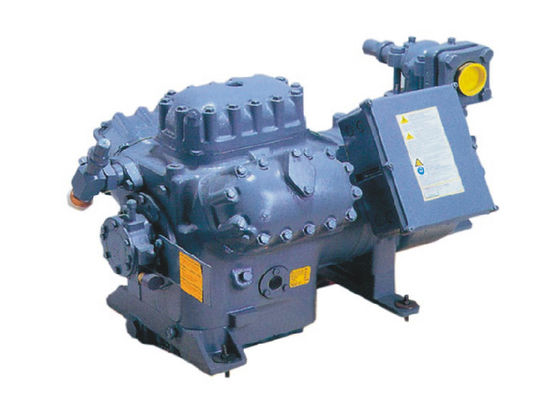

Large Image :  3HP To 60hp Grey DWM Copeland Semi-Hermetic Refrigeration Compressor D3/D4/D6/D8/D9 Series for Cold Room

Product Details:
Place of Origin: Garmany
Brand Name: DWM COPELAND
Certification: CE
Model Number: DK DL
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: discussed
Packaging Details: Wooden case
Delivery Time: 7-10 working days after receiving payment
Payment Terms: T/T, Western Union
Supply Ability: 5,00pcs per month
Detailed Product Description
Piston Type: Semi-hermetic Configuration: Stationary
Drive Mode: Electric Standard: Routine
Color: Green,black GAS: R22 /R404
Tempertature: -5—50 Displacement: 49.9-180 M3
High Light:

refrigerator compressor

,

semi hermetic reciprocating compressor

DWM COPELAND

EMERSON COPELAND SEMI-HERMETIC COMPRESSORS DK/DL Series Air-cooled 1.0-5HP R22/R502 Refrigerant

    The new semi-hermetic refrigeration compressor product line described here combines the latest compressor designs with the newest refrigerants for high performance,long service life,and broad
application flexibility. Included are air-cooled models up to 5HP,refrigerant-cooled Discus, S models
up to 70HP, and internally compounded two-stage models. Models supplied with ester oil are universally
capable of operating with R404A,R507,R407C,R134A or R22, thus reducing stock for a broad range
of applications.

    The use of compressors for HFCs,R404A,R507,R407C,R134A or R22 leads to a number of specific
issues regarding their application and operational behaviour. There are briefly reviewed in the following pages. Further information on these refrigerants is available from suppliers.

     Because of the different vapour-pressure characteristics of R404A compared with R502 and R134a
Compared with R12, particular attention must be paid to the vapour pressures resulting from the ambient temperature(especially at standstill). The limits permitted for the compressor and other system components must not be exceeded.



COMPRESSOR Power (H.P.) COOLING CAPACITY at 20℃ Suction Gas Temperature
  Displacement (m3/hr @1450rpm)
    Suction Line (inch)             Watts(50Hz)
MODELS       Suction Line (inch)
          No.of cylinders
            Refrigerant
    Cond
Temp Evapoating Temperayure

  -5℃ -10℃ -15℃ -20℃ -25℃ -30℃ -35℃ -40℃ -50℃

D9RS-1000L 10 49.9 1-3/8" 1-1/8" 3 R502 30℃       18250 14440 11190 8415 6085 2505
  50℃       13210 10260 7725 5575 3755
D4SF-1000 10 56 1-5/8" 1-1/8" 4 R22 30℃ 37880 30910 24840 19590 15080 11240 7980
  50℃ 28640 23010 18140 13960 10380
R502 30℃       23980 19170 15040 11530 8565 4040
  50℃       17280 13570 10390 7685 5385
D4ST-1500 20 70.8 2-1/8" 1-3/8" 4 R22 30℃ 48670 40110 32400 25550 19870 14500 10380
  50℃ 36490 29420 23100 17550 12780
R502 30℃       29790 23980 18990 14750 11170 5706
  50℃       21490 17130 13400 10220 7525
D4ST-2000 20 84.7 2-1/8" 1-3/8" 4 R22 30℃ 57520 47310 38070 29840 22670 16650 11870
  50℃ 43910 35260 27510 20690 14880
D6SF-2000 20 84 2-1/8" 1-3/8" 6 R22 30℃ 54880 44880 36180 28680 22250 16800 12200
  50℃ 41840 33540 26370 20220 14960
R502 30℃       33820 27110 21340 16440 12310 5985
  50℃       24090 18970 14590 13860 7685
D6SL-2500 25 106 2-1/8" 1-3/8" 6 R22 30℃ 69430 57250 46270 36520 28040 20870 15100
  50℃ 53250 42980 33810 25750 18850
R502 30℃       43010 24540 27260 21070 15850 7870
  50℃       30650 24250 18770 14110 10510
D6ST-3000 30 127 2-1/8" 1-3/8" 6 R502 30℃       51620 41350 37520 25010 18680 9005
  50℃       36490 28700 22040 16360 11540
D6ST-3200 32 127.2 1-1/8" 1-3/8" 6 R22 30℃ 81920 67170 54350 43290 33840 25810 19030
  50℃ 61810 49750 39370 30470 22870
D8SJ-4500 45 180 3-1/8" 1-5/8" 8 R22 30℃ 121700 99700 80570 64060 49900 37860 27680
  50℃ 91980 74570 59560 46700 35710





3HP To 60hp Grey  DWM Copeland Semi-Hermetic Refrigeration Compressor D3/D4/D6/D8/D9 Series for Cold Room 0



Our Product:

Hermetic Scroll Compressor, Hermetic Piston Compressor, Semi-hermetic Piston Compressor, Screw Compressor, Hermetic Air-cooled Condensing Unit, Semi-hermetic Air-cooled Condensing Unit, Semi-hermetic Water-cooled Condensing Unit, Piston Parallel Condensing Unit, Screw Condensing Unit, Air Cooled Condenser, Air cooler, Flake Ice Machine, Block Ice Machine, Fresh Storage, Freezing Room, Quickly Freezer Room,Large Freezer Room, etc.





Our Product Application:



Application Scope of Compressor: cold storage, frozen food processing and storage, quick freezing cold storage, low temperature shelf, ice cream machine, showcase, chiller, large integrated air conditioning, laboratory and medical equipment, cold dryer, glass door commercial freezer, vending machine, Ice machine, beverage cabinet, heat pump, milk cooling tank, etc.



Application Scope of Ice machine: Shopping malls supermarkets,catering, hotel chilled, food, aquatic product processing, logistics and distribution, poultry slaughter, offshore fishing, water conservancy and hydropower, large concrete cooling project, textile dyeing, mine, pharmaceutical chemical cooling, artificial snowmaking , ice storage air conditioning energy saving and environmental protection and so on.
