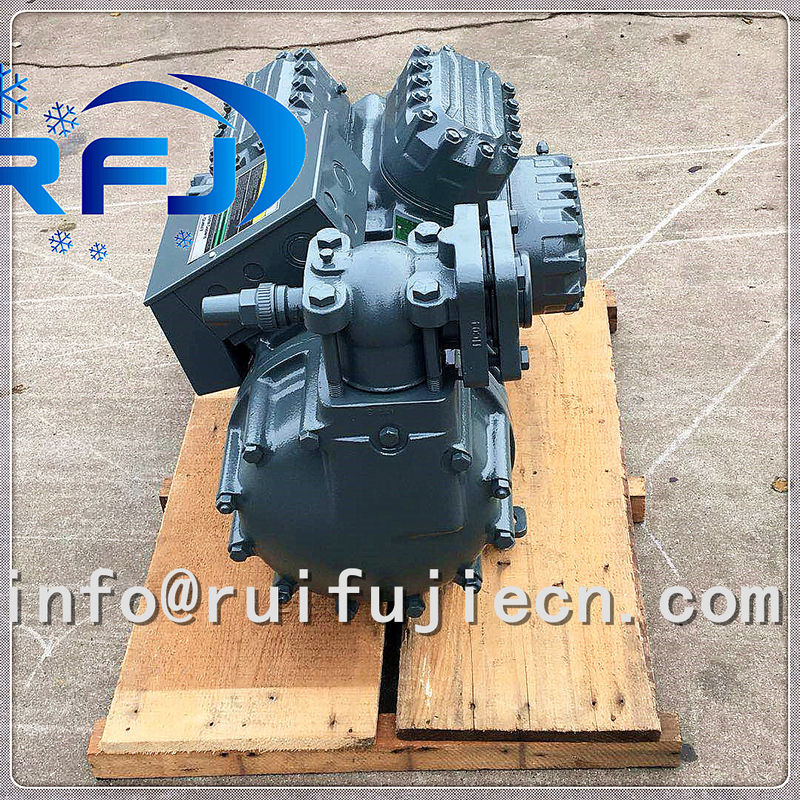

compressor used D6DL-2700DC air conditioner parts Used in freezer Room
semi hermetic compressor
,semi hermetic reciprocating compressor
Packaging Details
By Sea:Export wooden package,with refrigerant oil
By Air :Full-sealed wooden package, without refrigerant oil.
Delivery Time
3-5days
1,R-22,R134A,R407C,R404A/R507
2,from 5HP to 80HP
3,low price & high quality
Technical data
| Cylinder count: | 6 | |
| Displacement [m³/h]: | 106 | |
| Weight [kg]: | 258 | |
| Oil charge [dm³]: | 4,3 | |
| Max. operating current [A]: | 37,1 | |
| Locked rotor current [A]: | 192 | |
| Power supply [V/~/Hz]: | 380-420V/3/50Hz |
Connections
| milimeters | inches | ||
| Suction line: | 2 1/8" | ||
| Discharge line: | 1 3/8" |
- oil pump
- oil sight glass
- Rotalock valves
- thermal protections
Optional equipment
- additional header cooling
- oil pressure switch
- crankcase heater
- unload starting
- capacity control
Application
- high, medium and low temperatures
(R22 from 12,5 ºC to -50 ºC)
(R404A/R507 from 7 ºC to -50 ºC)
(R134a from 12,5 ºC to -20 ºC)
(R407A from 7 ºC to -45 ºC)
Capacity : R22
| tc te | -50 | -45 | -40 | -35 | -30 | -25 | -20 |
| 25 | 7.21 | 10.19 | 13.99 | 18.64 | 24.14 | 30.54 | 37.85 |
| 30 | 6.46 | 9.33 | 12.99 | 17.46 | 22.76 | 28.92 | 35.97 |
| 35 | 5.69 | 8.44 | 11.95 | 16.24 | 21.34 | 27.26 | 34.05 |
| 40 | - | 7.51 | 10.87 | 14.98 | 19.87 | 25.55 | 32.07 |
| 45 | - | 6.52 | 9.73 | 13.66 | 18.34 | 23.79 | 30.03 |
| 50 | - | - | 8.54 | 12.29 | 16.75 | 21.96 | 27.93 |
| 55 | - | - | 7.29 | 10.85 | 15.10 | 20.06 | 25.76 |
Power input [kW]
| tc te | -50 | -45 | -40 | -35 | -30 | -25 | -20 |
| 25 | 6.83 | 8.10 | 9.40 | 10.66 | 11.83 | 12.87 | 13.72 |
| 30 | 6.72 | 8.17 | 9.66 | 11.13 | 12.53 | 13.80 | 14.89 |
| 35 | 6.52 | 8.16 | 9.85 | 11.52 | 13.14 | 14.65 | 15.99 |
| 40 | - | 8.04 | 9.93 | 11.82 | 13.66 | 15.41 | 17.00 |
| 45 | - | 7.81 | 9.90 | 12.01 | 14.08 | 16.06 | 17.91 |
| 50 | - | - | 9.74 | 12.07 | 14.37 | 16.60 | 18.70 |
| 55 | - | - | 9.44 | 11.99 | 14.53 | 17.01 | 19.37 |
Current [A]
| tc te | -50 | -45 | -40 | -35 | -30 | -25 | -20 |
| 25 | 18.68 | 19.91 | 21.32 | 22.81 | 24.27 | 25.59 | 26.68 |
| 30 | 18.58 | 19.99 | 21.62 | 23.37 | 25.13 | 26.81 | 28.29 |
| 35 | 18.40 | 19.99 | 21.84 | 23.85 | 25.92 | 27.95 | 29.82 |
| 40 | - | 19.87 | 21.95 | 24.23 | 26.61 | 28.99 | 31.26 |
| 45 | - | 19.62 | 21.92 | 24.47 | 27.17 | 29.91 | 32.58 |
| 50 | - | - | 21.74 | 24.56 | 27.57 | 30.67 | 33.74 |
| 55 | - | - | 21.37 | 24.46 | 27.80 | 31.25 | 34.74 |
Mass flow [kg/s]
| tc te | -50 | -45 | -40 | -35 | -30 | -25 | -20 |
| 25 | 131.29 | 186.90 | 257.16 | 342.96 | 445.18 | 564.70 | 702.42 |
| 30 | 121.93 | 176.91 | 246.58 | 331.84 | 433.57 | 552.67 | 690.01 |
| 35 | 111.30 | 165.64 | 234.73 | 319.45 | 420.70 | 539.36 | 676.31 |
| 40 | - | 152.76 | 221.26 | 305.45 | 406.21 | 524.44 | 661.01 |
| 45 | - | 137.93 | 205.85 | 289.50 | 389.79 | 507.58 | 643.77 |
| 50 | - | - | 188.16 | 271.28 | 371.08 | 488.44 | 624.25 |
| 55 | - | - | 167.85 | 250.44 | 349.76 | 466.69 | 602.12 |
C.O.P. [W/W]
| tc te | -50 | -45 | -40 | -35 | -30 | -25 | -20 |
| 25 | 1.06 | 1.26 | 1.49 | 1.75 | 2.04 | 2.37 | 2.76 |
| 30 | 0.96 | 1.14 | 1.34 | 1.57 | 1.82 | 2.10 | 2.42 |
| 35 | 0.87 | 1.03 | 1.21 | 1.41 | 1.62 | 1.86 | 2.13 |
| 40 | - | 0.93 | 1.09 | 1.27 | 1.45 | 1.66 | 1.89 |
| 45 | - | 0.84 | 0.98 | 1.14 | 1.30 | 1.48 | 1.68 |
| 50 | - | - | 0.88 | 1.02 | 1.17 | 1.32 | 1.49 |
| 55 | - | - | 0.77 | 0.90 | 1.04 | 1.18 | 1.33 |
