Copeland compressor used D6DL-2700DC copeland air conditioner parts Used in freezer Room

Name: Copeland compressor used D6DL-2700DC copeland air conditioner parts Used in freezer Room
Brand: Copeland
SKU: D6DL-2700DC
Rating: 4.9 (154 reviews)

Brand Name:	Copeland
Model Number:	D6DL-2700DC
MOQ:	1 piece
Price:	discussed
Delivery Time:	10-12 DAYS
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Belgium

Certification:

CE,SGS

Type:

Semi-hermetic Piston Compressors

Producer:

Copeland

Series:

DISCUS

Cylinder Count:

Displacement [m³/h]:

106

Weight [kg]:

258

Oil Charge [dm³]:

4,3

Max. Operating Current [A]:

37,1

Locked Rotor Current [A]:

192

Power Supply [V/~/Hz]:

380-420V/3/50Hz

Packaging Details:

STANDARD WOODEN PACKAGING

Supply Ability:

50000 PIECES/YEAR

Highlight:

copeland semi hermetic compressor

semi hermetic reciprocating compressor

Product Description

Copeland compressor used D6DL-2700 copeland air conditioner parts Used in freezer Room

Packaging & Delivery

Packaging Details

By Sea:Export wooden package,with refrigerant oil
By Air :Full-sealed wooden package, without refrigerant oil.

Delivery Time

3-5days

Semi-hermetic DWM Copeland Compressor all models
1,R-22,R134A,R407C,R404A/R507
2,from 5HP to 80HP
3,low price & high quality

Type: Semi-hermetic piston compressors

Producer: Copeland

Series: DISCUS

Model: D6DL-2700 DC

Technical data


Cylinder count:	6
Displacement [m³/h]:	106
Weight [kg]:	258
Oil charge [dm³]:	4,3
Max. operating current [A]:	37,1
Locked rotor current [A]:	192
Power supply [V/~/Hz]:	380-420V/3/50Hz

Connections


	milimeters	inches
Suction line:		2 1/8"
Discharge line:		1 3/8"

Standard equipment

oil pump
oil sight glass
Rotalock valves
thermal protections

Optional equipment

additional header cooling
oil pressure switch
crankcase heater
unload starting
capacity control

Application

high, medium and low temperatures
(R22 from 12,5 ºC to -50 ºC)
(R404A/R507 from 7 ºC to -50 ºC)
(R134a from 12,5 ºC to -20 ºC)
(R407A from 7 ºC to -45 ºC)

Capacity : R22

Cooling capacity [kW]

t_c t_e	-50	-45	-40	-35	-30	-25	-20
25	7.21	10.19	13.99	18.64	24.14	30.54	37.85
30	6.46	9.33	12.99	17.46	22.76	28.92	35.97
35	5.69	8.44	11.95	16.24	21.34	27.26	34.05
40	-	7.51	10.87	14.98	19.87	25.55	32.07
45	-	6.52	9.73	13.66	18.34	23.79	30.03
50	-	-	8.54	12.29	16.75	21.96	27.93
55	-	-	7.29	10.85	15.10	20.06	25.76

Power input [kW]

t_c t_e	-50	-45	-40	-35	-30	-25	-20
25	6.83	8.10	9.40	10.66	11.83	12.87	13.72
30	6.72	8.17	9.66	11.13	12.53	13.80	14.89
35	6.52	8.16	9.85	11.52	13.14	14.65	15.99
40	-	8.04	9.93	11.82	13.66	15.41	17.00
45	-	7.81	9.90	12.01	14.08	16.06	17.91
50	-	-	9.74	12.07	14.37	16.60	18.70
55	-	-	9.44	11.99	14.53	17.01	19.37

Current [A]

t_c t_e	-50	-45	-40	-35	-30	-25	-20
25	18.68	19.91	21.32	22.81	24.27	25.59	26.68
30	18.58	19.99	21.62	23.37	25.13	26.81	28.29
35	18.40	19.99	21.84	23.85	25.92	27.95	29.82
40	-	19.87	21.95	24.23	26.61	28.99	31.26
45	-	19.62	21.92	24.47	27.17	29.91	32.58
50	-	-	21.74	24.56	27.57	30.67	33.74
55	-	-	21.37	24.46	27.80	31.25	34.74

Mass flow [kg/s]

t_c t_e	-50	-45	-40	-35	-30	-25	-20
25	131.29	186.90	257.16	342.96	445.18	564.70	702.42
30	121.93	176.91	246.58	331.84	433.57	552.67	690.01
35	111.30	165.64	234.73	319.45	420.70	539.36	676.31
40	-	152.76	221.26	305.45	406.21	524.44	661.01
45	-	137.93	205.85	289.50	389.79	507.58	643.77
50	-	-	188.16	271.28	371.08	488.44	624.25
55	-	-	167.85	250.44	349.76	466.69	602.12

C.O.P. [W/W]

t_c t_e	-50	-45	-40	-35	-30	-25	-20
25	1.06	1.26	1.49	1.75	2.04	2.37	2.76
30	0.96	1.14	1.34	1.57	1.82	2.10	2.42
35	0.87	1.03	1.21	1.41	1.62	1.86	2.13
40	-	0.93	1.09	1.27	1.45	1.66	1.89
45	-	0.84	0.98	1.14	1.30	1.48	1.68
50	-	-	0.88	1.02	1.17	1.32	1.49
55	-	-	0.77	0.90	1.04	1.18	1.33

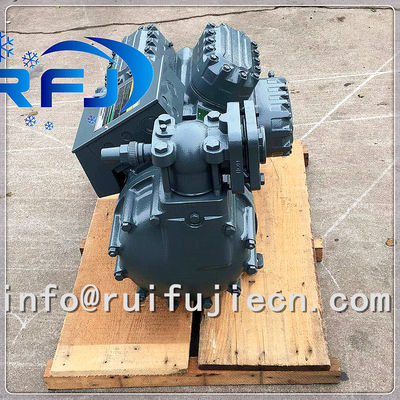

Copeland compressor used D6DL-2700DC copeland air conditioner parts Used in freezer Room 0

Copeland compressor used D6DL-2700DC copeland air conditioner parts Used in freezer Room 1

Copeland compressor used D6DL-2700DC copeland air conditioner parts Used in freezer Room 2
