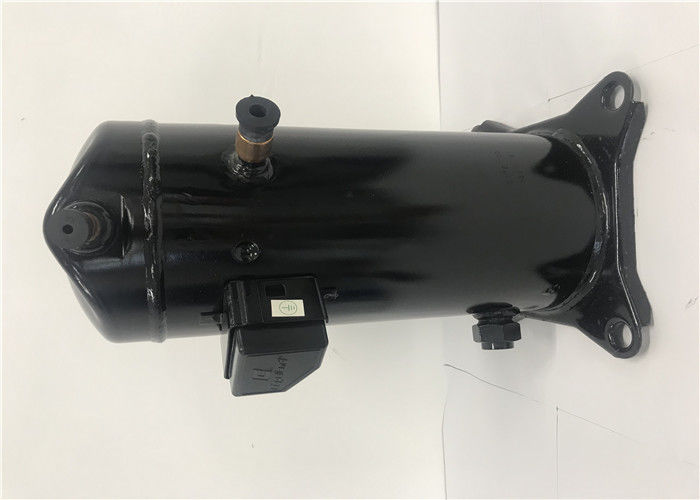

2.5hp ZR36K3E-TFD-522 R410a Refrigeration Scroll Compressor
ZR36K3E-TFD
,2.5hp Refrigeration Scroll Compressor
| MODEL | HP | CAPACITY (W) | INPUT POWER (KW) | INPUT CURRENT (A) | NET WEIGHT (KG) | HEIGHT (MM) | SUCTION |
|---|---|---|---|---|---|---|---|
| ZR24K3-TFD-522 | 2 | 5920 | 1.87 | 4.3 | 25.9 | 383 | 19/12 |
| ZR28K3-TFD-522 | 2.5 | 6910 | 2.15 | 5 | 26.3 | 383 | 19/12 |
| ZR34K3-TFD-522 | 2.8 | 8200 | 2.52 | 5.7 | 28 | 406 | 19/12 |
| ZR36K3-TFD-522 | 3 | 8900 | 2.7 | 5.7 | 28 | 406 | 19/12 |
| ZR42K3-TFD-522 | 3.5 | 10100 | 3.12 | 7.1 | 28.6 | 419 | 19/12 |
| ZR47KC-TFD-522 | 4 | 11500 | 3.53 | 7.2 | 28.6 | 436 | 22/12 |
| ZR54KC-TFD-522 | 4.5 | 12900 | 4.03 | 8.7 | 35.4 | 457 | 22/12 |
| ZR57KC-TFD-522 | 4.8 | 13700 | 4.16 | 8.7 | 35.4 | 457 | 22/12 |
| ZR61KC-TFD-522 | 5 | 14600 | 4.43 | 10 | 35.8 | 457 | 22/12 |
| ZR68KC-TFD-522 | 5.8 | 16400 | 4.97 | 12.1 | 38.1 | 457 | 22/12 |
| ZR72KC-TFD-522 | 6 | 17400 | 5.25 | 12.1 | 38.1 | 451 | 22/12 |
| ZR81KC-TFD-522 | 6.8 | 19690 | 5.83 | 15 | 40.9 | 462 | 22/22 |
| ZR84KC-TFD-522 | 7 | 20330 | 6.14 | 15 | 56.7 | 497 | 22/22 |
| ZR94KC-TFD-522 | 8 | 22940 | 7 | 16.4 | 58 | 497 | 28/22 |
| ZR108KC-TFD-522 | 9 | 26250 | 7.83 | 17.3 | 63 | 552 | 28/22 |
| ZR125KC-TFD-522 | 10 | 30470 | 9.06 | 19.2 | 63 | 552 | 35/22 |
| ZR144KC-TFD-522 | 12 | 34730 | 22.3 | 19.6 | 63 | 552 | 35/22 |
| ZR90M3-TWD-551 | 7.5 | 21540 | 6.62 | 14.6 | 91 | 553 | 33 86/25.4 |
| ZR11M3-TWD-551 | 9 | 25840 | 7.8 | 17.8 | 91 | 553 | 33 86/25.4 |
| ZR12M3-TWD-551 | 10 | 29890 | 8.95 | 17.9 | 92 | 553 | 33 86/25.4 |
| ZR16M3-TWD-551 | 13 | 37330 | 11.17 | 25 | 98 | 553 | 33 86/25.4 |
| ZR19M3-TWD-522 | 15 | 45170 | 13.4 | 27.2 | 112 | 598 | 42/28 |
| ZR250KC-TWD-522 | 20 | 60000 | 17.7 | 34 | 142 | 736 | |
| ZR310KC-TWD-522 | 25 | 74000 | 22 | 41.4 | 160 | 734 | |
| ZR380KC-TWD-522 | 30 | 92000 | 26.9 | 62.5 | 176 | 734 |
- Box type structure for compact design and pleasant appearance
- Semi-hermetic refrigerant compressor with low vibration and noise
- High efficiency and long service life
- External rotor fan for reduced running noise
- Built-in junction box
- Energy saving and environmentally friendly using R410a refrigerant
- Widely used in cold storage, freezer, refrigerated box applications
- EXPRESS: Approximately 5-7 working days
- INTERNATIONAL AIR MAIL: Approximately 2-4 weeks
- Wire Transfer
- Western Union
