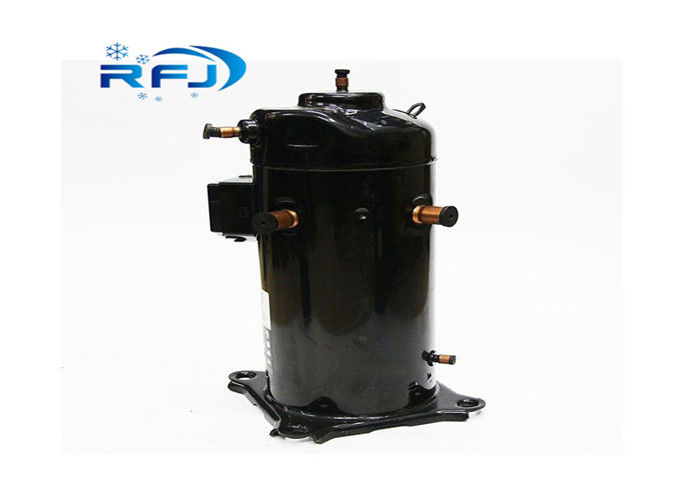

| Brand Name: | copeland |
| Model Number: | ZF13KQE-TFD |
| MOQ: | 1 |
| Price: | discussed |
| Delivery Time: | 1-5DAYS |
| Payment Terms: | T/T, D/A |
Features
* Compact and sophisticated outlook
* Fully assembled and ready to be installed to save on assembly and applied cost
* Wide operating range
- LT from -40℃ to -20℃ evaporating temperature
- Used for LT cold room application
- Reduce inventory for distributors and contractors
* Best-in-class scroll compressor efficiency and reliability
- Up to 30% annual electrical savings from COP improvement as compared with reciprocating systems.
- 70% fewer moving parts than reciprocating compressor
- Superior liquid handling
* With Liquid injection control
* Suit for R404a and R407F refrigerant.
Product Range:-
| Model No. | Electrical Supply Volts / Phase | Displacement m³/hr | R404A Capacity Watts @ -25°C SST | Connection Type | Connection Size: inches | Replacement Oil Charge: Ltrs | Amps | Winding Resistance Ohm | Weight: kg | ||
| Suction | Discharge | Rated Load Amps | Locked Rotor Amps | ||||||||
| ZF09K4E-TFD-551 | 415/3 | 8 | 2950 | Rotalock | 1 1/4 | 1 | 1.1 | 6 | 40 | 4.83 | 30 |
| ZF11K4E-TFD-551 | 415/3 | 9.9 | 3700 | Rotalock | 1 1/4 | 1 | 1.1 | 7 | 46 | 4.03 | 31 |
| ZF13K4E-TFD-551 | 415/3 | 11.8 | 4300 | Rotalock | 1 1/4 | 1 | 1.4 | 8 | 51.5 | 3.64 | 41 |
| ZF15K4E-TFD-551 | 415/3 | 14.5 | 5250 | Rotalock | 1 1/4 | 1 | 1.7 | 10 | 64 | 2.75 | 42 |
| ZF18K4E-TFD-551 | 415/3 | 17.2 | 6400 | Rotalock | 1 1/4 | 1 | 1.7 | 12 | 74 | 2.27 | 44 |
| ZF24K4E-TWD-551 | 415/3 | 20.9 | 7900 | Rotalock | 1 3/4 | 11/4 | 4 | 16.1 | 99 | 1.41 | 100 |
| ZF33K4E-TWD-551 | 415/3 | 28.9 | 11000 | Rotalock | 1 3/4 | 11/4 | 4 | 22.3 | 127 | 1.02 | 100 |
| ZF40K4E-TWD-551 | 415/3 | 35.6 | 13500 | Rotalock | 1 3/4 | 11/4 | 4.1 | 25.1 | 167 | 0.83 | 110 |
| ZF48K4E-TWD-551 | 415/3 | 42.1 | 15600 | Rotalock | 2 1/4 | 13/4 | 1.66 | 3 | |||
