| Installation: | Wall Mounted | Power Supply: | Electric |
|---|---|---|---|
| Application: | Cold Storage | Material: | Stainless Steel |
| Voltage: | 220/380v | Frequency: | 50/60hz |
| Highlight: | Industrial Refrigeration Evaporators,Refrigeration Evaporators Freezer,Air Cooler Freezer Evaporator |
||
Industrial Refrigeration Evaporators Freezer For Air Cooler Cold Room

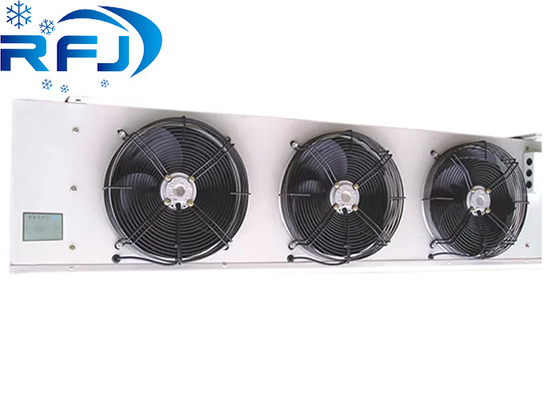

Refrigeration Air Cooler Evaporator for Cold Room Including Axial Fan
Specifications:
1. They used Australia & Europe technology design for commmercial refrigeration.
2. Using high efficiency pipes of heat-exchange.
3. Using axial fans, low-power, noiseless, high efficiency.
4. Out covering can be made from aluminum plank, PPGI or stainless steel. Using Spraying paint, antisepsis and durable.
5. Contact us for your special need, say we can offer as your requirements.
6. By the way, we can also provide LU-VE & BOHN evapporators.
Evaporator.
1.BT series is high temperature evaporator
2.AT Series is middle temperature evaporator
3.AK Series is low temperature evaporator.
More Models as below:
BT HIGH-TEMP cooling unit(stainless steel case,external rotor electric machine )
| 500mm | Fin Spacing 9mm | |||||||
| Models | ||||||||
| SC4 KW | Ta -25℃ R22 | 11.2 | 13 | 15.3 | 17.2 | 19.5 | 22.1 | 24.9 |
| Te -31℃ R404A | 11.2 | 12.9 | 15.1 | 17.4 | 19.2 | 21.8 | 24.4 | |
| SC3 KW | Ta -18℃ R22 | 14.3 | 16.6 | 19.5 | 21.8 | 24.9 | 27.9 | 32.2 |
| Te -25℃ R404A | 14.1 | 16.5 | 19.3 | 22.2 | 25 | 27.8 | 32.7 | |
| SC5 KW | Ta -34℃ R22 | 10.3 | 11.1 | 12.7 | 14.9 | 16.9 | 18.6 | 22.3 |
| Te -40℃ R404A | 10.1 | 10.6 | 12.5 | 14.8 | 16.7 | 18.4 | 21.9 | |
| Tube Length m | 194 | 259 | 240 | 288 | 384 | 360 | 480 | |
| Surface ㎡ | 56 | 75 | 70 | 84 | 111 | 104 | 139 | |
| Circuit Vol. dm³ | 27 | 35 | 33 | 39 | 53 | 49 | 66 | |
| Fan Mot.No. | 2 | 2 | 3 | 3 | 3 | 4 | 4 | |
| Air Flow m³/h | 13000 | 12000 | 20250 | 19350 | 17850 | 24800 | 23000 | |
| Air Throw m | 17 | 16 | 18 | 18 | 17 | 19 | 18 | |
| Fan Mot.Amper A | 3 | 3 | 4.5 | 4.5 | 4.5 | 6 | 6 | |
| Fan Mot.Power W | 1260 | 1260 | 1890 | 1890 | 1890 | 2520 | 2520 | |
| Electric Defrost A | 13.6 Y | 13.6 Y | 22.6 △ | 22.6 △ | 22.6 △ | 28.4 △ | 28.4 △ | |
| Electric Defrost W | 9000 | 9000 | 12900 | 12900 | 12900 | 16200 | 16200 | |
| In Tube Inch. | 5/8 | 7/8 | 7/8 | 7/8 | 1-1/8 | 1-1/8 | 1-1/8 | |
| Out Tube Inch | 1-3/8 | 1-5/8 | 1-5/8 | 1-5/8 | 2-1/8 | 2-1/8 | 2-1/8 | |
| Net Weight kg | 178 | 198 | 240 | 255 | 285 | 325 | 360 | |
| Drawing No. | ⑬ | ⑬ | ⑭ | ⑭ | ⑭ | ⑮ | ⑮ | |
| 630 mm | Fin Spacing 9mm | |||||||
| Models | ||||||||
| SC4 KW | Ta -25℃ R22 | 18.9 | 22.5 | 28.9 | 34.5 | 39.9 | ||
| Te -31℃ R404A | 18.5 | 22.2 | 28.6 | 34.2 | 38.6 | |||
| SC3 KW | Ta -18℃ R22 | 24.2 | 28.7 | 37 | 43.8 | 51.3 | ||
| Te -25℃ R404A | 23.9 | 28.4 | 36.8 | 43.6 | 50.1 | |||
| SC5 KW | Ta -34℃ R22 | 15.4 | 18.8 | 23.8 | 28.9 | 32.3 | ||
| Te -40℃ R404A | 14.9 | 18 | 22.7 | 27.7 | 30.9 | |||
| Tube Length m | 288 | 384 | 432 | 576 | 691 | |||
| Surface ㎡ | 84 | 111 | 125 | 167 | 200 | |||
| Circuit Vol. dm³ | 39 | 53 | 59 | 79 | 95 | |||
| Fan Mot.No. | 2 | 2 | 3 | 3 | 4 | |||
| Air Flow m³/h | 26200 | 24100 | 39300 | 36150 | 44700 | |||
| Air Throw m | 29 | 27 | 31 | 29 | 31 | |||
| Fan Mot.Amper A | 6.4 | 6.4 | 9.6 | 9.6 | 12.8 | |||
| Fan Mot.Power W | 3200 | 3200 | 4800 | 4800 | 6400 | |||
| Electric Defrost A | 18.9 △ | 28.4 △ | 28.4 △ | 42.6 △ | 51.3 △ | |||
| Electric Defrost W | 10800 | 16200 | 16200 | 24300 | 29250 | |||
| In Tube Inch. | 7/8 | 1-1/8 | 1-1/8 | 1-3/8 | 1-3/8 | |||
| Out Tube Inch | 1-5/8 | 2-1/8 | 2-1/8 | 2-1/8 | 2-1/8 | |||
| Net Weight kg | 240 | 280 | 320 | 390 | 480 | |||
| Drawing No. | ⑯ | ⑯ | ⑰ | ⑰ | ⑱ |
| Models | ||||||
| (Min Water Flow Rate) m³/h | 4.2 | 4.5 | 5.2 | 6.4 | 6.4 | 8 |
| (Max Water Flow Rate) m³/h | 6.5 | 7 | 8.1 | 10 | 10 | 12.5 |
| (Optimum Flow Rate) m³/h | 5.2 | 5.6 | 6.5 | 8 | 8 | 10 |
| (Water Pipe Size) inch. | G 1-1/2 | G 1-1/2 | G 1-1/2 | G 1-1/2 | G 1-1/2 | G 1-1/2 |
| (Drain Connection)inch. | G 3 | G 3 | G 3 | G 3 | G 3 | G 3 |
| (Drawing No.) | ⑲ | ⑲ | ⑳ | ⑳ | ㉑ | ㉑ |
| Models | ||||||
| (Min Water Flow Rate) m³/h | 5.2 | 6.4 | 6.4 | 8 | ||
| (Max Water Flow Rate) m³/h | 8.1 | 10 | 10 | 12.5 | ||
| (Optimum Flow Rate) m³/h | 5.2 | 5.6 | 6.5 | 8 | ||
| (Water Pipe Size) inch. | G 1-1/2 | G 1-1/2 | G 1-1/2 | G 2 | ||
| (Drain Connection)inch. | G 3 | G 3 | G 3 | G 4 | ||
| (Drawing No.) | ㉒ | ㉒ | ㉓ | ㉔ | ||
| Models | ||||||
| (Min Water Flow Rate) m³/h | 9.3 | 11.5 | 11.5 | 14.4 | ||
| (Max Water Flow Rate) m³/h | 14.6 | 18 | 18 | 22.5 | ||
| (Optimum Flow Rate) m³/h | 11.7 | 14.4 | 14.4 | 18 | ||
| (Water Pipe Size) inch. | G 2 | G 2 | G 2 | G 2 | ||
| (Drain Connection)inch. | G 4 | G 4 | G 5 | G 5 | ||
| (Drawing No.) | ㉗ | ㉗ | ㉘ | ㉘ |
