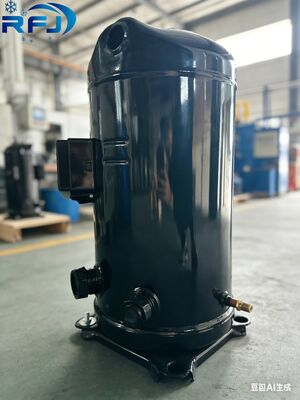

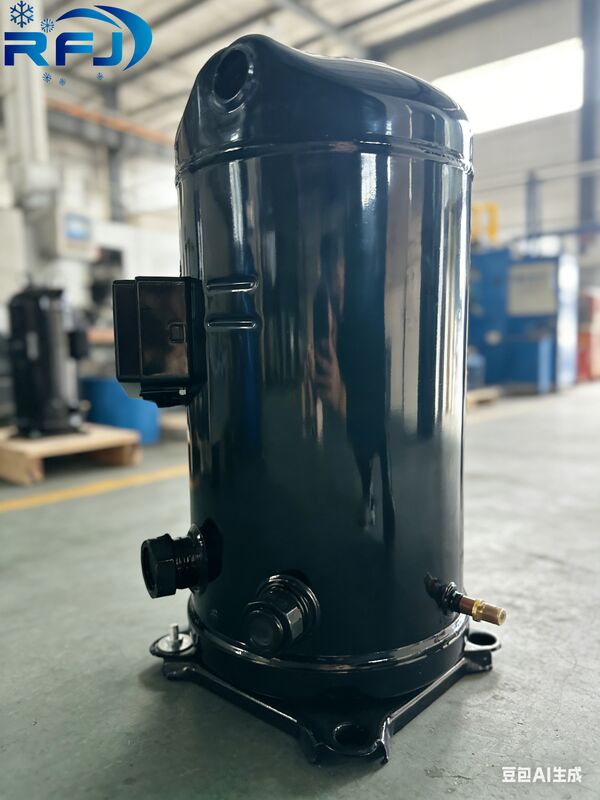

13HP scroll compressor ZR160KCE-TFD-522 for Air-conditioner Condensing Unit

Name: 13HP scroll compressor ZR160KCE-TFD-522 for Air-conditioner Condensing Unit
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: ZR160KCE-TFD-522
Price: 4,000.00 USD
Availability: InStock

Model Number:	ZR160KCE-TFD-522
MOQ:	1pcs
Price:	discussed
Delivery Time:	7-10 working days after receiving payment
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Thailand

Certification:

CE/UL

Piston Type:

Scroll Compressor

Power Source:

AC Power

Drive Mode:

Electric

Horse Power:

13HP

Configuration:

Stationary

Temperature:

Med/High Temperature

Lubrication Style:

Oil-less

Mute:

Yes

Weight:

65Kgs

Dimension(L*W*H):

263.6*284.2*546.1(mm)

Packaging Details:

Wooden case or 12 units in one pallet

Supply Ability:

5,000pcs per month

Highlight:

ac compressor

commercial refrigeration compressor

Product Description

13HP Scroll Compressor ZR160KCE-TFD-522 for Air-conditioner Condensing Unit

Refrigeration 13HP scroll compressor ZR160KCE-TFD-522 for Air-conditioner Condensing Unit

Product Description

Available models include: ZR16M3-TWD-522, ZR19M3-TWD-522, ZR47KC-TFD, ZR94KC-TFD, ZR125KC-TFD, ZR160KC-TFD, ZR61KC-TFD, ZR108KC-TFD, ZR144KC-TFD, ZR72KC-TFD, and more
Scroll compressors suitable for both air conditioning and refrigeration applications
Manufactured in China, Thailand, and Belgium
Packaging: 12 units per pallet

With reliable performance, superior efficiency, quiet operation, and diagnostic capability, we offer the most advanced scroll technology available to support your commercial air-conditioning needs. With the widest R-410A selection available, the Scroll compressor offering ranges from 2-40 HP in singles and up to 80 HP in tandems.

Available ZR Compressor Models - Three Phase

Model NO.	Cooling Capacity (rating point 7.2)	Nominal HP	Displ. cc/rev	Nom Current FLa	Weight (Kg)
ZR22K3-PFJ-522	5240	1.83	30.7	9.6	26
ZR28K3-PFJ-522	6970	2.33	39.2	12.9	27.3
ZR28K3E-PFJ-522	6970	2.33	39.2	12.9	27.3
ZR34K3-PFJ-522	8260	2.83	46.1	13.6	29.5
ZR34K3E-PFJ-522	8260	2.83	46.1	13.6	29.5
ZR36K3-PFJ-522	8850	3	49.5	16.4	29.5
ZR40K3-PFJ-522	9620	3.33	54.19	17.1	32
ZR42K3-PFJ-522	10140	3.5	56.8	17.1	30
ZR47K3-PFJ-522	11500	3.9	64.1	19.3	32.6
ZR68KC-PFJ-522	16800	5.75	93	28.2	43.5
ZR28K3-TFD-522	6970	2.33	39.2	5	26
ZR28K3E-TFD-522	6970	2.33	39.2	5	26
ZR36K3-TFD-522	8850	3	49.5	5.7	29.5
ZR40K3-TFD-522	9260	3.33	51.2	6.4	32
ZR47KC-TFD-522	11400	3.9	63.2	7.2	32.6
ZR47KCE-TFD-522	11400	3.9	63.2	7.2	32.6
ZR48KC-TFD-522	11500	4.1	67.2	7.5	38
ZR48KCE-TFD-522	11500	4.1	67.2	7.5	38
ZR54KC-TFD-522	13000	4.5	73.2	8.2	35.5
ZR57KC-TFD-522	13660	4.75	76.9	8.2	36
ZR57KCE-TFD-522	13660	4.75	76	8.2	36
ZR61KC-TFD-522	14700	5	82.4	10	35.9
ZR61KCE-TFD-522	14700	5	82.4	10	35.9
ZR68KC-TFD-522	16500	5.75	93	10	38.2
ZR72KC-TFD-522	17800	6	98	10	38.2
ZR72KCE-TFD-522	17800	6	98	10	38.2
ZR81KC-TFD-522	19800	6.75	110.6	12	40
ZR81KCE-TFD-522	19800	6.75	110.6	12	40
ZR94KC-TFD-522	23000	8	127.2	16.2	59
ZR94KC-TFD-523	23200	8	127.2	16.2	58.2
ZR94KCE-TFD-523	23200	8	127.2	16.2	58.2
ZR108KC-TFD-522	26670	9	147.5	17.3	64
ZR108KCE-TFD-523	26670	9	147.5	17.3	64
ZR108KC-TFD-523	26900	9	144.5	17.3	62.7
ZR125KC-TFD-522	30660	10	171.4	19.2	64
ZR125KCE-TFD-523	31000	10	165.6	19.2	62.7
ZR125KC-TFD-523	31000	10	165.6	19.2	62.7
ZR144KC-TFD-522	34700	12	191.7	19.6	62.7
ZR144KCE-TFD-523	34700	12	191.7	19.6	62.7
ZR144KC-TFD-523	34700	12	191.7	19.6	62.7
ZR16M3-TWD-551	37700	13	204.3	25	103.1
ZR16M3E-TWD-551	37700	13	204.3	17.3	103
ZR19M3-TWD-551	45900	15	241.9	23.8	112.1
ZR19M3E-TWD-551	45900	15	241.9	23.8	119

Complete ZR Compressor Specifications

Phase	Model	Horse Power/HP	Displacement (m3/h)	Cooling (W)	Input (W)	Weight/Kg	Height /mm
1 Phase	ZR16K3-PFJ	1.33	3.97	4010	1320	25.9	370.4
1 Phase	ZR18K3-PFJ	1.5	4.37	4400	1440	25.9	370.4
1 Phase	ZR20K3-PFJ	1.69	4.76	4890	1600	25.9	370.4
1 Phase	ZR22K3-PFJ	1.83	5.34	5330	1730	25.9	382.8
1 Phase	ZR24K3-PFJ	2	5.92	5920	1870	26.3	382.8
1 Phase	ZR26K3-PFJ	2.17	6.27	6330	2000	25.9	382.8
1 Phase	ZR28K3-PFJ	2.33	6.83	6910	2150	27.2	382.8
1 Phase	ZR30K3-PFJ	2.5	7.3	7380	2290	28.6	405.5
1 Phase	ZR32K3-PFJ	2.67	7.55	7760	2410	28.1	405.5
1 Phase	ZR34K3-PFJ	2.83	8.02	8200	2520	29.5	405.5
1 Phase	ZR36K3-PFJ	3	8.61	8790	2700	29.5	405.5
1 Phase	ZR40K3-PFJ	3.33	9.43	9670	2970	29.9	419.3
1 Phase	ZR42K3-PFJ	3.5	9.94	10100	3120	29.9	419.3
1 Phase	ZR47K3-PFJ	3.92	11.16	11500	3530	30.4	436.6
3 Phase	ZR22K3-TFD	1.83	5.34	5330	1650	25.9	382.8
3 Phase	ZR24K3-TFD	2	5.92	5920	1840	25.9	382.8
3 Phase	ZR26K3-TFD	2.17	6.27	6330	1960	25.9	382.8
3 Phase	ZR28K3-TFD	2.33	6.83	6910	2150	26.3	405.5
3 Phase	ZR30K3-TFD	2.5	7.3	7380	2290	26.3	405.5
3 Phase	ZR32K3-TFD	2.67	7.55	7760	2410	26.3	405.5
3 Phase	ZR34K3-TFD	2.83	8.02	8200	2500	28.6	405.5
3 Phase	ZR36K3-TFD	3	8.61	8790	2680	27.2	405.5
3 Phase	ZR40K3-TFD	3.33	9.43	9670	2950	28.6	419.3
3 Phase	2ZR42K3-TFD	3.5	9.94	10100	3090	28.6	419.3
3 Phase	ZR45KC-TFD	3.75	10.73	11000	3380	28.6	436.3
3 Phase	ZR46KC-TFD	3.83	10.95	11100	3390	34.9	456.9
3 Phase	ZR47KC-TFD	3.92	11.16	11500	3500	28.6	436.3
3 Phase	ZR49KC-TFD	4.08	11.45	11700	3600	35.4	456.9
3 Phase	ZR54KC-TFD	4.5	12.73	12900	4030	35.4	456.9
3 Phase	ZR57KC-TFD	4.75	13.42	13700	4160	35.4	456.9
3 Phase	ZR61KC-TFD	5.08	14.34	14600	4430	35.8	456.9
3 Phase	ZR68KC-TFD	5.75	16.18	16400	4970	38.1	456.9
3 Phase	ZR72KC-TFD	6	17.05	17400	5250	38.1	456.9
3 Phase	ZR81KC-TFD	6.75	19.2	19690	5830	40.9	462.4
3 Phase	ZR84KC-TFD	7	19.75	20330	6140	56.7	495.3
3 Phase	ZR94KC-TFD	8	22.14	22940	7000	58	495.3
3 Phase	ZR108KC-TFD	9	25.15	26250	7830	72.6	533.4
3 Phase	ZR125KC-TFD	10	28.77	30470	9060	78	533.4
3 Phase	ZR90K3-TWD	7.5	20.9	21540	6620	91	542
3 Phase	ZR11M3-TWD	9	24.9	25840	7805	91	542
3 Phase	ZR12M3-TWD	10	28.8	29890	8955	92	542
3 Phase	ZR16M3-TWD	13	35.6	37330	11175	98	557
3 Phase	ZR19M3-TWD	15	42.1	45170	13400	112	596
