Industrial Unit Cold Room Evaporator For Air Conditioning Compressor
Industrial Unit Cold Room Evaporator
,Electric Cold Room Evaporator
,AK634C8 Industrial Evaporator
Industrial Unit Cold Room Evaporator For Air Conditioning Compressor

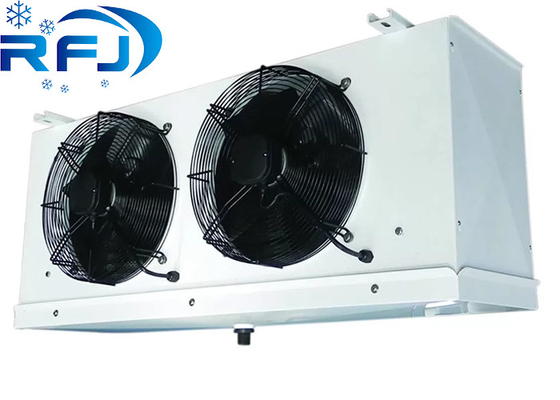

Refrigeration Evaportor HEATCRAFT AUKS air cooler
Specifications:
Evaporators are with axial fans,low-power,noiseless, high efficiency.
Bohn Evaporator:
1. Extended model and capacity range.Medium Temp range, 26 models , 1 ~ 5 fans, 1.6 ~ 24 kw.
Low Temp range, 22 models, 1 ~ 5 fans, 1 ~ 12 kw
2. Larger hanger bars with clawed feet are located in the cabinet.
3.New cabinet design features easy front opening access to electrical panel and a separate panel for refrigeration components .
4.The electrical board is front facing for easy access and the terminal board simplifies wiring.
5.Lanyards are included to hold the drain tray.
AK/KT series for medium temperature:
| Models | AK502R6 | AK502R8 | AK503R5 | AK503R6 | AK503R8 | AK504R6 | AK504R8 | |
| SC2 KW | Ta 0℃ R22 | 26.1 | 29.3 | 35.8 | 39.9 | 44.1 | 50 | 55.9 |
| Te -8℃ R404A | 25.9 | 29.2 | 35.9 | 40.2 | 44 | 50.2 | 56.3 | |
| SC1 KW | Ta 10℃ R22 | 35.2 | 40.6 | 47.6 | 53.2 | 60.9 | 66.8 | 76.1 |
| Te 0℃ R404A | 34.8 | 39.9 | 47.4 | 53 | 60 | 66.5 | 75.4 | |
| Tube Length m | 194 | 259 | 240 | 288 | 348 | 360 | 480 | |
| Surface ㎡ | 105 | 140 | 130 | 156 | 208 | 195 | 260 | |
| Circuit Vol. dm³ | 27 | 35 | 33 | 39 | 53 | 49 | 66 | |
| Fan Mot.No. | 2 | 2 | 3 | 3 | 3 | 4 | 4 | |
| Air Flow m³/h | 12400 | 11300 | 19200 | 18450 | 16900 | 23400 | 21400 | |
| Air Throw m | 16 | 15 | 17 | 17 | 16 | 18 | 17 | |
| Fan Mot.Amper A | 3 | 3 | 4.5 | 4.5 | 4.5 | 6 | 6 | |
| Fan Mot.Power W | 1260 | 1260 | 1890 | 1890 | 1890 | 2520 | 2520 | |
| Electric Defrost A | 13.6 Y | 13.6 Y | 22.6 △ | 22.6 △ | 22.6 △ | 28.4 △ | 28.4△ | |
| Electric Defrost W | 9000 | 9000 | 12900 | 12900 | 12900 | 16200 | 16200 | |
| In Tube Inch. | 5/8 | 7/8 | 7/8 | 7/8 | 1-1/8 | 1-1/8 | 1-1/8 | |
| Out Tube Inch | 1-3/8 | 1-5/8 | 1-5/8 | 1-5/8 | 2-1/8 | 2-1/8 | 2-1/8 | |
| Net Weight kg | 175 | 195 | 235 | 250 | 280 | 315 | 350 | |
| Drawing No. | ⑬ | ⑬ | ⑭ | ⑭ | ⑭ | ⑮ | ⑮ | |
| 630mm | Fin Spacing 4.5mm | |||||||
| Models | AK632R6 | AK632R8 | AK633R6 | AK633R8 | AK634R8 | |||
| SC2 KW | Ta 0℃ R22 | 41.6 | 47.8 | 63.2 | 72.5 | 86.4 | ||
| Te -8℃ R404A | 41.7 | 47.9 | 63.8 | 73 | 86.1 | |||
| SC1 KW | Ta 10℃ R22 | 57.5 | 67 | 87.4 | 102 | 122 | ||
| Te 0℃ R404A | 57.1 | 66.3 | 87 | 101 | 120 | |||
| Tube Length m | 288 | 384 | 432 | 576 | 691 | |||
| Surface ㎡ | 156 | 208 | 234 | 312 | 374 | |||
| Circuit Vol. dm³ | 39 | 53 | 59 | 79 | 95 | |||
| Fan Mot.No. | 2 | 2 | 3 | 3 | 4 | |||
| Air Flow m³/h | 24600 | 22500 | 36900 | 33750 | 42000 | |||
| Air Throw m | 27 | 24 | 29 | 26 | 28 | |||
| Fan Mot.Amper A | 6.4 | 6.4 | 9.6 | 9.6 | 12.8 | |||
| Fan Mot.Power W | 3200 | 3200 | 4800 | 4800 | 6400 | |||
| Electric Defrost A | 18.9△ | 28.4△ | 28.4△ | 42.6△ | 51.3△ | |||
| Electric Defrost W | 10800 | 16200 | 16200 | 24300 | 29250 | |||
| In Tube Inch. | 7/8 | 1-1/8 | 1-1/8 | 1-3/8 | 1-3/8 | |||
| Out Tube Inch | 7/8 | 2-1/8 | 2-1/8 | 2-1/8 | 2-1/8 | |||
| Net Weight kg | 245 | 285 | 330 | 400 | 495 | |||
| Drawing No. | ⑯ | ⑯ | ⑰ | ⑰ | ⑱ | |||
| 500mm | Fin Spacing 7mm | |||||||
| Models | AK502C6 | AK502C8 | AK503C5 | AK503C6 | AK503C8 | AK504C6 | AK504C8 | |
| SC3 KW | Ta -18℃ R22 | 16 | 17.9 | 20.8 | 23.7 | 26.9 | 30 | 34.5 |
| Te -25℃ R404A | 16.2 | 17.5 | 20.6 | 23.7 | 26.6 | 29.9 | 34.4 | |
| SC2 KW | Ta 0℃ R22 | 22.6 | 25.4 | 30.5 | 33.9 | 38.1 | 43.5 | 48.5 |
| Te -8℃ R404A | 22.7 | 25.8 | 30.8 | 34.4 | 38.9 | 44 | 49.5 | |
| SC4 KW | Ta -25℃ R22 | 12.5 | 14 | 16.3 | 18.7 | 21.1 | 23.5 | 27.3 |
| Te -31℃ R404A | 12.6 | 13.7 | 16.1 | 18.6 | 20.8 | 23.3 | 27.2 | |
| Tube Length m | 194 | 259 | 240 | 288 | 384 | 360 | 480 | |
| Surface ㎡ | 70 | 94 | 87 | 104 | 139 | 130 | 174 | |
| Circuit Vol. dm³ | 27 | 35 | 33 | 39 | 53 | 49 | 66 | |
| Fan Mot.No. | 2 | 2 | 3 | 3 | 3 | 4 | 4 | |
| Air Flow m³/h | 13000 | 12000 | 20100 | 19350 | 17950 | 25000 | 22800 | |
| Air Throw m | 17 | 16 | 18 | 18 | 17 | 19 | 18 | |
| Fan Mot.Amper A | 3 | 3 | 4.5 | 4.5 | 4.5 | 6 | 6 | |
| Fan Mot.Power W | 1260 | 1260 | 1890 | 1890 | 1890 | 2520 | 2520 | |
| Electric Defrost A | 13.6 Y | 13.6 Y | 22.6 △ | 22.6 △ | 22.6 △ | 28.4 △ | 28.4 △ | |
| Electric Defrost W | 9000 | 9000 | 12900 | 12900 | 12900 | 16200 | 16200 | |
| In Tube Inch. | 5/8 | 7/8 | 7/8 | 7/8 | 1-1/8 | 1-1/8 | 1-1/8 | |
| Out Tube Inch | 1-3/8 | 1-5/8 | 1-5/8 | 1-5/8 | 2-1/8 | 2-1/8 | 2-1/8 | |
| Net Weight kg | 177 | 197 | 238 | 253 | 283 | 320 | 355 | |
| Drawing No. | ⑬ | ⑬ | ⑭ | ⑭ | ⑭ | ⑮ | ⑮ | |
| 630mm | Fin Spacing 7mm | |||||||
| Models | AK632C6 | AK632C8 | AK633C6 | AK633C8 | AK634C8 | |||
| SC3 KW | Ta -18℃ R22 | 27.7 | 30.5 | 39.6 | 46.6 | 54.2 | ||
| Te -25℃ R404A | 28.1 | 30.1 | 39.1 | 46.2 | 52.7 | |||
| SC2 KW | Ta 0℃ R22 | 38.3 | 44.6 | 58.2 | 67.7 | 81.2 | ||
| Te -8℃ R404A | 38.5 | 44.8 | 58.8 | 68.3 | 81 | |||
| SC4 KW | Ta -25℃ R22 | 21.9 | 23.8 | 30.8 | 36.5 | 41.9 | ||
| Te -31℃ R404A | 22.1 | 23.4 | 30.3 | 36 | 40.5 | |||
| Tube Length m | 288 | 384 | 432 | 576 | 691 | |||
| Surface ㎡ | 104 | 139 | 156 | 209 | 250 | |||
| Circuit Vol. dm³ | 39 | 53 | 59 | 79 | 95 | |||
| Fan Mot.No. | 2 | 2 | 3 | 3 | 4 | |||
| Air Flow m³/h | 26100 | 24000 | 39150 | 36000 | 44700 | |||
| Air Throw m | 29 | 27 | 31 | 29 | 31 | |||
| Fan Mot.Amper A | 6.4 | 6.4 | 9.6 | 9.6 | 12.8 | |||
| Fan Mot.Power W | 3200 | 3200 | 4800 | 4800 | 6400 | |||
| Electric Defrost A | 18.9 △ | 28.4 △ | 28.4△ | 42.6 △ | 51.3 △ | |||
| Electric Defrost W | 10800 | 16200 | 16200 | 24300 | 29250 | |||
| In Tube Inch. | 7/8 | 1-1/8 | 1-1/8 | 1-3/8 | 1-3/8 | |||
| Out Tube Inch | 1-5/8 | 2-1/8 | 2-1/8 | 2-1/8 | 2-1/8 | |||
| Net Weight kg | 240 | 280 | 320 | 390 | 480 | |||
| Drawing No. | ⑯ | ⑯ | ⑰ | ⑰ | ⑱ |
