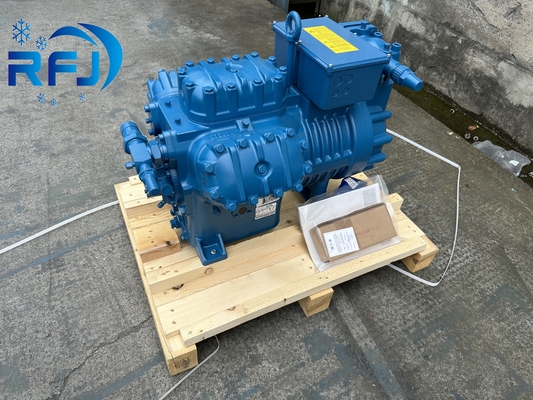

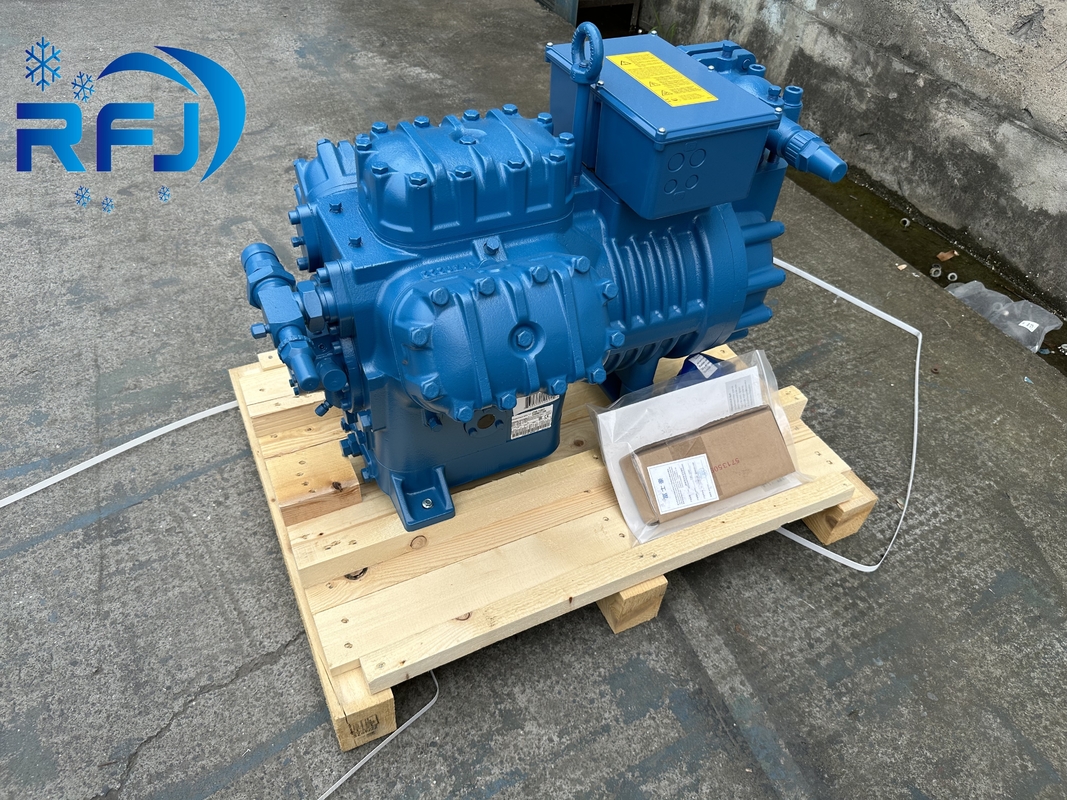

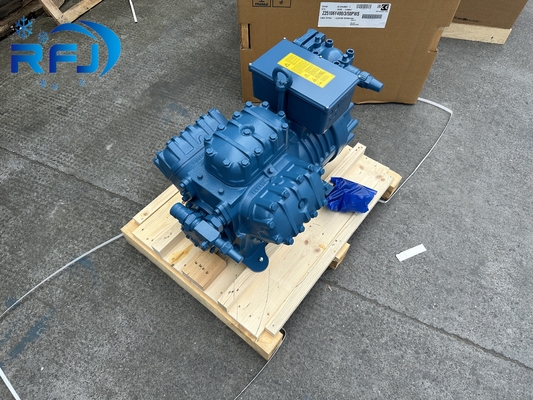

Reciprocating compressor Z30-126Y for Frascold
Frascold reciprocating compressor Z30-126Y
,refrigeration compressor with warranty
,Z30-126Y reciprocating compressor for refrigeration
| Specification | Value |
|---|---|
| Displacement [m³/h] | 126 |
| Cylinders quantity | 6 |
| Oil charge [l] | 7.20 |
| Oil type | POE68 |
| Type of lubrication | Oil pump |
| Net weight [kg] | 229 |
| Specification | Value |
|---|---|
| Power supply | 400V/3Ph/50Hz |
| Maximum operating current [A] | 55.7 |
| Locked rotor amperage [A] | 132.6 |
| Locked rotor amperage, DOL [A] | 224.4 |
| Maximum motor frequency [Hz] | 70 |
| Minimum motor frequency [Hz] | 30 |
| Nominal motor power for 50 Hz [kW] | 22.37 |
| Nominal motor power for 50 Hz [HP] | 30.00 |
| Motor connection | PWS |
| Specification | Value |
|---|---|
| Suction valve diameter (SV) [inch] | 2 1/8 |
| Suction valve diameter (SV) [mm] | 54.0 |
| Discharge valve diameter (DV) [inch] | 1 3/8 |
| Discharge valve diameter (DV) [mm] | 35.0 |
| Length [mm] | 765 |
| Height [mm] | 536 |
| Width [mm] | 509 |
Approved refrigerants: R22, R134a, R404A, R407A, R407F, R448A, R449A, R450A, R452A, R507, R513A
Capacity control: None, Step (option), Inverter (option)
- Good seal reduces the load
- Long lifespan, no need to check or replace during maintenance
- Strong thrust bearing design
- Suitable for all standard voltages
- Small leak gap
- Fewer parts - less chance of breakage and downtime
