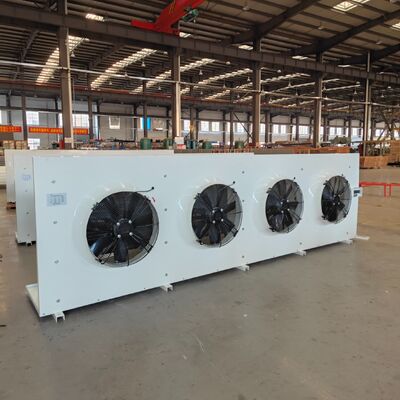

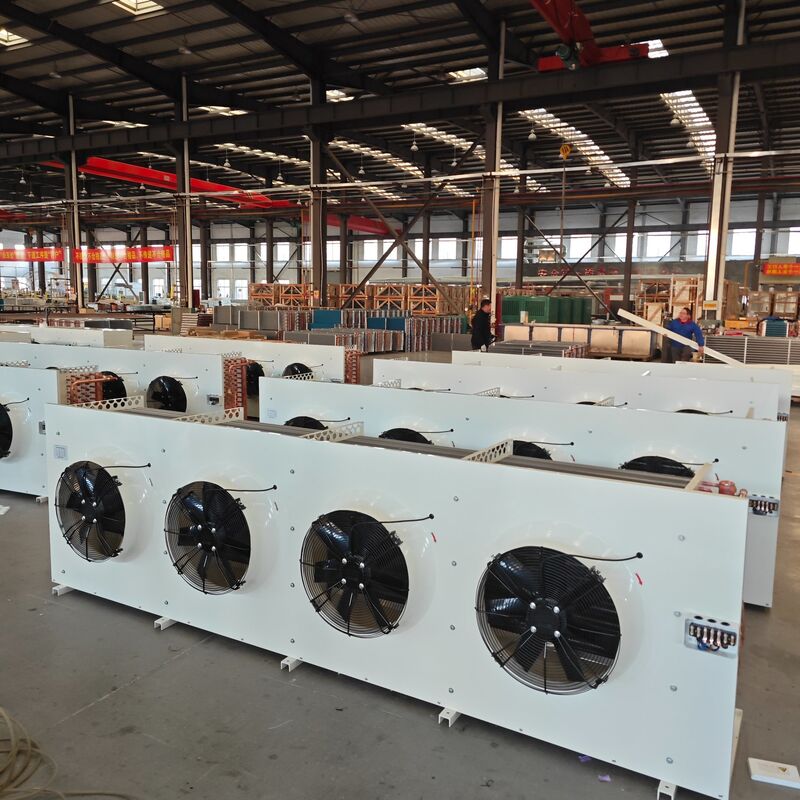

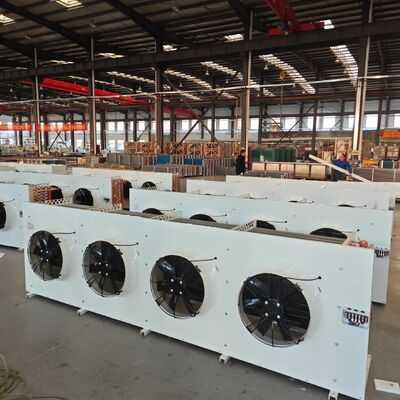

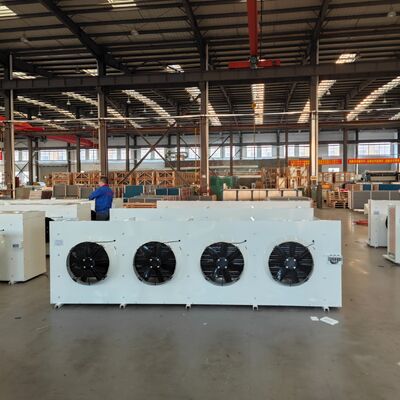

High-efficiency DL340 Air Cooler for Super Large Commercial Cold Warehouse
DL340 commercial air cooler
,large cold warehouse evaporator
,high-efficiency refrigeration evaporator
- Strong Cooling Performance: 69.5kW nominal cooling capacity, perfectly matched for 340㎡ spacious cold rooms, maintaining constant low temperature stability year-round.
- Balanced Air Circulation: 24000m³/H stable air volume with 15m air supply distance, ensuring even temperature distribution in ultra-large storage spaces.
- Four-fan Stable Configuration: Equipped with four 500mm diameter fans under 380V voltage, suitable for long-term uninterrupted commercial operation.
- Quick Frost Removing Ability: 9600W fin defrost and 2400W tray defrost work together, rapidly clearing frost in high humidity refrigeration environments.
- Large-flow Pipeline Design: 38.6L large tube volume plus enlarged pipe diameter, accelerating refrigerant flow and significantly improving heat exchange efficiency.
| Parameter | Specification |
|---|---|
| Model | DL-69.5/340 (DL340) |
| Nominal Refrigeration Capacity | 69.5 kW |
| Applicable Cold Room Area | 340 ㎡ |
| Tube Volume | 38.6 L |
| Refrigerant Inlet/Outlet Diameter | φ32 / φ50 mm |
| Fan Quantity | 4 units |
| Fan Diameter | 500 mm |
| Working Voltage | 380 V |
| Total Fan Power | 1656 W (4 × 414 W) |
| Air Volume | 24000 m³/H |
| Air Throw Range | 15 m |
| Fin Defrost Power | 9600 W |
| Drain Pan Defrost Power | 2400 W |
| Supply Ability | 1000000 pieces/year, MOQ is usually one piece |
|---|---|
| Shipping Time | Sample order in stock within 3 days, Bulk order generally 10-15 working days after receiving deposit |
| Shipping Method | Support by sea, by air, by express (DHL, FedEx, UPS...) |
| Payment Terms | TT/Western Union - 30% Advance Payment, 70% Final Payment |
| Shipping Port | Ningbo Port, Shanghai Port, Shenzhen Port |
2. For any Bulk order, generally we ship compressor in 10-15 working days after receiving deposit.
