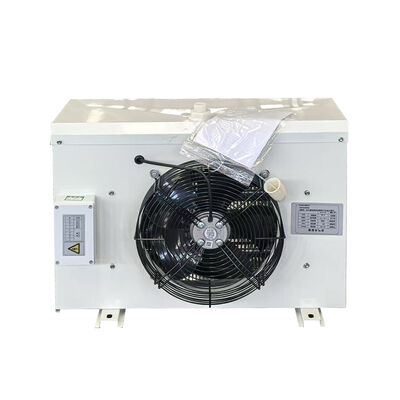

Compact Low-noise 1.225kW 7㎡ DD7 Air Cooler
- Precise Mini Cooling Performance: 1.225kW nominal refrigeration capacity, perfectly matched for 7㎡ tiny cold rooms, maintaining stable low temperature for small-volume fresh preservation.
- Balanced Gentle Airflow Delivery: 1563m³/H moderate airflow with 8m air throw range, realizing even cooling without over-drying stored goods in compact cold space.
- Single-Fan Energy-saving Structure: Single 300mm diameter fan supports 380/220V dual voltage, low power consumption of only 75W for long-term cost-effective operation.
- Compact Optimized Pipeline Layout: 1.4L small tube volume with φ12/φ19mm inlet-outlet tubing, guarantee smooth refrigerant circulation for stable heat exchange efficiency.
- Dual Independent Defrost Design: 1200W fin defrost power plus 600W drain pan defrost power, quickly eliminate thin frost under high-humidity mini-cold-room environment.
| Parameter | Specification |
|---|---|
| Model | DD-1.2/7 (DD7) |
| Nominal Refrigeration Capacity | 1.225kW(1225W) |
| Applicable Cold Room Area | 7㎡ |
| Tube Volume | 1.4L |
| Refrigerant Inlet/Outlet Diameter | φ12/φ19mm |
| Fan Quantity | 1 unit |
| Fan Diameter | 300mm |
| Working Voltage | 380/220V |
| Total Fan Power | 75W |
| Air Volume | 1563m³/H |
| Air Throw Range | 8m |
| Fin Defrost Power | 1200W |
| Drain Pan Defrost Power | 600W |
| Supply Ability | 1000000 pieces/year, MOQ is usually one piece |
|---|---|
| Shipping Time | Sample order in stock within 3 days, Bulk order generally 10-15 working days after receiving deposit |
| Shipping Method | Support by sea, by air, by express (DHL, FedEx, UPS...) |
| Payment Terms | TT/Western Union 30% Advance Payment, 70% Final Payment |
| Shipping Port | Ningbo Port, Shanghai Port, Shenzhen Port |
2. Piston: Maneurop MT, NTZ, MTZ series, GMCC
3. Rotary compressor: Toshiba
4. Semi-hermetic: CPL, Carrier
5. Screw compressor: Tecumseh, Hanbell, Refcomp
2. For any Bulk order, generally we ship compressor in 10-15 working days after receiving deposit.
