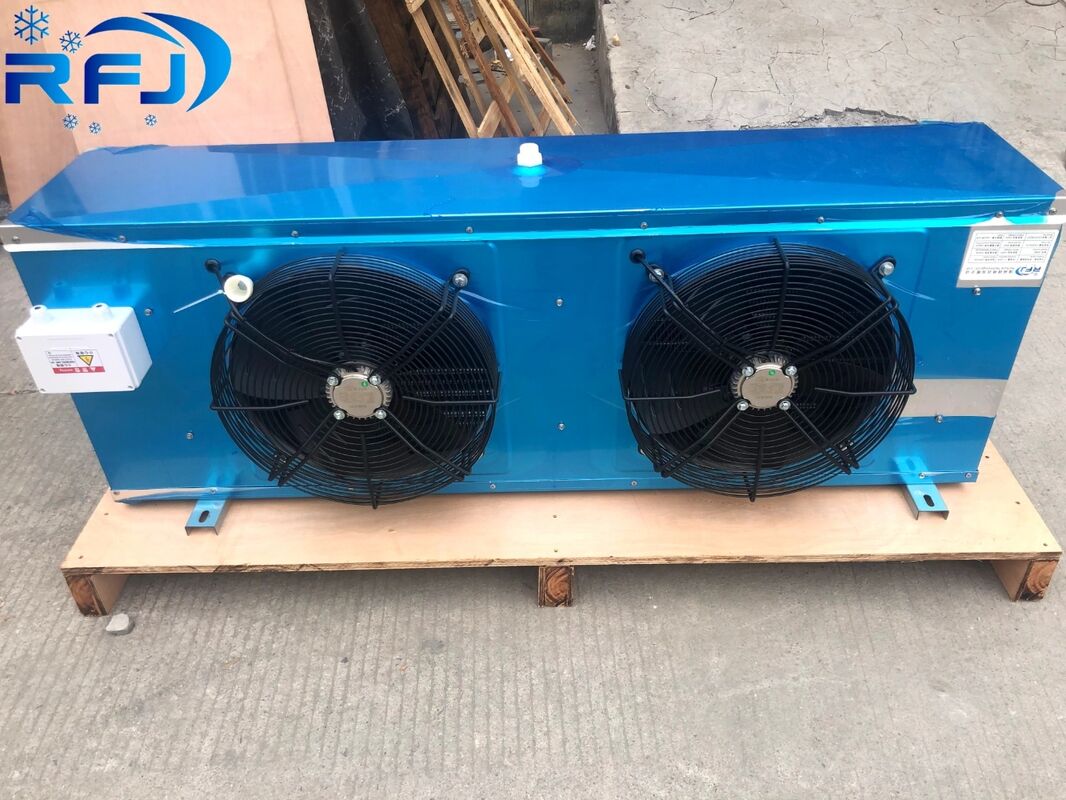

RFJ Premium Anti-frost 11.2kW DD60 Air Cooler
The RFJ Premium Anti-frost 11.2kW DD60 Air Cooler delivers professional-grade refrigeration performance for medium-sized cold storage applications.
- Strong Continuous Cooling Output: Delivers continuous 11.2kW rated cooling capacity tailored for 60㎡ medium cold rooms, sustaining steady constant temperature to satisfy bulk fresh food and frozen goods storage demands.
- Far-reaching Full-space Air Circulation: Equipped with 11000m³/H large airflow and 15m blowing range, its circulating air covers every corner of cold storage to avoid abnormal local temperature accumulation.
- Industrial-grade Dual-fan Stable Configuration: Two 500mm-diameter fans with single power of 414W run on exclusive 380V industrial voltage, reliably coping with long-time nonstop industrial refrigeration operation.
- Differentiated Dual-circuit Defrost Setup: Separated dual defrost circuit with 6000W for fin and 1500W for drain pan efficiently solves frosting trouble on fins and base under high-humidity working conditions.
- Enlarged Optimized Refrigerant Pipeline: 10.1L large tube volume together with φ19-inlet & φ32-outlet tubing boosts refrigerant circulation volume and lifts the upper limit of overall heat exchange via optimized pipeline layout.
| Parameter | Specification |
|---|---|
| Model | DD-11.2/60(DD60) |
| Nominal Refrigeration Capacity | 11.2kW(11200W) |
| Applicable Cold Room Area | 60㎡ |
| Tube Volume | 10.1L |
| Refrigerant Inlet/Outlet Diameter | φ19/φ32mm |
| Fan Quantity | 2 units |
| Fan Diameter | 500mm |
| Working Voltage | 380V |
| Total Fan Power | 828W(2×414W) |
| Air Volume | 11000m³/H |
| Air Throw Range | 15m |
| Fin Defrost Power | 6000W |
| Drain Pan Defrost Power | 1500W |
With a history exceeding 20 years, Shenzhen Ruifujie is a large-scale professional refrigeration enterprise. We produce high-quality scroll, piston, rotor, semi-hermetic and screw refrigeration compressors, which are exported to major global markets. We have strong technical capabilities in refrigeration field, provide customized OEM/ODM refrigeration services, and have established long-term stable partnerships with manufacturers and wholesalers worldwide, gaining wide customer support.
| Parameter | Details |
|---|---|
| Supply Ability | 1000000 pieces/year, MOQ is usually one piece |
| Shipping Time | Sample order in stock within 3 days, Bulk order generally 10-15 working days after receiving deposit |
| Shipping Method | Support by sea, by air, by express (DHL, FedEx, UPS...) |
| Payment Terms | TT/Western Union - 30% Advance Payment, 70% Final Payment |
| Shipping Port | Ningbo Port, Shanghai Port, Shenzhen Port |
2. For any Bulk order, generally we ship compressor in 10-15 working days after receiving deposit.
