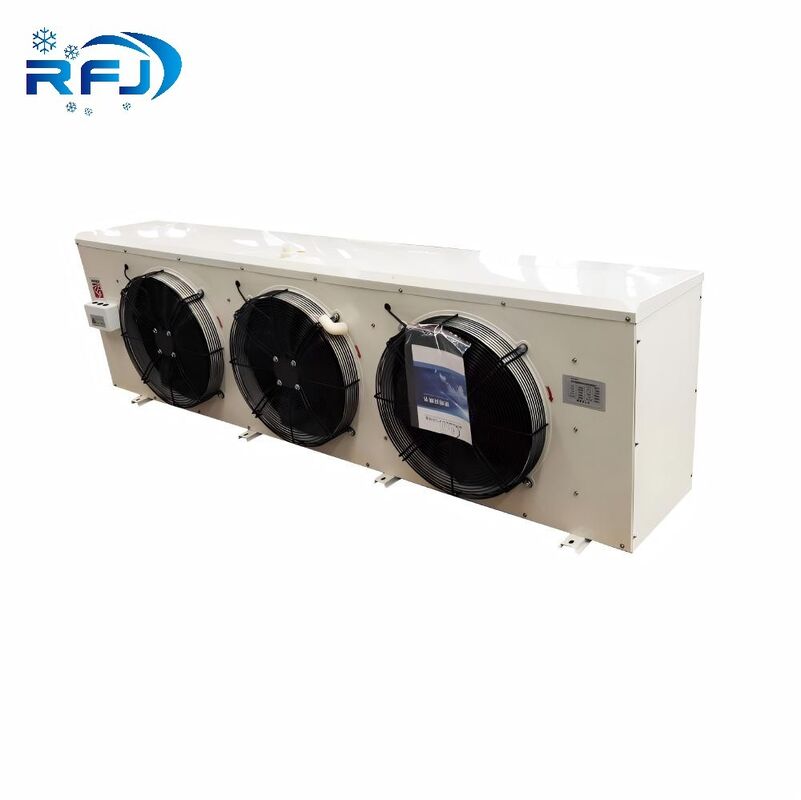

RFJ Weather-proof Flow-stabilized 18.7kW DD100 Air Cooler
RFJ Weather-proof Flow-stabilized 18.7kW DD100 Air Cooler
- High-load Continuous Cooling Property: 18.7kW rated cooling capacity matches 100㎡ large cold storage, stably sustain low-temperature environment for bulk frozen aquatic and meat long-term preservation.
- Long-distance Stereoscopic Air Distribution: 18000m³/H super large air volume with 16m effective blowing range, eliminate layered temperature difference inside extra-large cold room.
- Three-unit Industrial Fan Configuration: Three pieces of Φ500mm fans, total input power 1242W under single 380V industrial voltage, adapt to round-the-clock uninterrupted heavy-load operation.
- High-power Split Defrost System: 8000W fin heating power plus 4000W drain pan heating power, thoroughly eliminate thick layered frost under high-humidity long-running working conditions.
- Oversized Smooth Flow Pipeline Design: 17.3L internal cylinder volume with φ25 inlet & φ40 outlet, improve refrigerant flow efficiency and maximize the overall heat exchange capability of the unit.
| Parameter | Specification |
|---|---|
| Model | DD-18.7/100 (DD100) |
| Nominal Refrigeration Capacity | 18.7kW (18700W) |
| Applicable Cold Room Area | 100㎡ |
| Tube Volume | 17.3L |
| Refrigerant Inlet/Outlet Diameter | φ25/φ40mm |
| Fan Quantity | 3 units |
| Fan Diameter | 500mm |
| Working Voltage | 380V |
| Total Fan Power | 1242W (3×414W) |
| Air Volume | 18000m³/H |
| Air Throw Range | 15m |
| Fin Defrost Power | 8000W |
| Drain Pan Defrost Power | 4000W |
With more than 20 years of experience, Shenzhen Ruifujie is a large modern refrigeration enterprise specializing in refrigeration compressors. We produce scroll, piston, rotor, semi-hermetic and screw compressors, exported to countries like Pakistan, Turkey, Canada and Russia. We provide professional OEM/ODM services, have strong technical strength in refrigeration, and win global customers' praise for high-quality compressors and good services.
| Supply Ability | 1000000 pieces/year, MOQ is usually one piece |
|---|---|
| Shipping Time | Sample order in stock within 3 days, Bulk order generally 10-15 working days after receiving deposit |
| Shipping Method | Support by sea, by air, by express (DHL, FedEx, UPS...) |
| Payment Terms | TT/Western Union 30% Advance Payment, 70% Final Payment |
| Shipping Port | Ningbo Port, Shanghai Port, Shenzhen Port |
2. For any Bulk order, generally we ship compressor in 10-15 working days after receiving deposit.
