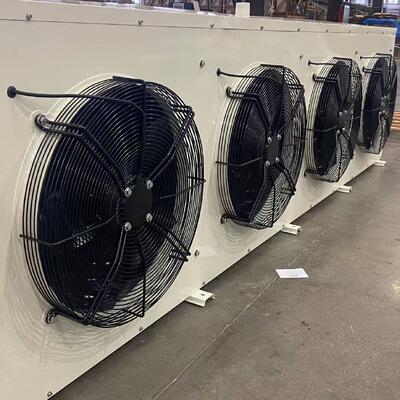

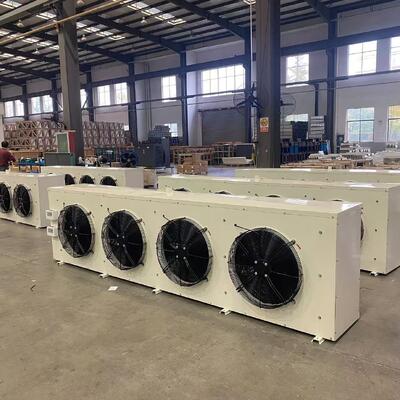

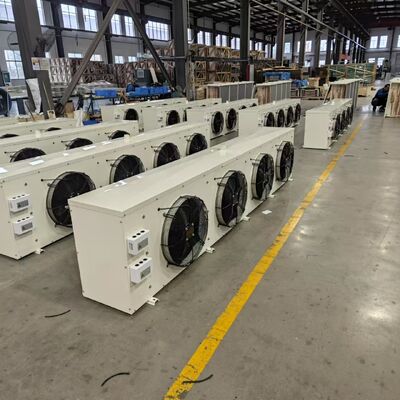

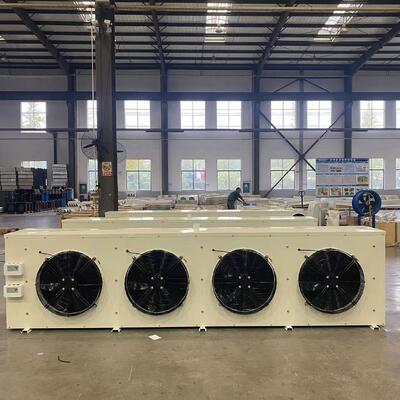

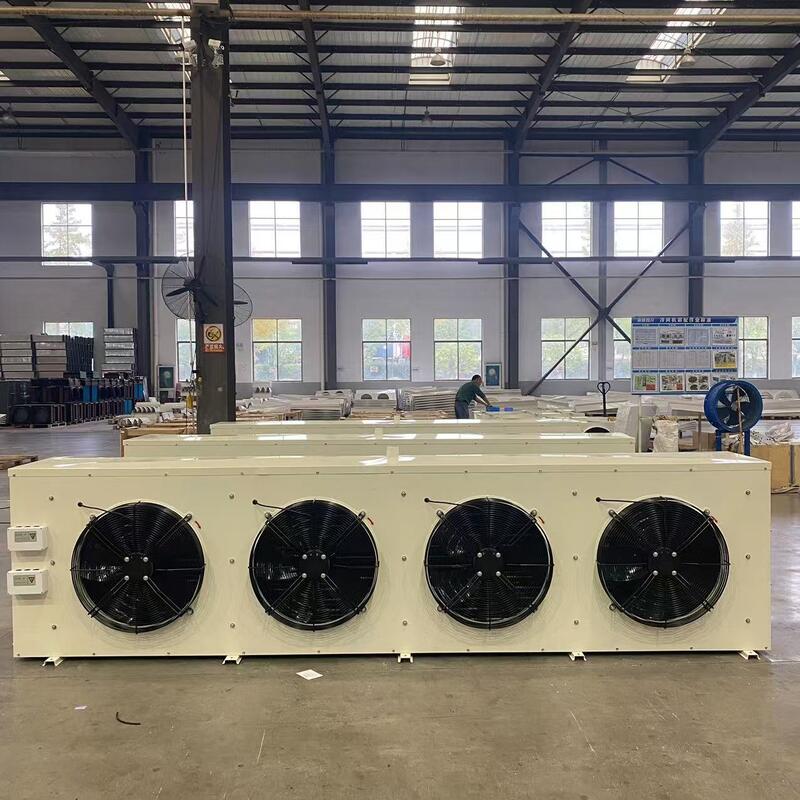

RFJ Resin-coated Pulse-defrost 26.2kW DD140 Air Cooler Evaporator
RFJ Resin-coated Pulse-defrost 26.2kW DD140 Air Cooler Evaporator
- High-capacity Constant Refrigeration Output: Delivers steady 26.2kW rated cooling capacity tailored for 140㎡ medium cold storage, maintaining constant low temperature round-the-clock for bulk frozen goods and cold-chain transitional products.
- Four-way Large-volume Even Air Delivery: Equipped with 24000m³/H large airflow and 15m blowing range, four sets of fans realize full-space air circulation to reduce temperature deviation between different storage zones.
- Four-units Industrial Fan Combination: Four 500mm-diameter fans with 414W single power run on standard 380V industrial voltage, capable of long-duration full-load nonstop industrial refrigeration operation.
- Enhanced Dual-path Electric Defrost Setup: Separate dual heating circuits with 9600W fin defrost power and 4800W drain pan power rapidly clear heavy frost buildup on coils under persistent high humidity conditions.
- Enlarged Caliber Circulation Pipeline: 22.7L inner tank volume matched with φ25 inlet & φ48 outlet tubing boosts refrigerant flow volume and improves the upper limit of overall heat exchange efficiency.
| Parameter | Specification |
|---|---|
| Model | DD-26.2/140 (DD140) |
| Nominal Refrigeration Capacity | 26.2kW (26200W) |
| Applicable Cold Room Area | 140 ㎡ |
| Tube Volume | 22.7 L |
| Refrigerant Inlet/Outlet Diameter | φ25 / φ48 mm |
| Fan Quantity | 4 units |
| Fan Diameter | 500 mm |
| Working Voltage | 380 V |
| Total Fan Power | 1656 W (4×414 W) |
| Air Volume | 24000 m³/H |
| Air Throw Range | 15 m |
| Fin Defrost Power | 9600 W |
| Drain Pan Defrost Power | 4800 W |
Shenzhen Ruifujie Technology Co., Ltd. has more than 20 years of industry experience, specializing in high-quality refrigeration products and refrigeration compressors. Our main products include scroll, piston, rotor, semi-hermetic and screw compressors, which are sold to Jaipur, New Delhi, the USA, UK, Russia and other global regions. We have rich experience in ice machines and cold storage equipment, offer customized OEM/ODM services, and are highly recognized by global customers for premium refrigeration compressors and reasonable prices.
| Supply Ability | 1000000 pieces/year, MOQ is usually one piece |
|---|---|
| Shipping Time | Sample order in stock within 3 days, Bulk order generally 10-15 working days after receiving deposit |
| Shipping Method | Support by sea, by air, by express (DHL, FedEx, UPS...) |
| Payment Terms | TT/Western Union 30% Advance Payment, 70% Final Payment |
| Shipping Port | Ningbo Port, Shanghai Port, Shenzhen Port |
2. For any Bulk order, generally we ship compressor in 10-15 working days after receiving deposit.
