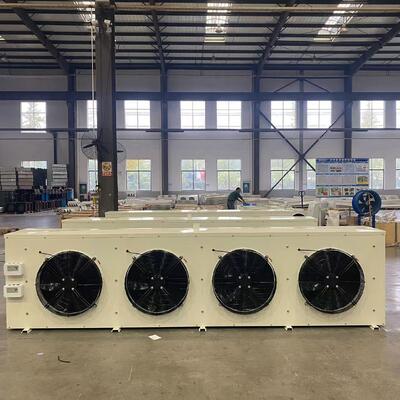

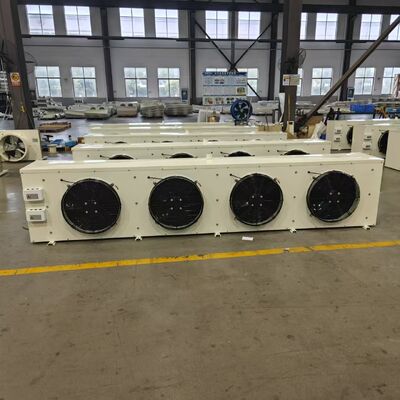

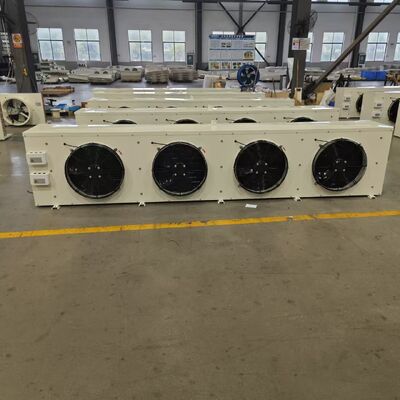

RFJ Abrasion-proof Auto-drain 29.8kW DD160 Evaporator for Large Frozen Food Processing Cold Warehouse
- Superior Large-scale Refrigeration Capacity: Rated cooling power of 29.8kW matches 160㎡ large cold storage space, steadily sustaining low-temperature environment for bulk frozen meat and aquatic goods long-term stock preservation.
- Full-space Homogenized Air Circulation: Delivers 24000m³/H large airflow paired with 15m fixed blowing range, eliminating layered temperature difference across different storage zones inside big cold warehouse.

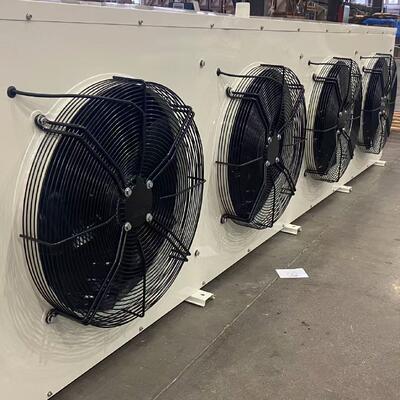

- Quadruple Industrial Fan Matching Structure: Four pieces of 500mm-diameter fans with single power 414W, powered by 380V industrial voltage to satisfy uninterrupted round-the-clock heavy-duty refrigeration operation.
- High-power Split Independent Defrost System: 9600W fin heating power plus 4800W drain pan heating power, efficiently clearing accumulated thick frost under long-term high humidity working surroundings.
- Optimized Large-diameter Refrigerant Pipeline: 25.8L internal tank volume with φ25 inlet & φ48 outlet pipe, improving refrigerant circulation efficiency and lifting overall heat exchange performance.
| Parameter | Specification |
|---|---|
| Model | DD-29.8/160(DD160) |
| Nominal Refrigeration Capacity | 29.8kW(29800W) |
| Applicable Cold Room Area | 160㎡ |
| Tube Volume | 25.8L |
| Refrigerant Inlet/Outlet Diameter | φ25/φ48mm |
| Fan Quantity | 4 units |
| Fan Diameter | 500mm |
| Working Voltage | 380V |
| Total Fan Power | 1656W(4×414W) |
| Air Volume | 24000m³/H |
| Air Throw Range | 15m |
| Fin Defrost Power | 9600W |
| Drain Pan Defrost Power | 4800W |
| Supply Ability | 1000000 pieces/year, MOQ is usually one piece |
|---|---|
| Shipping Time | Sample order in stock within 3 days, Bulk order generally 10-15 working days after receiving deposit |
| Shipping Method | Support by sea, by air, by express (DHL, FedEx, UPS...) |
| Payment Terms | TT/Western Union - 30% Advance Payment, 70% Final Payment |
| Shipping Port | Ningbo Port, Shanghai Port, Shenzhen Port |
A: Usually we quote within 8 hours after we get your inquiry.
A: Semi-hermetic compressor, Hermetic Compressor, Condenser Unit, Air Cooler, Spare Parts, Chillers and Evaporators
A: We guarantee product quality with a 1-year warranty. Our team ensures reliable support throughout and after your purchase.
A: Yes, we can print your private logo according to your request.
A: TT/WESTERN UNION
