RFJ 220V 380V 1.7KW DJ10 Evaporator for Small Household Fresh-keeping Cold Room

Name: RFJ 220V 380V 1.7KW DJ10 Evaporator for Small Household Fresh-keeping Cold Room
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: DJ-1.7/10
Price: 5,000.00 USD
Availability: InStock

Brand Name:	Ruifujie
Model Number:	DJ-1.7/10
MOQ:	1
Price:	Discussed
Delivery Time:	1 Month
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model:

DJ-1.7/10

Nominal Refrigeration Capacity:

1.7KW

Matched Area:

10㎡

Rated Voltage:

220/380V

Application:

Cold Room,Freezer

MOQ:

1Sets

Warranty:

1year

Packing:

Woodcase Packing

Packaging Details:

WOODEN CASE

Supply Ability:

100PC

Product Description

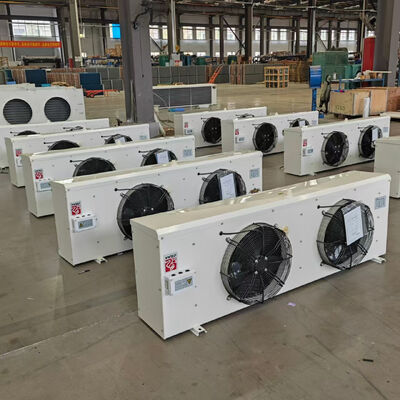

RFJ 220V 380V 1.7KW DJ10 Evaporator for Small Household Fresh-keeping Cold Room

Product Overview

RFJ 220V 380V 1.7KW DJ10 Evaporator designed for small household fresh-keeping cold rooms, providing reliable cooling performance for compact storage applications.

Product Advantages

Compact Stable Cooling Output: Rated 1.7kW refrigeration capacity matches 10㎡ small walk-in cold room, steadily sustaining constant low temperature for small-batch fruit and dairy fresh storage.
Gentle Uniform Indoor Airflow: 3126m³/h nominal air volume with 8m effective blowing range, ensuring even ambient temperature without local over-cooling inside compact cold space.
Dual Small-size Fan Flexible Voltage Design: Two pieces of Φ300mm fans with single 75W power, compatible with 380/220V dual alternating voltage to fit small-scale on-site power supply conditions.
Matching Dual Independent Electric Defrost: 2400W fin heating power plus 1200W drain pan defrost power, efficiently eliminating light frost buildup under regular high-humidity working environment.
Compact Optimized Refrigerant Pipeline: 2.7L inner tube volume equipped with φ12 inlet & φ19 outlet pipeline, guaranteeing smooth refrigerant circulation and stable unit heat exchange performance.

Technical Specifications

Parameter	Specification
Model	DJ-1.7/10(DJ10)
Nominal Cooling Capacity	1.7kW(1700W)
Nominal Area	10㎡
Tube Volume	2.7L
Inlet/Outlet Tube	φ12/φ19mm
Fan Quantity	2 units
Fan Diameter	300mm
Working Voltage	380/220V
Total Fan Power	150W(2×75W)
Air Volume	3126m³/h
Air Throw Range	8m
Fin Defrost Power	2400W
Pan Defrost Power	1200W

Company Profile

Shenzhen Ruifujie Technology Co., Ltd. has over 20 years of professional experience in the refrigeration industry. We independently develop scroll, piston, rotor, semi-hermetic and screw compressors, with rich experience in cold storage, freezing equipment and ice machines. We offer comprehensive OEM/ODM refrigeration services, export refrigeration products globally, and are praised for reliable compressors, professional services and competitive pricing.

Packaging and Shipping

Supply Ability	1000000 pieces/year, MOQ is usually one piece
Shipping Time	Sample order in stock within 3 days, Bulk order generally 10-15 working days after receiving deposit
Shipping Method	Support by sea, by air, by express (DHL, FedEx, UPS...)
Payment Terms	TT/Western Union - 30% Advance Payment, 70% Final Payment
Shipping Port	Ningbo Port, Shanghai Port, Shenzhen Port

Frequently Asked Questions

Q: What is your minimum order quantity?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer's exact situation.

Q: What are the main products?

A: Semi-hermetic compressor, Hermetic Compressor, Condenser Unit, Air Cooler, Spare Parts, Chillers and Evaporators.

Q: When can I get the price?

A: Usually we quote within 8 hours after we get your inquiry.

Q: Can we custom our own logo?

A: Yes, we can print your own logo according to your request.

Q: What is your payment terms?

A: TT/WESTERN UNION
