| Brand Name: | Ruifujie |
| Model Number: | DSL-16.4/80 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |

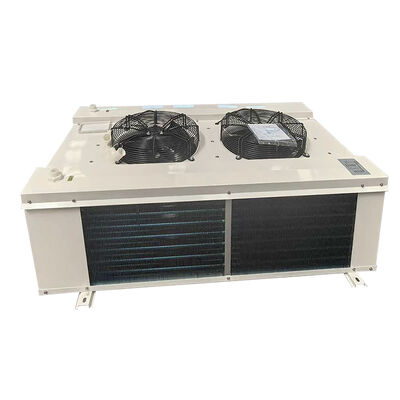

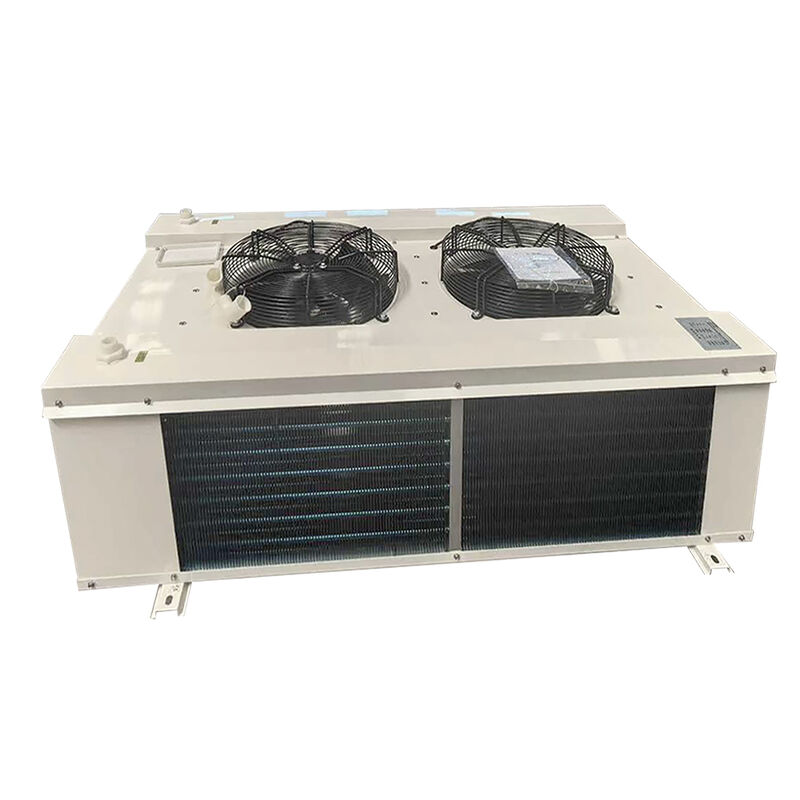

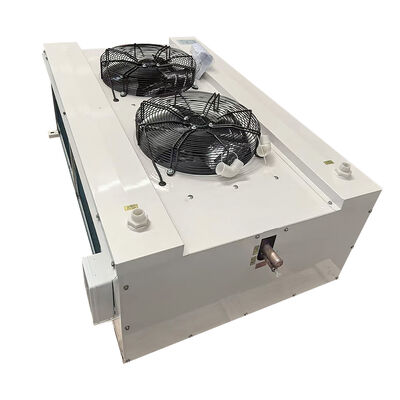

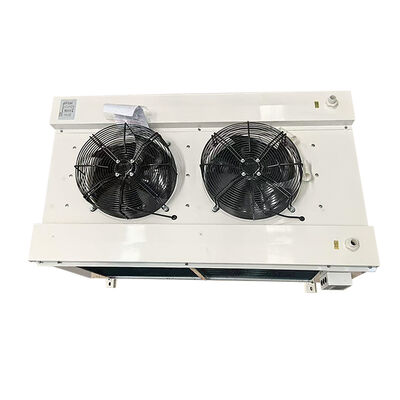

The DSL-21.5/105 large capacity cooler evaporator is a dual-outlet ceiling-mounted refrigeration unit designed for medium-large medium-temperature cold storage of around 105㎡. Ideal for applications including fresh e-commerce regional distribution warehouses, dairy product cold storage, and large central kitchen raw material preservation rooms.
With a nominal cooling capacity of 21500W and two 500mm fans delivering 2×6500m³/h bidirectional airflow, this unit achieves wide and uniform air coverage across large spaces. This effectively reduces temperature differences between the center and corners of the cold room while lowering dehydration loss of stored goods.
Medium-large cold storage facilities with frequent cargo loading and unloading often face challenges such as large heat load fluctuations, local temperature overruns, and uneven frost accumulation on heat exchange surfaces. These issues can weaken refrigeration efficiency and increase operational costs. This cooler evaporator addresses these challenges through an optimized dual-air duct structure that quickly compensates for temperature rises caused by door openings, combined with a split electric defrost system to maintain stable heat exchange performance during long-term continuous operation.
From a model selection perspective, this dual-outlet cooler evaporator is more suitable for rectangular large-span cold rooms than single-outlet models. Its two-way air supply covers a wider horizontal range and reduces temperature dead zones at both ends of the warehouse without requiring additional units.
| Model | DSL-21.5/105 |
|---|---|
| Nominal Cooling Capacity | 21500 W |
| Heat Exchange Area | 105 ㎡ |
| Tube Volume | 14.4 L |
| Inlet & Outlet Pipe Diameter | φ19 mm / φ32 mm |
| Coil Defrosting Power | 3000 W |
| Water Dish Defrosting Power | 3000 W |
Ruifujie is a well-established modern refrigeration manufacturer with over 20 years of industry expertise. Our extensive product portfolio encompasses scroll, piston, rotor, semi-hermetic and screw refrigeration compressors, along with matched cold room systems, quick-freezing devices and ice making equipment.
We deliver flexible OEM and ODM customization services to cater to the varied demands of global customers. Our products are widely exported to Russia, the United States and the United Arab Emirates. Leveraging solid technical strength, rigorous quality control and competitive pricing, we maintain long-term cooperative relationships with buyers worldwide and enjoy a solid reputation among overseas clients.
|
|
