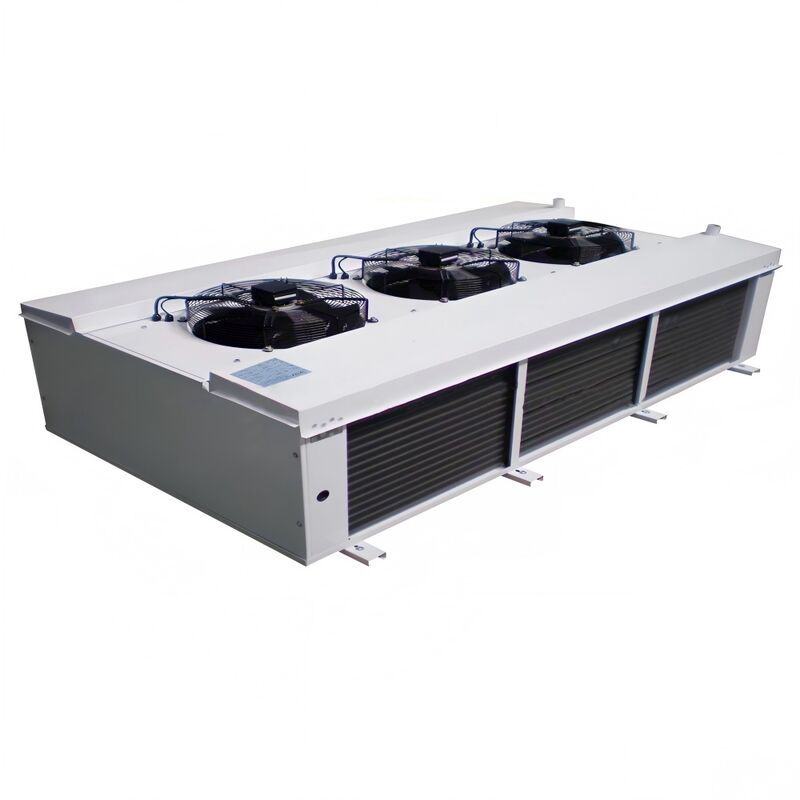

The DSL-28/125 triple fan cold room evaporator unit is a high-performance dual-outlet refrigeration device designed for medium-to-large medium-temperature cold storage of around 125㎡. Ideal for applications including fresh e-commerce regional distribution centers, pre-made food refrigerated warehouses, and large-scale food processing raw material storage rooms.
With a nominal cooling capacity of 27600W and three 500mm high-efficiency fans delivering 3×6500m³/h bidirectional airflow, it achieves wide-range uniform air coverage across long-span warehouses. This effectively reduces temperature differences between the front and rear of the storage space, preventing quality degradation of goods in remote areas.
Long-span medium-temperature cold rooms with high cargo turnover typically face challenges where small-capacity single-outlet equipment cannot cover the full warehouse length, leading to temperature stratification and local over-temperature issues. Frequent cargo loading and unloading also bring continuous heat load impact, accelerating frost accumulation on the coil and reducing overall refrigeration efficiency.
This cold room evaporator unit addresses these challenges with a three-fan dual-air duct design that expands horizontal cold air coverage. Equipped with a split high-power electric defrost system, it effectively copes with frequent heat load fluctuations and maintains stable cooling performance during extended operation.
For installation, this unit features standard universal lifting holes and a compact ceiling structure, adaptable to conventional cold rooms with net heights exceeding 3.5 meters. Only 400-600mm of top maintenance space is required for daily overhaul needs. The inlet and outlet joints are side-reserved, allowing flexible matching with different machine room pipeline layouts without secondary drilling or modification, effectively shortening on-site construction periods. The built-in sloped drain pan follows industry installation standards, ensuring smooth discharge of defrost water without additional on-site leveling.
| Model | DSL-28/125 |
|---|---|
| Nominal Cooling Capacity | 27600 W |
| Heat Exchange Area | 135 ㎡ |
| Tube Volume | 18.5 L |
| Inlet & Outlet Pipe Diameter | φ25 mm / φ40 mm |
| Coil Defrosting Power | 4000 W |
| Water Dish Defrosting Power | 4000 W |
Ruifujie is a reputable modern refrigeration equipment manufacturer with over 20 years of professional experience in the global market. Our complete product line covers scroll, piston, rotor, semi-hermetic and screw refrigeration compressors, as well as supporting cold room systems, quick-freezing equipment and ice making machines.
We provide comprehensive OEM and ODM customization solutions to meet the diverse and personalized needs of customers worldwide. Our products are widely exported to Russia, the United Kingdom and Saudi Arabia. With strong technical strength, strict quality control system and competitive product pricing, we have established long-term stable cooperative relationships with buyers around the world and won wide recognition from overseas clients.
Yes, its three-fan dual-outlet structure can extend the horizontal air supply distance, effectively covering the full length of long and narrow cold rooms. This reduces the temperature difference between the two ends of the warehouse and avoids the need to install multiple small units, saving overall project costs.
This model supports parallel installation of multiple units for larger cold storage spaces. Its unified interface specifications and consistent air outlet direction can be matched with the same set of condensing unit system, which is convenient for overall layout and unified control of large-scale cold storage projects.
Under low-load conditions in transition seasons, the optimized defrost control logic can accurately judge the actual frost formation status, avoid unnecessary frequent defrost actions, reduce temperature fluctuations in the warehouse, and maintain stable operation while lowering daily energy consumption.
We will send you the quotation within 8 hours after receiving detailed parameters including refrigeration capacity, voltage, refrigerant and working conditions.
Yes, we support OEM services including LOGO printing and multi-language nameplate customization for all our refrigeration products.
|
|
