| Brand Name: | Ruifujie |
| Model Number: | DSD-5.3/30 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |

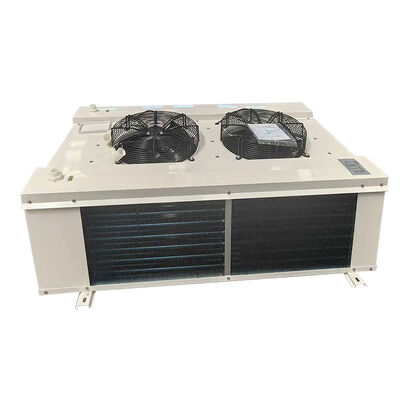

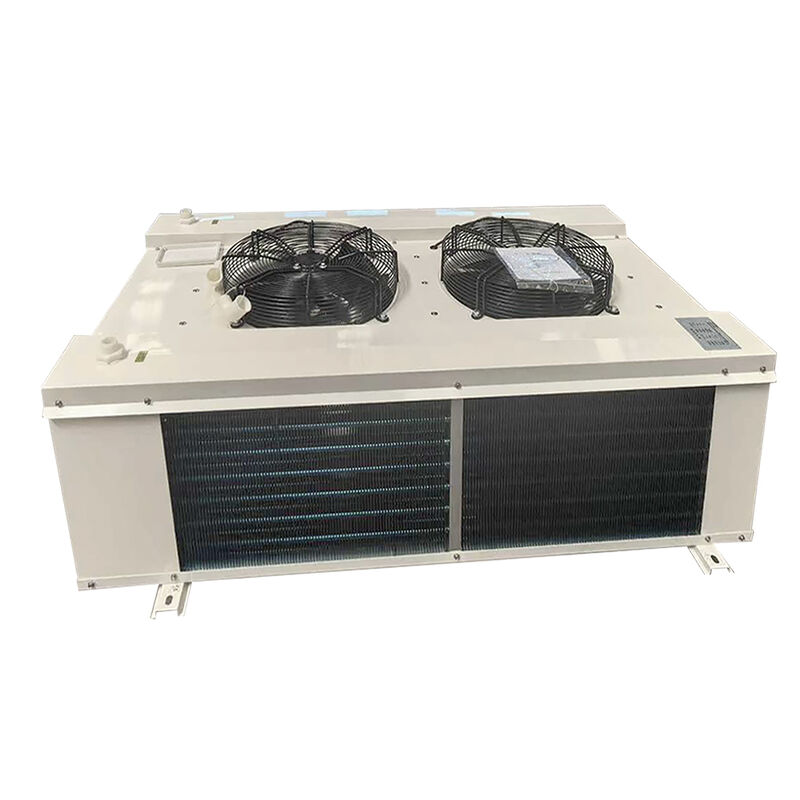

The DSD-5.3/30 compact size cool room evaporator is a light-duty dual-outlet refrigeration unit designed for small cold storage spaces of approximately 30㎡. Ideal for convenience store back-of-house cold rooms, chain restaurant ingredient storage rooms, and small fresh food retail preservation cabinets.
With a nominal cooling capacity of 5300W and two 400mm external rotor fans delivering 2×3400m³/h gentle bidirectional airflow, it achieves uniform temperature control in limited space without strong direct cold blast. This effectively maintains stable storage conditions above 8℃ and reduces dry loss of fresh ingredients.
| Model | DSD-5.3/30 |
|---|---|
| Nominal Cooling Capacity | 5300 W |
| Heat Exchange Area | 31 ㎡ |
| Tube Volume | 7 L |
| Inlet & Outlet Pipe Diameter | φ16 mm / φ25 mm |
| Coil Defrosting Power | 4800 W |
| Water Dish Defrosting Power | 2400 W |
All equipment is professionally packaged to ensure safe transportation and delivery to your location.
Its bidirectional wide-angle air supply can effectively cover both ends of a narrow and long small cold room, reducing temperature differences at the corners and ensuring uniform freshness of ingredients stored in all positions.
Equipped with low-noise external rotor motors and shock-absorbing mounting accessories, it effectively reduces vibration and noise during operation, meeting the environmental requirements of commercial catering and retail scenarios.
The smooth shell and detachable drain pan are easy for daily cleaning. Conventional daily inspection work does not require professional technical background, reducing dependence on professional maintenance personnel.
Samples in stock can be delivered within 3 working days, and bulk orders take 10-15 working days.
We support FOB Shenzhen and EXW trade terms, with settlement in US dollars.
Ruifujie is a professional modern refrigeration equipment manufacturer with over 20 years of in-depth experience in the global cold chain industry. Our full product portfolio covers scroll, piston, rotor, semi-hermetic and screw refrigeration compressors, as well as supporting cold room systems, quick-freezing equipment and ice making machines.
We provide comprehensive OEM and ODM customization services to meet the diversified and personalized demands of customers worldwide. Backed by strong technical strength, strict quality control and competitive pricing, we have established long-term stable cooperative partnerships with buyers across the globe.
|
|
