| Brand Name: | Carrier/Carlyle |
| Model Number: | 06TSA186 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |
Engineered with high-efficiency patented profile rotor geometry, this 75 HP class AC screw compressor delivers a large volumetric displacement of 186 CFM at 60Hz and 155 CFM at 50Hz. Optimized internal clearance gaps minimize gas slip, maintaining peak mass flow for air-cooled central chilling systems.
Equipped with dynamic slide-valve control mechanisms, this unit supports smooth, stepless capacity regulation from 25% to 100%. Precise partial-load Vi optimization matches cooling output directly to instantaneous facility thermal loads, significantly reducing overall power consumption.
Featuring a dedicated 1-3/8 in economizer interface, the Paragon-series compressor integrates seamlessly with subcooling economizer circuits. This capability increases total refrigeration capacity and operational COP without incurring proportional energy increases.
Built with high-durability SKF or NSK rolling bearings and robust thrust bearing assemblies, the internal drive mechanism operates reliably without requiring an external oil pump. An internal check valve stops reverse rotor rotation upon shutdown, while integrated safety relief valves and an external oil filter simplify routine maintenance.
Featuring an electric drive rated for 56 kW (60Hz) and 47 kW (50Hz) input power, the unit supports Star-Delta and Direct-On-Line starting across multi-grid global standards. Real-time winding protection is managed via embedded NTC thermistors paired with optional electronic protection modules (including Kriwan and Paragon control modules).
| Parameter | Value |
|---|---|
| Model | 06TSA186 |
| Displacement (60/50Hz) | 186 / 155 cfm 312 / 258 m³/hr |
| Capacity Control | Stepless Adjustment 25-100% |
| Horse Power (HP) | 75 HP |
| Rated Voltage (V-Hz, A) 06TSA186SJ1D 06TSA186XJ1D |
460V-3-60Hz-116A 400V-3-50Hz-112A 230V-3-60Hz-233A 200V-3-50Hz-213A |
| Weight | 393 KG |
Ruifujie is an established global equipment supplier specializing in heavy-duty HVAC and commercial refrigeration technologies. We deliver a full selection of screw, semi-hermetic, reciprocating, and scroll compressors engineered for central chillers, cold storage, and process cooling applications. Backed by rigorous quality control testing, direct factory pricing, and comprehensive overseas logistics, Ruifujie supports OEM manufacturers, mechanical contractors, and engineering distributors across North America, Europe, the Middle East, and Asia.
Delivering 75 HP output with 186 CFM displacement and an integrated economizer port, this model provides high volumetric throughput and energy efficiency for heavy-duty air-cooled central chilling systems.
On a 460V-60Hz power grid, Star-Delta starting reduces starting inrush current from 685A down to 216A, protecting local transformers and switchgear from severe power surges during startup.
Yes, the compressor materials, internal synthetic lubricants, and seal compounds are optimized for long-term operational compatibility with R134a refrigerant.
Standard stocked models dispatch within 3 business days, while volume OEM order fulfillment is completed within 10 to 15 business days.

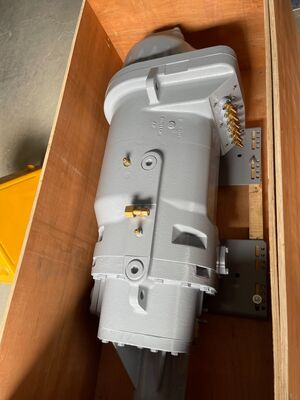

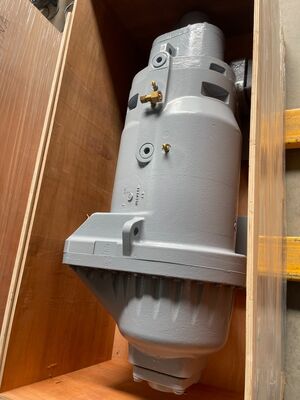

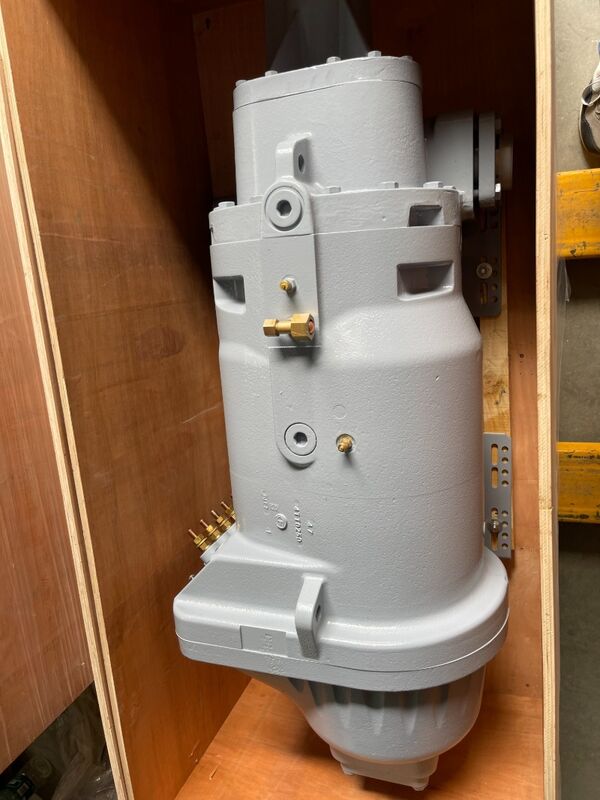

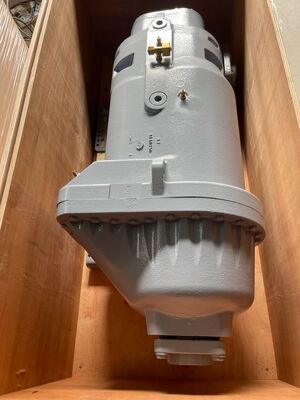

Each compressor undergoes factory pressure testing, is charged with a dry holding gas charge, and is vacuum-sealed inside heavy-duty, reinforced wooden export crates to guard against corrosion and transit vibration.
Ruifujie provides direct factory quotes, spec validation, and model selection support for commercial chiller projects. Contact our engineering sales team today to receive a complete quotation within 8 hours.
|
|
