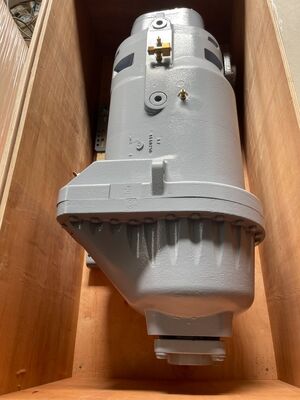

06TSR155 75 HP Screw Type Refrigeration Compressor for Freezing Room
06TSR155 75 HP Screw Type Refrigeration Compressor for Freezing Room
Place of Origin:China
Brand Name:Carrier/Carlyle
Certification:CE
Model Number:06TSR155
Minimum Order Quantity:1
Price:Discussed
Standard Packaging:WOODEN CASE
Delivery Time:1 Month
Payment Terms:T/T,Western Union
Supply Ability:100PC
Product Details
Highlight:
75 HP refrigeration compressor
,screw type freezer compressor
,Carlyle freezing room compressor
Warranty:
1 Year
Application:
Air Conditioner,Cold Room,Freezer,HVAC System
Rated Horse Power:
75 HP
Packing:
Woodcase Packing
Displacement(60/50hz):
155/129 Cfm 260/215 M3/hr
Cooling Type:
Low Temperature
Refrigerant:
R134a/R22/R404A/R407C/R507/R448A/R449A
MOQ:
1 Sets
Product Description
Detailed Specifications & Features
06TSR155 75 HP Screw Type Refrigeration Compressor for Freezing Room
Product Advantages
75 HP Capacity Class for Low-Temperature Freezing
Engineered specifically for low-temperature freezing and commercial cold storage applications utilizing R22, R404A, and R507 refrigerants, this 75 HP nominal class screw type refrigeration compressor delivers a large volumetric displacement of 155 CFM (260 m³/hr) at 60Hz and 129 CFM (215 m³/hr) at 50Hz. Its patented rotor profile geometry minimizes internal gas slip to maintain high mass flow and volumetric efficiency at deep-freezing suction pressures.
Engineered specifically for low-temperature freezing and commercial cold storage applications utilizing R22, R404A, and R507 refrigerants, this 75 HP nominal class screw type refrigeration compressor delivers a large volumetric displacement of 155 CFM (260 m³/hr) at 60Hz and 129 CFM (215 m³/hr) at 50Hz. Its patented rotor profile geometry minimizes internal gas slip to maintain high mass flow and volumetric efficiency at deep-freezing suction pressures.
Precision Stepless Capacity Modulation
Equipped with an advanced slide-valve control mechanism, the compressor provides continuous, stepless capacity regulation from 25% to 100%. Dynamic volume ratio optimization under partial load matches system output to facility thermal load, reducing overall power consumption during duty cycles.
Equipped with an advanced slide-valve control mechanism, the compressor provides continuous, stepless capacity regulation from 25% to 100%. Dynamic volume ratio optimization under partial load matches system output to facility thermal load, reducing overall power consumption during duty cycles.
Factory Economizer Port for Enhanced Deep-Freeze COP
Featuring a standard 1-3/8 in economizer connection, the unit integrates with liquid subcooling economizer circuits. Utilizing the economizer port increases total refrigeration capacity and system COP under low-temperature operating conditions without incurring proportional power increases.
Featuring a standard 1-3/8 in economizer connection, the unit integrates with liquid subcooling economizer circuits. Utilizing the economizer port increases total refrigeration capacity and system COP under low-temperature operating conditions without incurring proportional power increases.
Oil-Pump-Free Drive System & Heavy-Duty Bearings
Built with high-durability SKF or NSK rolling bearings and a heavy-duty thrust bearing assembly, the internal mechanism relies on internal differential pressure for lubrication, eliminating the need for an external oil pump. An internal check valve prevents reverse rotor rotation upon shutdown, while integrated safety relief valves simplify maintenance.
Built with high-durability SKF or NSK rolling bearings and a heavy-duty thrust bearing assembly, the internal mechanism relies on internal differential pressure for lubrication, eliminating the need for an external oil pump. An internal check valve prevents reverse rotor rotation upon shutdown, while integrated safety relief valves simplify maintenance.
Multi-Grid Electrical Compatibility & Motor Thermal Guard
Powered by a heavy-duty electric drive rated for 56 kW (60Hz) and 47 kW (50Hz) input power, the compressor supports Star-Delta and Direct-On-Line starting across standard global utility voltages. Embedded NTC thermistors paired with optional electronic modules (Kriwan or Paragon) provide continuous thermal and electrical overload supervision.
Powered by a heavy-duty electric drive rated for 56 kW (60Hz) and 47 kW (50Hz) input power, the compressor supports Star-Delta and Direct-On-Line starting across standard global utility voltages. Embedded NTC thermistors paired with optional electronic modules (Kriwan or Paragon) provide continuous thermal and electrical overload supervision.
Standard & Optional Accessories:
- Standard: Terminal box, oil system components, motor protection device, capacity control device, stop valve
- Optional: Paragon control module / Kriwan protection module, oil separator, flanges, economizer, oil cooler, high-temperature expansion valve

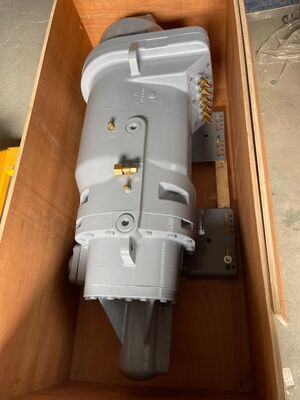

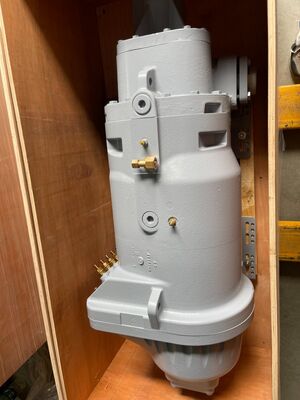

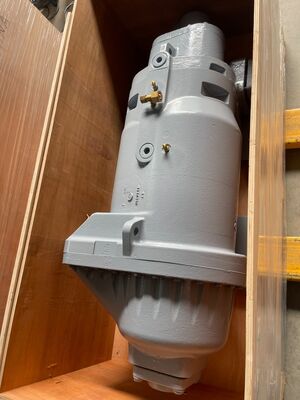

Product Images
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 06TSR155 |
| Displacement (60/50Hz) | 155 / 129 cfm 260 / 215 m³/hr |
| Capacity Control | Stepless Adjustment 25-100% |
| Horse Power (HP) | 75 HP |
| Rated Voltage (V-Hz, A) 06TSR155SJ3D 06TSR155XJ3D |
460V-3-60Hz-108A 400V-3-50Hz-119A 230V-3-60Hz-217A 200V-3-50Hz-227A |
| Weight (KG) | 376 KG |
Company Profile
Ruifujie is an international supplier of commercial HVAC machinery and industrial refrigeration equipment. We specialize in providing high-efficiency semi-hermetic screw, scroll, and reciprocating compressors designed for chillers, cold chain storage, and commercial air conditioning systems. Backed by 100% factory run testing, flexible trade terms, and expedited air or sea freight logistics, Ruifujie delivers replacement units and custom OEM hardware to engineering contractors and distributors worldwide.
Packaging and Shipping
Frequently Asked Questions
Q1: What applications and refrigerants are best suited for the 06TSR155 compressor?
A1: The 06TSR155 is engineered specifically for low-temperature freezing, blast chillers, and commercial cold storage utilizing R22, R404A, or R507 refrigerants.
Q2: What is the nominal horsepower rating and motor power requirement for this model?
A2: The 06TSR155 belongs to the 75 HP compressor nominal capacity class, with a rated motor input power of 56 kW at 60Hz and 47 kW at 50Hz.
Q3: How does the integrated economizer connection benefit low-temperature freezing?
A3: Connecting an economizer loop via the 1-3/8 in port provides additional liquid subcooling, significantly boosting net cooling capacity and system COP at low evaporating temperatures.
Q4: Does the 06TSR155 require an external oil pump?
A4: No, the precision SKF/NSK bearing design and internal differential pressure lubrication operate reliably without an external oil pump.
Q5: What standard lead times apply for sample units and bulk shipments?
A5: Standard in-stock replacement units dispatch within 3 business days, while customized OEM configurations or containerized shipments dispatch within 10 to 15 business days.
