06TSR186 75HP Semi Hermetic Screw Type Compressor for Low Temp Cold Room
06TSR186 75HP Semi Hermetic Screw Type Compressor for Low Temp Cold Room
Place of Origin:China
Brand Name:Carrier/Carlyle
Certification:CE
Model Number:06TSR186
Minimum Order Quantity:1
Price:Discussed
Standard Packaging:WOODEN CASE
Delivery Time:1 Month
Payment Terms:T/T,Western Union
Supply Ability:100PC
Product Details
Highlight:
75HP semi hermetic screw compressor
,low temperature cold room compressor
,Carlyle semi hermetic compressor
MOQ:
1 Sets
Application:
Air Conditioner,Cold Room,Freezer,HVAC System
Rated Horse Power:
75 HP
Displacement(60/50hz):
186/155 Cfm 312/258 M3/hr
Refrigerant:
R134a/R22/R404A/R407C/R507/R448A/R449A
Cooling Type:
Low Temperature
Warranty:
1 Year
Packing:
Woodcase Packing
Product Description
Detailed Specifications & Features
06TSR186 75HP Semi Hermetic Screw Type Compressor for Low Temp Cold Room
Product Advantages
75 HP Capacity Class for Low-Temperature Freezing
Engineered specifically for low-temperature freezing, blast chillers, and commercial cold storage applications utilizing R22, R404A, and R507 refrigerants, this 75 HP nominal class semi hermetic screw type compressor delivers an impressive volumetric displacement of 186 CFM (312 m3/hr) at 60Hz and 155 CFM (258 m3/hr) at 50Hz. Its patented rotor profile geometry minimizes gas slip, preserving high mass flow and volumetric efficiency at deep-freezing suction pressures.
Engineered specifically for low-temperature freezing, blast chillers, and commercial cold storage applications utilizing R22, R404A, and R507 refrigerants, this 75 HP nominal class semi hermetic screw type compressor delivers an impressive volumetric displacement of 186 CFM (312 m3/hr) at 60Hz and 155 CFM (258 m3/hr) at 50Hz. Its patented rotor profile geometry minimizes gas slip, preserving high mass flow and volumetric efficiency at deep-freezing suction pressures.
Precision Stepless Capacity Modulation
Equipped with a dynamic slide-valve control mechanism, the compressor provides continuous, stepless capacity regulation from 25% to 100%. Dynamic volume ratio optimization under partial load matches cooling output directly to instantaneous facility thermal demand, optimizing energy efficiency during long freezing cycles.
Equipped with a dynamic slide-valve control mechanism, the compressor provides continuous, stepless capacity regulation from 25% to 100%. Dynamic volume ratio optimization under partial load matches cooling output directly to instantaneous facility thermal demand, optimizing energy efficiency during long freezing cycles.
Factory Economizer Port for Peak Subcooling COP
Featuring a standard 1-3/8 in economizer connection, the unit integrates with liquid subcooling economizer circuits. Utilizing the economizer port substantially boosts total refrigeration capacity and system COP under severe low-temperature operating conditions without requiring proportional energy increases.
Featuring a standard 1-3/8 in economizer connection, the unit integrates with liquid subcooling economizer circuits. Utilizing the economizer port substantially boosts total refrigeration capacity and system COP under severe low-temperature operating conditions without requiring proportional energy increases.
Oil-Pump-Free Differential Lubrication & Heavy-Duty Bearings
Built with high-durability SKF or NSK rolling bearings and a reinforced thrust bearing assembly, the internal mechanism relies on internal pressure differentials for continuous oil circulation, eliminating the need for an external oil pump. An internal check valve stops reverse rotor rotation upon shutdown, while integrated safety valves simplify system maintenance.
Built with high-durability SKF or NSK rolling bearings and a reinforced thrust bearing assembly, the internal mechanism relies on internal pressure differentials for continuous oil circulation, eliminating the need for an external oil pump. An internal check valve stops reverse rotor rotation upon shutdown, while integrated safety valves simplify system maintenance.
Multi-Grid Electrical Compatibility & Motor Thermal Guard
Powered by a heavy-duty electric drive rated for 56 kW (60Hz) and 47 kW (50Hz) input power, the compressor supports Star-Delta and Direct-On-Line starting across standard global utility voltages. Embedded NTC thermistors paired with optional electronic modules (Kriwan or Paragon) provide continuous protection against thermal and electrical overload.
Powered by a heavy-duty electric drive rated for 56 kW (60Hz) and 47 kW (50Hz) input power, the compressor supports Star-Delta and Direct-On-Line starting across standard global utility voltages. Embedded NTC thermistors paired with optional electronic modules (Kriwan or Paragon) provide continuous protection against thermal and electrical overload.
Standard & Optional Accessories:
- Standard: Terminal box, oil system components, motor protection device, capacity control device, stop valve
- Optional: Paragon control module / Kriwan protection module, oil separator, flanges, economizer, oil cooler, high-temperature expansion valve

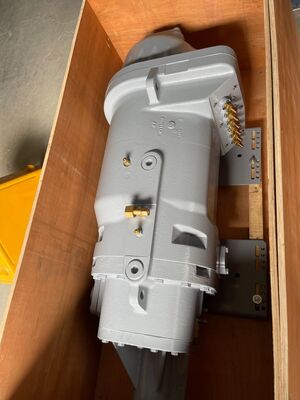

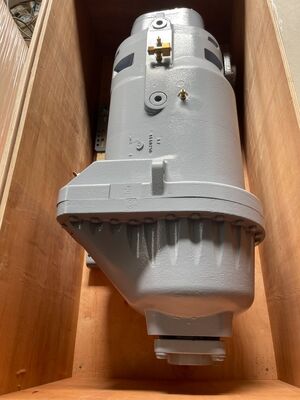

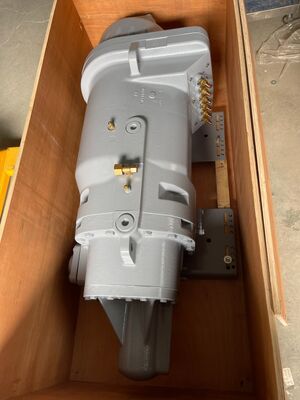

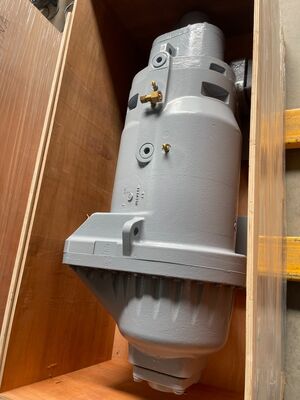

Product Images
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 06TSR186 |
| Displacement (60/50Hz) | 186 / 155 cfm 312 / 258 m3/hr |
| Capacity Control | Stepless Adjustment 25-100% |
| Horse Power (HP) | 75HP |
| Rated Voltage (V-Hz, A) 06TSR186SJ3D 06TSR186XJ3D |
460V-3-60Hz-124A 400V-3-50Hz-120A 230V-3-60Hz-249A 200V-3-50Hz-227A |
| Weight (KG) | 376KG |
Company Profile
Ruifujie is an international supplier of commercial HVAC machinery and industrial refrigeration equipment. We specialize in providing high-efficiency semi-hermetic screw, scroll, and reciprocating compressors designed for chillers, cold chain storage, and commercial air conditioning systems. Backed by 100% factory run testing, flexible trade terms, and expedited air or sea freight logistics, Ruifujie delivers replacement units and custom OEM hardware to engineering contractors and distributors worldwide.
Packaging and Shipping
Frequently Asked Questions
Q1: What refrigeration applications are best suited for the 06TSR186 compressor?
A1: The 06TSR186 is designed specifically for low-temperature industrial freezing, blast chillers, and large commercial cold storage facilities utilizing R22, R404A, or R507 refrigerants.
Q2: What is the displacement and capacity of the 06TSR186 model?
A2: Belonging to the 75 HP compressor nominal capacity class, it provides 186 CFM (312 m3/hr) displacement at 60Hz (56 kW motor input) and 155 CFM (258 m3/hr) at 50Hz (47 kW motor input).
Q3: How does the economizer circuit enhance freezing system performance?
A3: Connecting an economizer loop via the 1-3/8 in port provides additional liquid subcooling, significantly increasing refrigeration throughput and COP at deep evaporating temperatures.
Q4: Does the 06TSR186 require an external oil pump?
A4: No, its advanced SKF/NSK bearing design and internal differential pressure oil management operate reliably without an external oil pump.
Q5: What are the standard dispatch lead times for sample and container orders?
A5: In-stock replacement units ship within 3 business days, while bulk OEM configurations or container orders dispatch within 10 to 15 business days.
Get Quotation for the 06TSR186 Compressor
Ruifujie offers fast spec verification, model cross-referencing, and factory-direct pricing for commercial refrigeration projects. Contact our technical sales team today to receive your custom quote within 8 hours.
