Product Details:
Payment & Shipping Terms:
|
Type:: | Water Chiller | Model Number:: | SPB06WL |
---|---|---|---|
Compressor Model: | 4FES-5Y | Place Of Origin: | China (Mainland) |
Refrigerant: | R404 | Compressor: | Bizter Semi-hermetic Compresor |
Evaporator Type: | Shell And Tube | Customized: | Yes |
Power Supply: | 380V 3PH 50HZ | Input Power: | 4.04KW |
Cooling Capacity: | 11.33KW | ||
Highlight: | ac condenser unit,air cooled condensing unit |

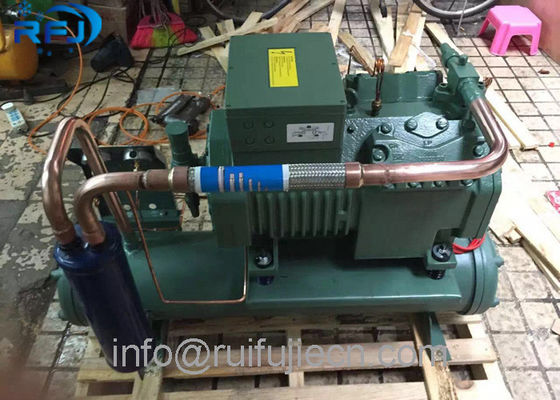

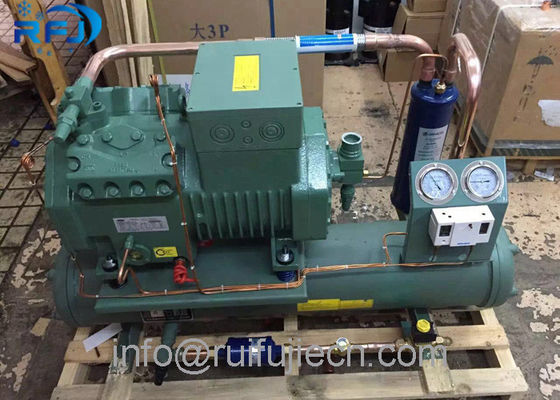

Water Cooled 4FES-5Y Semi Hermetic Compressor Condensing Unit For Cold Room 4FC-5.2Y
Standard Configuration
cold room condensing unit, Compressor, crankcase heater,oil pressure safety switch(except octagon compressor),shell and tube type condenser,dryer fiter,gauge panel,B5.2 refrigeration oil,shielding gas, low-temperature compressor with cooling fan,double-stage compressor with intercooler.
High quality components of world famous brands;
Effective shell and tube type condenser which enables high energy efficiency ratio;
water cooled packaged unit;
Compact structure; sturdy and durable; convenient to install;
Widely applicable and can be applied to refrigerants R22,R134a,R404a,R507a,etc.
Export packaging: according to the size of products
Carton and free-fumigation wooden pallet
Complete free-fumigation wooden case
Shipping: will be effected 25-30 days after placing an order.
Condensing Unit model | Compressor Model | Installation Size(mm) | Installation bore | Overall Size(mm) | |||
L(D) | W(E) | L(A) | W(B) | H(C) | |||
SPB03WM | 2DES-3Y | 780 | 300 | Φ18 | 1010 | 350 | 720 |
SPB04WM | 2CES-4Y | 780 | 300 | 1010 | 350 | 720 | |
SPB05WM | 4FES-5Y | 850 | 300 | 1080 | 350 | 760 | |
SPB06WM | 4EES-6Y | 850 | 300 | 1080 | 350 | 760 | |
SPB07WM | 4DES-7Y | 890 | 300 | 1120 | 350 | 800 | |
SPB09WM | 4CES-9Y | 890 | 300 | 1120 | 350 | 800 | |
SPB10WM | 4VES-10Y | 990 | 350 | 1220 | 400 | 850 | |
SPB12WM | 4TES-12Y | 990 | 350 | 1220 | 400 | 850 | |
SPB15WM | 4PES-15Y | 990 | 350 | 1220 | 400 | 850 | |
SPB20WM | 4NES-20Y | 990 | 350 | 1220 | 400 | 850 | |
SPB25WM | 4HE-25Y | 1400 | 350 | 1620 | 400 | 950 | |
SPB30WM | 4GE-30Y | 1400 | 350 | 1620 | 400 | 950 | |
SPB35WM | 6HE-35Y | 1400 | 350 | 1620 | 400 | 950 | |
SPB40WM | 6GE-40Y | 1680 | 350 | 1900 | 400 | 1000 | |
SPB50WM | 6FE-50Y | 1680 | 350 | 1900 | 400 |
1000
|
1 One year warranty for the complete machine and 1 year for compressors;
2. Pre-sale service:
Customer’s operation condition analysis according to the information provided;
Equipment selection and consultation;
3. After sales service:
Compressor refrigeration condensing unit and racks designing and engineering drawing
Installation guidance and technical proposal ;
Testing of equipment in customer site, engineer available overseas;
Not only we have our own brand , but also we supply the OEM service to our customers. To satisfy with your need,we can print your company Logo or design on the units or the other parts
At China Wholesale, we can handle your large drive-in refrigerated warehouse projects from start to finish. We have a vast inventory of refrigerant equipment to meet your needs and our nationwide installation teams are ready and waiting to do the job. We offer:
• Top quality used or new equipment for any size refrigerated building.
• Experienced crews to build your box from walls to ceiling.
• Experience in special needs such as insulated floors, refrigeration parts.
• Turnkey projects available.
• Custom sizes and design services.
• We will go anywhere to do the job.
Whether you are a food distributor, farmer, pharmaceutical company, or cold storage company, we can handle your project from start to finish. Contact our sales team at (86) 0755-25902250 for more information.
