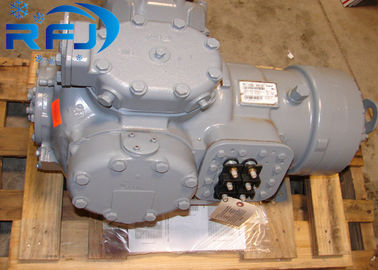

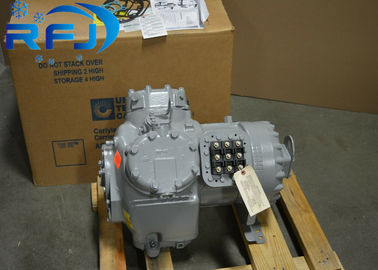

High Capacities gray Carlyle Compressor R404 Carrier Model 06CC228 Long Lifespan
compressor for air conditioner
,twin screw compressor
High Capacities gray Carlyle Compressor R404 Carrier Model 06CC228 Long Lifespan
Features and Benefits
• Very high capacities and efficiencies when compared to a single-stage, low-temperature compressor
• Very low compression ratios for low temperature refrigeration
• Two-stage booster performance in a single-compressor body
• Subcooling allows for smaller system refrigerant lines and therefore a smaller refrigerant charge
• Simple application of subcooling
• Eliminates compressor short cycling as capacity remains stable over a wide range of head pressures
• No separate subcooling rack or compressor needed
| brand | carrier |
| model | 06CC228 |
| Horse power | 6 1/2 |
| Refrigerant | R502/R404A/R507/R12/R134A/R22 |
| Voltage | 380-420V |
| Oil charge(Pints) | 9.5 |
| TYPE | reciprocating two stage compressor |
| MOQ | 1 |
| packing | wooden case |
| weight(kg) | 150 |
Carlyle 06cc series ompound cooling comprsoor
| CARRIER/ CARLYLE | MOTOR Size | DISPLACEMENT AT 1750 RPM | NO.OFCYL | BORE | STROKE | OIL CHARGE | NETWEIGHT | BODY SIZE | ||||||||
| MODEL NUMBER | HP | KW | CFM | L/M | CFH | L/H(1,000) | in. | mm | in. | mm | Pints | Liters | Lb | Kg | ||
| 06CC017 | 5 | 3.7 | 15.9 | 450 | 954 | 27.01 | 6 | 2 | 50.8 | 1 1/4 | 31.7 | 9.5 | 4.5 | 330 | 150 | D |
| 06CC125 | 6 1/2 | 4.9 | 23.9 | 677 | 1435 | 40.6 | 6 | 2 | 50.8 | 1 1/4 | 31.8 | 9.5 | 4.5 | 330 | 150 | D |
| 06CC228 | 6 1/2 | 5.6 | 28 | 793 | 1680 | 47.57 | 6 | 2 | 50.8 | 1 15/32 | 37.3 | 9.5 | 4.5 | 340 | 154 | D |
| 06CC337 | 10 | 7.5 | 37.1 | 1050 | 2225 | 63.03 | 6 | 2 | 50.8 | 1 15/16 | 49.2 | 9.5 | 4.5 | 345 | 156 | D |
| 06CC550 | 15 | 11.2 | 50.3 | 1424 | 3016 | 85.45 | 6 | 2 11/16 | 68.3 | 1 63/64 | 50.4 | 19 | 9 | 545 | 247 | E |
| 06CC665 | 20 | 14.9 | 68.3 | 1934 | 4096 | 116 | 6 | 2 11/16 | 68.3 | 1 63/64 | 50.4 | 19 | 9 | 555 | 252 | E |
| 06CC675 | 20 | 14.9 | 75.4 | 2135 | 4524 | 128.1 | 6 | 2 11/16 | 68.3 | 2 3/16 | 55.6 | 19 | 9 | 555 | 252 | E |
| 06CC899 | 30 | 22.4 | 99 | 2803 | 5940 | 168.2 | 6 | 2 11/16 | 68.3 | 2 7/8 | 73 | 19 | 9 | 580 | 263 | E |
Main compressor lines are:
· compressors
· performer compressors: SM, SZ, SH SERIES
· commercial compressors: FR, SC SERIES
· compressors: VR, ZR, ZB, ZH SERIES
· Maneurop piston compressors:MT, MTZ NTZ, MPZ SERIES
Also. original valves, controls and selected parts:
· TE, TDE, TGE, PHT SERIES TERMOSTATIC EXPANSION VALVES
· ETS SERIES EXPANSION VAVLES
· EVR SERIES ECPANSION VAVLES AND
· KP1,KP5,KP15 SERIES PRESSURE CONTROLS
· DCL DML LIQUID LINE FILTER DRIERS
Q&A:
(1)Q:What is the packaging and shipping method?
A: By Sea: Export wooden package,with refrigerant oil .
By Air: Full-sealed wooden package, without refrigerant oil.
(2)Q:Which port does you ship from?
A:Guangzhou/Shenzhen.
(3)Q:How long is the warranty period for this product?
A: 1 year.
