208-230v 20HP Twin Screw Compressor , R-507/404A Compressor For Air Conditioner
reciprocating refrigeration compressor
,twin screw compressor
20 HP Low-temperature Carlyle Compressor R-507/404A Carrier Model 06ER165
Features and Benefits

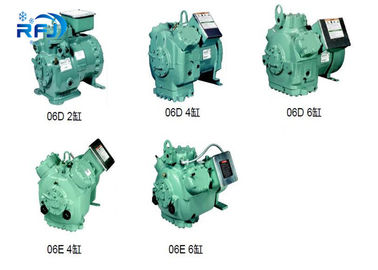

1. Carlyle 06D/E semi-hermetic compressors are ideally suited for commercial refrigeration, air conditioning, process cooling, and environmental chambers.
2. They are extremely flexible and may be used with many of the new HFC refrigerants such as R-507, R-404A, and R-134a, in addition to the conventional refrigerants (R-12, R-22, and R-502).
3. The compressors may be operated at 50 or 60 hertz and are CSA (Canadian Standards Association),UL (Underwriters’ Laboratories), and ISO 9002 approved.
| brand | carrier |
| model | 06ER165 |
| Horse power | 20 |
| Refrigerant | R-507/404A |
| Voltage | 208-230v |
| Oil charge(liters) | 8.99 |
| TYPE | Refrigeration Compressor |
| MOQ | 1 |
| packing | wooden case |
| weight(kg) | 218 |
| MODEL NUMBER | HP | CMM@1750 rpm | Number of cylindres | Bore(Inches) | Stroke(Inches) | Oil charge(Pints) | Net weight(LBS) | RLA | LRA | Cooling capacity(60hz) |
| 06ER150 | 15 | 50.3 | 4 | 2~11/16 | 2~3/16 | 14 | 430 | 76 | 283 | 14.55 |
| 06ER165 | 20 | 68.3 | 6 | 2~11/16 | 2~63/64 | 19 | 480 | 90 | 345 | 18.55 |
| 06ER175 | 20 | 75.4 | 6 | 2~11/16 | 2~3/16 | 19 | 490 | 90 | 345 | 21.51 |
| 06ER099 | 30 | 99 | 6 | 2~11/16 | 2~7/8 | 19 | 500 | 130 | 506 | 29.99 |
· performer compressors: SM, SZ, SH SERIES
· commercial compressors: FR, SC SERIES
· compressors: VR, ZR, ZB, ZH SERIES
· Maneurop piston compressors:MT, MTZ NTZ, MPZ SERIES
· TE, TDE, TGE, PHT SERIES TERMOSTATIC EXPANSION VALVES
· ETS SERIES EXPANSION VAVLES
· EVR SERIES ECPANSION VAVLES AND
· KP1,KP5,KP15 SERIES PRESSURE CONTROLS
· DCL DML LIQUID LINE FILTER DRIERS
(1)Q: What is the packaging and shipping method?
A: By Sea: Export wooden package,with refrigerant oil .
By Air: Full-sealed wooden package, without refrigerant oil.
(2)Q: Which port does you ship from?
A:G uangzhou/Shenzhen.
(3)Q: How long is the warranty period for this product?
A: 1 year.
