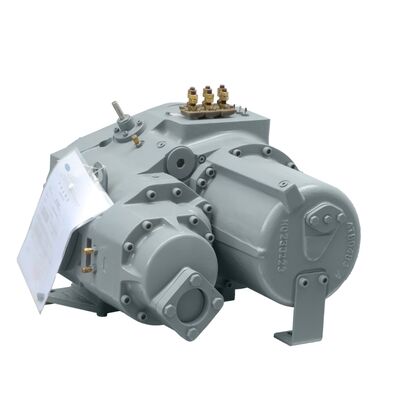

06NA2146S7NA-A00 75HP R134a AC Screw Refrigeration Compressor
06NA2146S7NA-A00 75HP R134a AC Screw Refrigeration Compressor
Place of Origin:China
Brand Name:Carrier/Carlyle
Certification:CE
Model Number:06NA2146S7NA-A00
Minimum Order Quantity:1
Price:Discussed
Standard Packaging:WOODEN CASE
Delivery Time:1 Month
Payment Terms:T/T,Western Union
Supply Ability:100PC
Product Details
Highlight:
75HP R134a AC screw compressor
,Carlyle refrigeration compressor with warranty
,R134a screw compressor for AC systems
Rated Horse Power:
75HP
Refrigerant:
R134a
Displacement(60/50hz):
146CFM 203m3/s
Cooling Type:
Air Cooled
Application:
Air Conditioner,Cold Room,Freezer, HVAC System
Warranty:
1 Year
Packing:
Woodcase Packing
MOQ:
1Sets
Product Description
Detailed Specifications & Features
06NA2146S7NA-A00 75HP R134a AC Screw Refrigeration Compressor
Product Advantages
Patented Rotor Design & High-Efficiency Geometry
Equipped with a patented profile rotor geometry, this screw refrigeration compressor delivers optimized volumetric efficiency and reduced internal leakage gaps. The built-in speed-increasing gear enhances rotor velocity, driving superior performance across commercial HVAC and industrial chiller applications.
Equipped with a patented profile rotor geometry, this screw refrigeration compressor delivers optimized volumetric efficiency and reduced internal leakage gaps. The built-in speed-increasing gear enhances rotor velocity, driving superior performance across commercial HVAC and industrial chiller applications.
Three-Stage Capacity Control (100%-66%-33%)
Featuring a dynamic load matching mechanism controlled via dual solenoid valves, this screw refrigeration compressor supports three-stage unloading (100%, 66%, and 33%). This allows precise capacity regulation under varying thermal loads, reducing operational energy costs and ensuring system stability.
Featuring a dynamic load matching mechanism controlled via dual solenoid valves, this screw refrigeration compressor supports three-stage unloading (100%, 66%, and 33%). This allows precise capacity regulation under varying thermal loads, reducing operational energy costs and ensuring system stability.
Robust Mechanical Engineering & Heavy-Duty Bearings
Built with high-precision SKF or NSK rolling bearings and reinforced thrust bearings, the mechanical assembly handles continuous axial loads in heavy-duty screw refrigeration compressor installations. The integrated internal check valve prevents reverse rotation at shutdown, while an internal oil filter, safety valve, and muffler minimize operational noise and protect internal components against contamination.
Built with high-precision SKF or NSK rolling bearings and reinforced thrust bearings, the mechanical assembly handles continuous axial loads in heavy-duty screw refrigeration compressor installations. The integrated internal check valve prevents reverse rotation at shutdown, while an internal oil filter, safety valve, and muffler minimize operational noise and protect internal components against contamination.
High-Strength Motor with Integrated Thermal Protection
Designed for universal voltage adaptability, the motor supports both Star-Delta (Y-Δ) and Direct-On-Line (DOL) startup modes. It features an integrated NTC thermistor sensor for direct winding protection, high-grade suction strainers, and precise slide fits to maintain long-term electrical reliability.
Designed for universal voltage adaptability, the motor supports both Star-Delta (Y-Δ) and Direct-On-Line (DOL) startup modes. It features an integrated NTC thermistor sensor for direct winding protection, high-grade suction strainers, and precise slide fits to maintain long-term electrical reliability.
Eco-Friendly R134a Compatibility & Economizer Readiness
Engineered specifically for eco-friendly R134a refrigerant, the unit operates efficiently in both air-cooled and water-cooled systems. Supporting economizer integration, it maximizes cooling output across various working conditions with full factory reliability.
Engineered specifically for eco-friendly R134a refrigerant, the unit operates efficiently in both air-cooled and water-cooled systems. Supporting economizer integration, it maximizes cooling output across various working conditions with full factory reliability.
Optional Accessories
- Oil system components (including oil pump, etc.)
- Oil separator
- Unloading device
- Economizer
- Stop valves
- Suction flange
- Mounting bolts

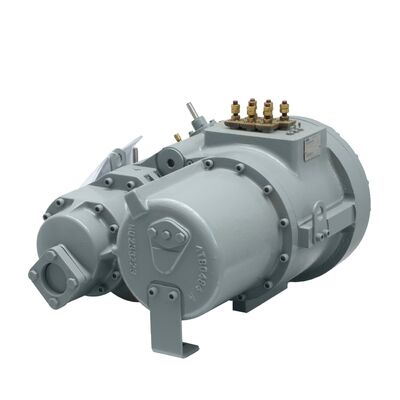

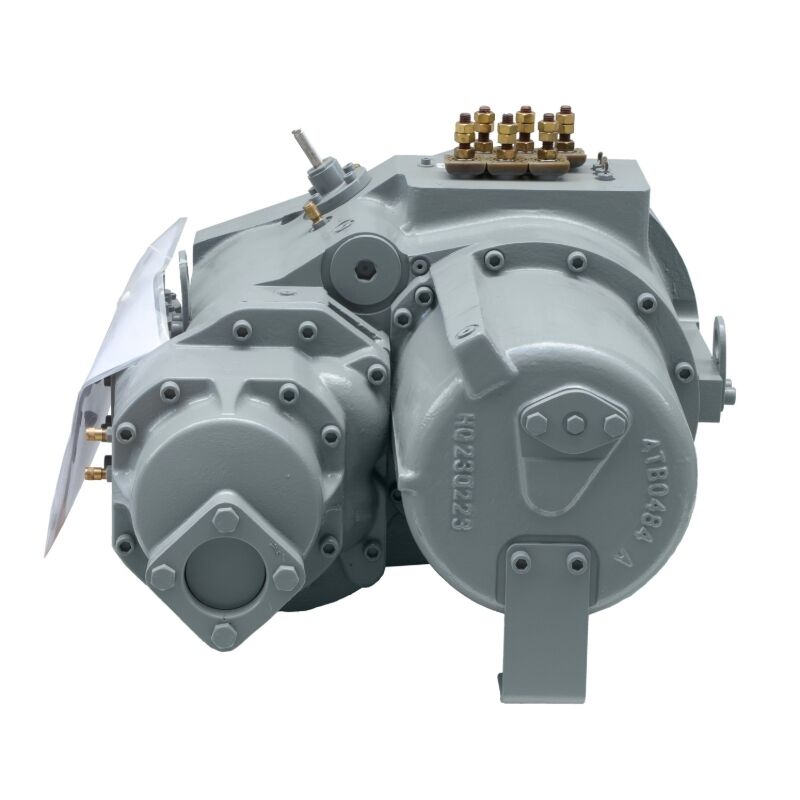

Product Images
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 06NA2146S7NA-A00 |
| Displacement(60/50hz) | 146CFM 203 m3/s |
| Economizer(Y/N) | N |
| Horse Power (HP) | 75HP |
| Rated Voltage(V-Hz, A) | 460V-60Hz-91.9A 400V-50Hz-90.1A |
| Weight(KG) | 380KG |
Company Profile

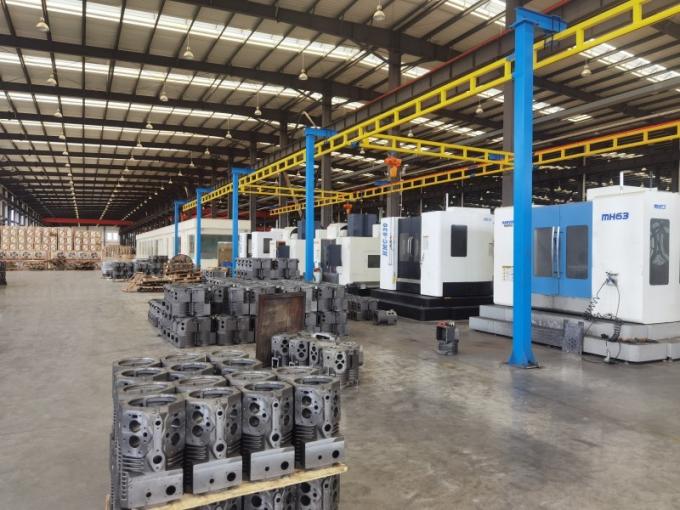

Ruifujie is a modern, large-scale refrigeration equipment company with over 20 years of experience in the global HVAC and refrigeration industry. We offer a comprehensive product catalog including scroll, reciprocating, rotary, semi-hermetic, and screw compressors, alongside cold storage units, quick-freezing equipment, and ice-making machines. Supported by complete OEM/ODM customization capabilities and strong technical expertise, Ruifujie exports high-quality refrigeration hardware to international buyers across the United States, United Kingdom, United Arab Emirates, Saudi Arabia, Russia, and other global markets.
Packaging and Shipping
Frequently Asked Questions
Q1: What refrigerants and system types are compatible with the 06NA2146S7NA-A00 screw refrigeration compressor?
A1: This model is optimized for eco-friendly R134a refrigerant and is designed to operate seamlessly in both air-cooled and water-cooled chiller systems across commercial and industrial refrigeration projects.
Q2: How does the three-stage capacity control work on this screw compressor?
A2: The capacity regulation system utilizes dual solenoid valves to adjust output between 100%, 66%, and 33% load steps, enabling accurate load matching and improved system energy efficiency under partial load conditions.
Q3: What motor startup methods does this screw compressor support?
A3: The high-strength motor supports both Star-Delta (Y-Δ) conversion starting and Direct-On-Line (DOL) starting, equipped with built-in NTC thermistor sensors for thermal protection.
Q4: What is your standard lead time for order fulfillment?
A4: In-stock samples or standard units ship within 3 business days, while complete bulk production orders are typically fulfilled within 10 to 15 business days.
Q5: What are the primary trade and shipping terms available for overseas orders?
A5: We offer FOB Shenzhen or EXW trade terms settled in USD. Equipment is packed in robust export wooden cases, shipped with refrigerant for sea freight and without refrigerant for air freight.
Request a Custom Quote for Your Refrigeration Project
Ruifujie provides full-category supply capabilities and custom technical solutions tailored to your system requirements. Contact our engineering team today to receive a competitive quotation within 8 hours.
To help us serve you faster, please include your required Model (06NA2146S7NA-A00), Order Quantity, Operating Voltage/Frequency, Target Refrigerant, and Project Operating Conditions in your inquiry.
